Product Information

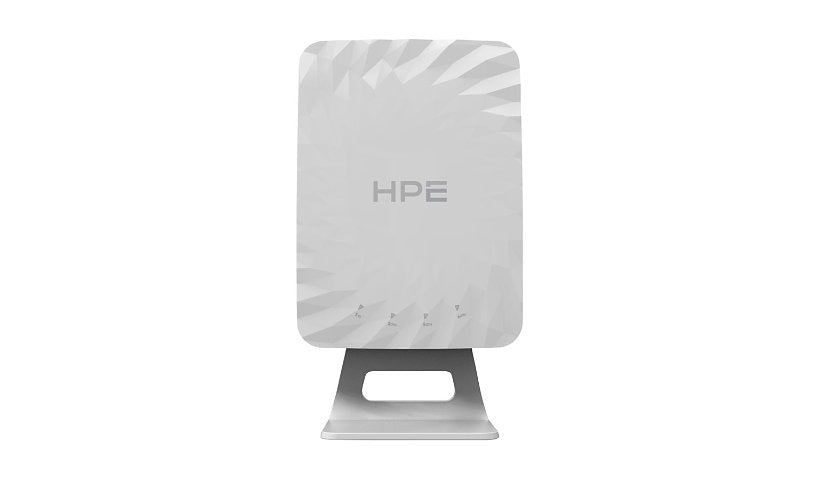

The HPE Networking AP-723H (S6Q80A, US) is a dual platform Wi-Fi 7 hospitality access point for hotel rooms and small offices, supporting up to 400 associated clients on 2.4, 5 and 6 GHz. It has a 2.5G uplink, two Gigabit ports, USB, a micro-USB console, Bluetooth 5.0 and Zigbee, and is PoE+ powered. The power adapter is not included.
Key Features
- Wi-Fi 7 tri-band, 2x2
- Up to 400 clients
- 2.5G uplink + 2 x Gigabit ports
- USB, micro-USB console
- Bluetooth 5.0, Zigbee
- PoE+ powered
Product Information
Brand: HPE
Manufacturer: Aruba
Product Line: HPE Networking
Model: AP-723H (US) Dual Platform
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: Bluetooth 5.0, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n
Encryption: Opportunistic Wireless Encryption (OWE), Simultaneous Authentication of Equals (SAE), WPA2, WPA3-Enterprise
Line Coding Format: 1024 QAM, 16 QAM, 256 QAM, 4096 QAM, 64 QAM, BPSK, QPSK
Capacity: Associated client devices per radio: up to 400, BSSIDs per radio: 16
Wireless LAN: 802.11a/b/g/n/ac/ax/be, Bluetooth 5.0, ZigBee
Network Band: 2.4 GHz, 5 GHz, 6 GHz
Spread Spectrum Method: DSSS, OFDM, OFDMA
Network Device: Maximum data rate (2.4 GHz): 344 Mbps, Maximum data rate (5 GHz): 1.4 Gbps, Maximum data rate (6 GHz): 2.8 Gbps
IoT Communications Technology: Bluetooth Low Energy (LE), Zigbee
Internet of Things (IoT) Compatible: Yes
Antenna Form Factor: Internal
Directivity: Directional
Features: 2x2 MIMO technology, Advanced Cellular Coexistence (ACC), Advanced IoT Coexistence (AIC), Auto-uplink (auto MDI/MDI-X), Automatic thermal shutdown, Cyclic Delay Diversity (CDD), Cyclic shift diversity (CSD), DFS support, Intelligent Power Monitoring (IPM), Low Density Parity Check (LDPC), Network Access Control (NAC), Packet aggregation A-MPDU, Packet aggregation A-MSDU, PoE Class 3, PoE Class 4, Recovery function, Reset button, Security slot (Kensington security lock compatible), Space Time Blocking Code (STBC), SU-MIMO technology, Target Wake Time (TWT), Transmit Beam-forming (TxBF) ready
Edition: Hospitality
Connectivity
Interface Provided: 1 x 10/100/1000/2500Base-T - RJ-45, 1 x console - micro-USB, 1 x USB 2.0 (host) - Type A, 2 x 10/100/1000Base-T - RJ-45
Power Over Ethernet (PoE): PoE+
Power
Device Type: External power adapter (not included)
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 5 - 95% RH
MTBF: 500,000 Hours
Ruggedized Design: Indoor
Physical Characteristics
Form Factor: Desktop
Status Indicators: 2.4/5/6 GHz, Power, Status
Dimensions and Weight
Height: 7.1 inch
Width: 5.1 inch
Depth: 1.3 inch
Weight: 16.33 ounce
Certifications and Listing
Compliant Standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, Wi-Fi CERTIFIED 7
Compliant Standards: EN 60601-1-1, EN 60601-1-2, ETS 300 019 Class 3.1, FCC, IEC/EN 62368-1, ISED, LVD 2014/35/EU
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
Service Activation: No
