Product Information

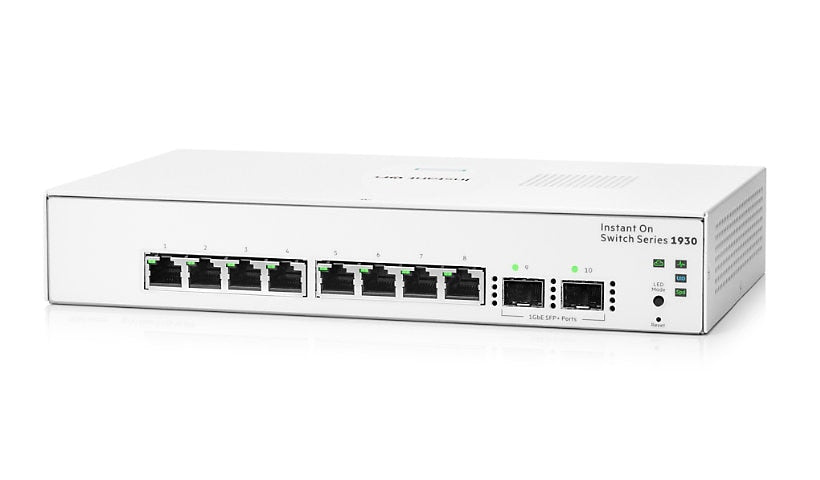

HPE's Networking Instant On 1930 8G 2SFP (JL680A) is a compact smart managed desktop switch with eight Gigabit ports and two Gigabit SFP ports. It offers 20 Gbps of switching capacity, Layer 3 features and cloud or local management that works with Instant On access points.
Key Features
- 8 x 10/100/1000 RJ-45 ports
- 2 x Gigabit SFP ports
- 20 Gbps switching, 14.88 Mpps
- Cloud or web managed, Layer 3 features
- Desktop, external power adapter
Product Information
Brand: HPE
Manufacturer: Aruba Instant On
Product Line: HPE Networking Instant On
Model: 1930 8G 2SFP Switch
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: White
Country: United States
Localization: English
Network and Communication
Advanced Switching: Layer 3
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: HTTP, HTTPS, RADIUS, RMON, SNMP 1, SNMP 2c, SNMP 3, TFTP
Routing Protocol: Static IP routing
Authentication Method: RADIUS
Encryption: SSL
Performance: Latency (1 Gbps): 3 µs, Latency (100 Mbps): 5.2 µs, Switching capacity: 20 Gbps, Throughput: 14.88 Mpps
Capacity: Access Control Entries (ACEs) per ACL: 480, IPv4 routes (static): 32, Link aggregation ports: 8, Packet buffer size: 1.5 MB, VLANs supported: 256
MAC Address Table Size: 8000 entries
Jumbo Frame Support: 9216 bytes
Features: Access Control List (ACL) support, ARP support, Auto-uplink (auto MDI/MDI-X), BPDU Filter, Class of Service (CoS), DHCP support, Energy Efficient Ethernet, Flow control, Full duplex mode, Half duplex mode, IGMP snooping, IPv6 support, Link Aggregation Control Protocol (LACP), LLDP support, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), Spanning Tree Protocol (STP) support, Trusted Platform Module (TPM), VLAN support
Connectivity
Ports: 10
Port Quantity: 8
Port Type: 10/100/1000
Ports (2nd) Quantity: 2
Ports Type (2nd): Gigabit SFP
Interface Provided: 2 x Gigabit LAN SFP, 8 x 10/100/1000 Base-T RJ-45
Power
Device Type: External power adapter
Frequency: 50/60 hertz
Power Consumption Operational: 11 watt
Memory and Processor
Processor Brand: ARM
Processor Type: Cortex-A9
Processors Installed: 1
Clock Speed: 800 megahertz
RAM Installed: 512 megabyte
Memory Technology: SDRAM
Flash Memory Installed: 256 megabyte
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 15 - 95% (40 °C)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 15 - 95% (60 °C)
MTBF: 178 Year
Physical Characteristics
Form Factor (Hubs & Switches): Desktop
Status Indicators: Port status, Power
Dimensions and Weight
Height: 1.7 inch
Width: 10 inch
Depth: 6.3 inch
Weight: 28.92 ounce
Certifications and Listing
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Compliant Standards: CISPR 24, CISPR 32 Class A, CISPR 35, CNS 13438, CSA C22.2 No. 60950-1, EN 55024:2010, EN 55032:2015+AC:2016, EN 55035:2017, EN 60825-1, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 62368-1:2014, FCC CFR47 Part 15 A, ICES-003 issue 6 Class A, IEC 60950-1, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 62368-1: 2014 Second Edition, SSL, UL 60950-1, UL 62368-1 Second Edition, VCCI
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
