Product Information

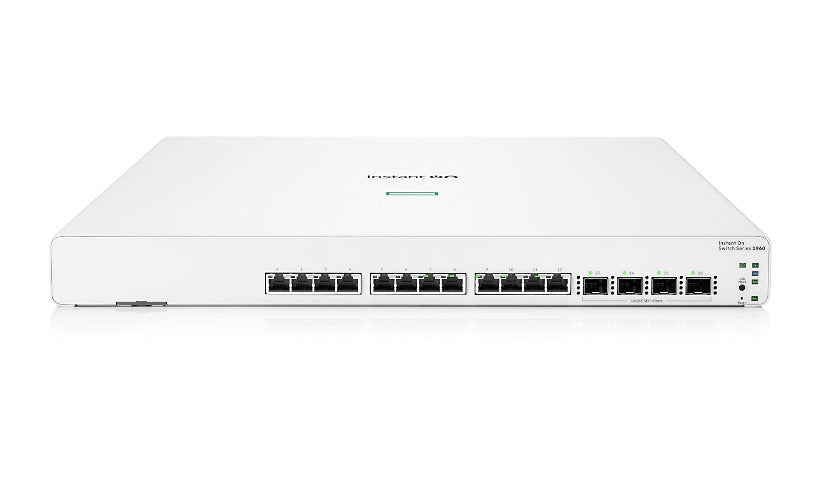

HPE's Networking Instant On 1960 12XGT 4SFP+ (JL805A) is a stackable smart switch with 12 10GBASE-T ports and four 10G SFP+ ports. It offers 320 Gbps of switching capacity and Layer 2+ features, with cloud or local web management and an internal power supply.
Key Features
- 12 x 100M/1G/10G RJ-45 ports
- 4 x 10G SFP+ ports
- 320 Gbps switching, 238 Mpps
- Layer 2+, stackable
- Cloud or web managed
- Rack mount
Product Information
Brand: HPE
Manufacturer: Aruba Instant On
Product Line: HPE Networking Instant On
Model: 1960 12XGT 4SFP+ Switch
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: White
Country: United States
Localization: English
Network and Communication
Advanced Switching: Layer 2+
Switching Type: 10 Gigabit Ethernet
Manageable: Yes
Remote Management: HTTP, HTTPS, RADIUS, RMON, SCP, SNMP 1, SNMP 2c, SNMP 3, TFTP
Routing Protocol: IGMP, IGMPv2, IGMPv3, MLD, MLDv2, Static IPv4 routing
Authentication Method: RADIUS
Encryption: SSL
Performance: Latency (1 Gbps): 4.2 µs, Latency (10 Gbps): 1.1 µs, Latency (100 Mbps): 7.4 µs, Switching capacity: 320 Gbps, Throughput: 238 Mpps
Capacity: IPv4 routing table entries: 512, IPv6 routing table entries: 512
MAC Address Table Size: 16000 entries
Jumbo Frame Support: 9216 bytes
Stackable: Stackable
Features: Access Control List (ACL) support, ARP filtering, Auto voice VLAN, Auto-negotiation, Auto-uplink (auto MDI/MDI-X), BPDU Filter, Broadcast Storm Control, Cable Diagnostics Function, Class of Service (CoS), Cloud managed, DHCP client, DHCP relay, DHCP server, DHCP snooping, DNS client, DoS attack prevention, DSCP prioritization, Dual image support, Energy Efficient Ethernet, Firmware upgradable, Flow control, IGMP snooping, Ingress rate limiting, Internet Control Message Protocol (ICMP), IP source guard, IPv6 support, LLDP-MED, Loop protection, MLD snooping, Multicast Storm Control, Multiple Spanning Tree Protocol (MSTP) support, Port based access control, Port mirroring, Port Security, Protected ports, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, SNTP support, Spanning Tree Protocol (STP) support, Trusted Platform Module (TPM), Unicast Storm Control, VLAN support, Weighted Round Robin (WRR)
Smart: Yes
Connectivity
Ports: 12
Port Quantity: 12
Port Type: 100/1000/10000
Ports (2nd) Quantity: 4
Ports Type (2nd): 10 Gigabit SFP+
Interface Provided: 12 x 10Gbit LAN RJ-45, 4 x 10Gbit LAN SFP+
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
Power Consumption Operational: 80 watt
Memory and Processor
Processor Brand: ARM
Processors Installed: 1
Clock Speed: 2 GHZ
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 15 - 95% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 15 - 95% (non-condensing)
MTBF: 88.8 Year
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Status Indicators: Port status
Rack Mounting Kit: Included
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 13.8 inch
Weight: 9.48 lbs
Certifications and Listing
Compliant Standards: AS/NZS CISPR 32 Class A, CAN/CSA C22.2 No. 62368-1 Second Edition, CAN/CSA C22.2 No. 62368-1 Third Edition, CAN/CSA-C22.2 No. 62368-1, CISPR 35, CNS 13438 Class A, EN 55032/CISPR 32 Class A, EN 55035, EN 60825-1 Class 1, EN 61000-3-2, EN 61000-3-3, EN 62368-1, EN 62368-1 Second Edition, EN 62368-1 Third Edition, FCC CFR47 Part 15 A, ICES-003 Class A, IEC 60825-1 Class 1, IEC 61000-3-2, IEC 61000-3-3, IEC 62368-1, IEC 62368-1 Second Edition, IEC 62368-1 Third Edition, IEC/EN 61000-4-11, IEC/EN 61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, IEC/EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013, KN32 Class A, KN35, Plug and Play, UL 62368-1, UL 62368-1 Second Edition, UL 62368-1 Third Edition, VCCI Class A
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1t, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime, Technical support - live chat - lifetime, Technical support - phone consulting - 90 days from date of purchase
Service Activation: No
