Product Information

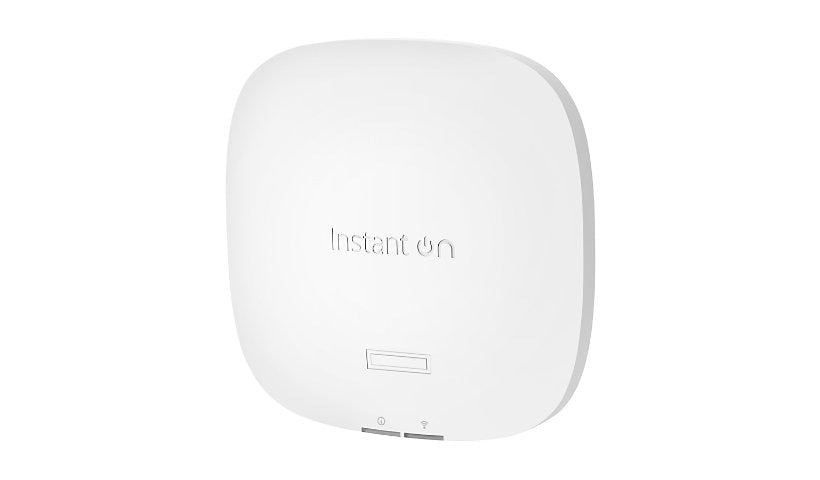

The HPE Networking Instant On AP22 (R4W01A, US model) is a compact indoor Wi-Fi 6 access point for small businesses, with MU-MIMO, OFDMA and BLE. It has a Gigabit PoE port, uses Instant On management and includes a ceiling rail mount clip.
Key Features
- Wi-Fi 6 dual band
- MU-MIMO, OFDMA
- Gigabit RJ-45, PoE
- Bluetooth LE
- Instant On app or cloud
- Ceiling rail clip included
Product Information
Brand: HPE
Manufacturer: Hewlett-Packard
Product Line: HPE Networking Instant On
Model: AP22 (US)
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Country: United States
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: Bluetooth, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Encryption: WPA2, WPA3
Wireless LAN: 802.11a/b/g/n/ac/ax, Bluetooth
Network Band: 2.4 GHz, 5 GHz
Network Device: Concurrent data rate (2.4 GHz): 574 Mbps, Concurrent data rate (5 GHz): 1.2 Gbps
IoT Communications Technology: Bluetooth Low Energy (LE)
Antenna Form Factor: Internal
Antenna Gain Level: 3 DBi
Directivity: Omni-directional
Features: Advanced Cellular Coexistence (ACC), Bluetooth (BLE) clients support, BSS Coloring, Firewall protection, Low Density Parity Check (LDPC), Manageable, MU-MIMO technology, Orthogonal Frequency Division Multiple Access (OFDMA), PPPoE server, Reset button, Security lock slot (cable lock sold separately), Smart Mesh technology, Static IP mode, Target Wait Time (TWT), Transmit Beam-forming (TxBF) ready, Trusted Platform Module (TPM), Wall mountable
Software Type: InstantOn
Connectivity
Interface Provided: 1 x - RJ-45
Power Over Ethernet (PoE): PoE
Memory and Processor
Optical Drive Type: None
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
MTBF: 91 Year
Ruggedized Design: Indoor
Physical Characteristics
Form Factor: Wall / ceiling mountable
Status Indicators: Status
Dimensions and Weight
Height: 1.5 inch
Width: 6.3 inch
Depth: 6.3 inch
Weight: 17.64 ounce
Included Items
Included Accessories: Ceiling rail mount clip
Cables: 1 x network cable
Certifications and Listing
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, Wi-Fi CERTIFIED 6
Compliant Standards: EN 60601-1-1, EN 60601-1-2, UL 2043
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
