Product Information

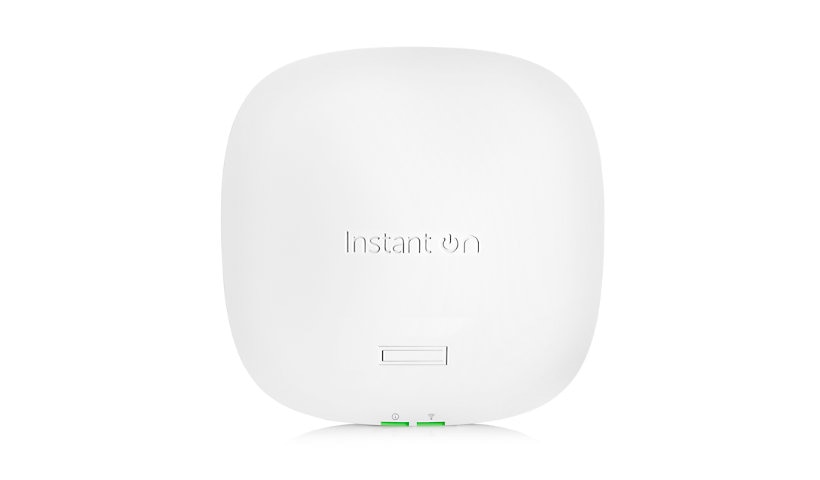

The HPE Networking Instant On AP25 (US) R9B32A is a Wi-Fi 6 4x4 MU-MIMO wireless access point with Bluetooth LE, a 2.5GBase-T PoE uplink, 160 MHz channels, OFDMA and up to 4.8 Gbps on 5 GHz, for wall or ceiling mounting. It is an access point, not a laptop charger, please confirm the category.
Key Features
- Wi-Fi 6, 4x4 MU-MIMO
- 2.5GBase-T PoE uplink
- Up to 4.8 Gbps
- Bluetooth LE
- Wall or ceiling
- Not a charger
Product Information
Brand: HPE
Manufacturer: Aruba Instant On
Product Line: HPE Networking Instant On
Model: AP25 (US)
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: Bluetooth, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wireless LAN: 802.11a/b/g/n/ac/ax, Bluetooth
Network Band: 2.4 GHz, 5 GHz
Spread Spectrum Method: OFDMA
Network Device: Maximum data rate (2.4 GHz): 574 Mbps, Maximum data rate (5 GHz): 4.8 Gbps
IoT Communications Technology: Bluetooth Low Energy (LE)
Features: 160MHz bandwidth support, 4x4:4 MU-MIMO technology, Bluetooth (BLE) clients support, MU-MIMO technology, Orthogonal Frequency Division Multiple Access (OFDMA), Reset button, Security lock slot (cable lock sold separately), Security slot (Kensington security lock compatible), Target Wait Time (TWT), Wall mountable
Software Type: InstantOn
Connectivity
Interface Provided: 1 x 2.5GBase-T (uplink, PoE) - RJ-45
Power Over Ethernet (PoE): PoE
Power
Device Type: External power adapter
Required Voltage: DC 12 volt
Power Provided: 18 watt
Memory and Processor
Optical Drive Type: None
Technical Information
Ruggedized Design: Indoor
Physical Characteristics
Form Factor: Wall / ceiling mountable
Status Indicators: Reset, Status
Dimensions and Weight
Height: 2 inch
Width: 8 inch
Weight: 2.6 lbs
Included Items
Included Accessories: Wall/ceiling rail mounting clip
Cables: 1 x network cable
Certifications and Listing
Compliant Standards #2: EN 60601-1-1, EN 60601-1-2, WFA
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, Wi-Fi CERTIFIED 6
Compliant Standards: EN 60601-1-1, EN 60601-1-2, WFA
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
