Product Information

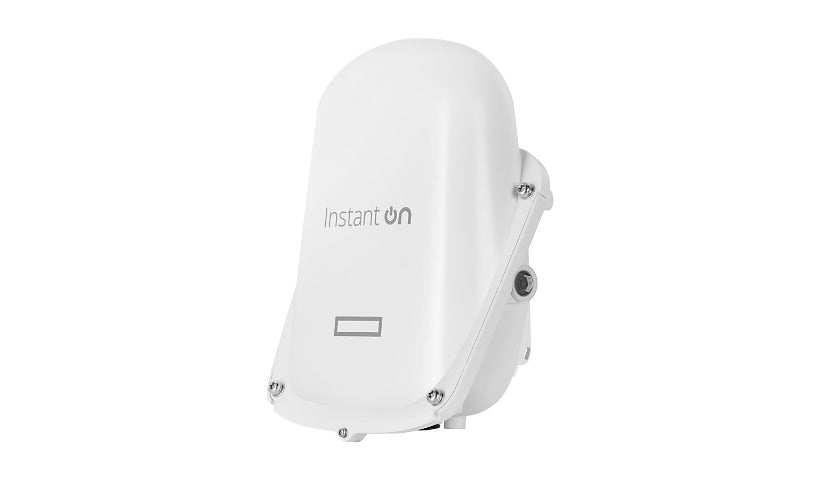

The HPE Networking Instant On AP27 (S1T41A, US model) is a dual radio outdoor Wi-Fi 6 access point in a tough housing, with semi-directional radios and support for up to 75 simultaneous users. It has a Gigabit uplink, runs from -40 to 149 °F, and includes a 30 W PoE midspan injector, a wall or ceiling bracket and a US power cord.
Key Features
- Outdoor Wi-Fi 6, 2x2
- Up to 75 users
- Gigabit uplink, PoE Class 4
- -40 to 149 °F
- 30 W PoE injector included
- Wall / ceiling bracket
Product Information
Brand: HPE
Manufacturer: Aruba
Product Line: HPE Networking Instant On
Model: AP27 (US)
Product Type: Wireless access point
Device Type: Power injector
Packaged Quantity: 1
Color Category: White
Country: United States
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Network Standard: PPPoE
Encryption: Opportunistic Wireless Encryption (OWE), WPA2, WPA3
Line Coding Format: 1024 QAM
Capacity: Recommended number of devices: 75
Wireless LAN: 802.11a/b/g/n/ac/ax
Network Band: 2.4 GHz, 5 GHz
Spread Spectrum Method: OFDMA
Network Device: Maximum data rate (2.4 GHz): 574 Mbps, Maximum data rate (5 GHz): 1.2 Gbps
Antennas: 2
Antenna Form Factor: Internal
Directivity: Omni-directional
Features: 2x2 MIMO technology, Advanced Cellular Coexistence (ACC), BSS Coloring, Low Density Parity Check (LDPC), MU-MIMO technology, PoE Class 4, Reset button, Security slot (Kensington security lock compatible), Static IP mode, Target Wait Time (TWT), Transmit Beamforming, Trusted Platform Module (TPM)
Connectivity
Interface Provided: 1 x 1000Base-T (uplink) - RJ-45
Power Over Ethernet (PoE): PoE
Power
Power Provided: 30 watt
Memory and Processor
Optical Drive Type: None
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 149 degree Fahrenheit
MTBF: 248 Year
Ruggedized Design: Outdoor
Physical Characteristics
Form Factor: Wall / ceiling mountable
Status Indicators: Status, Wireless
Dimensions and Weight
Height: 4.7 inch
Width: 7.1 inch
Depth: 9.1 inch
Weight: 2.58 lbs
Included Items
Included Accessories: 30W PoE midspan injector, Ceiling/wall mount bracket, Power cable (US)
Certifications and Listing
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, Wi-Fi CERTIFIED 6
Compliant Standards: IP67
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
