Product Information

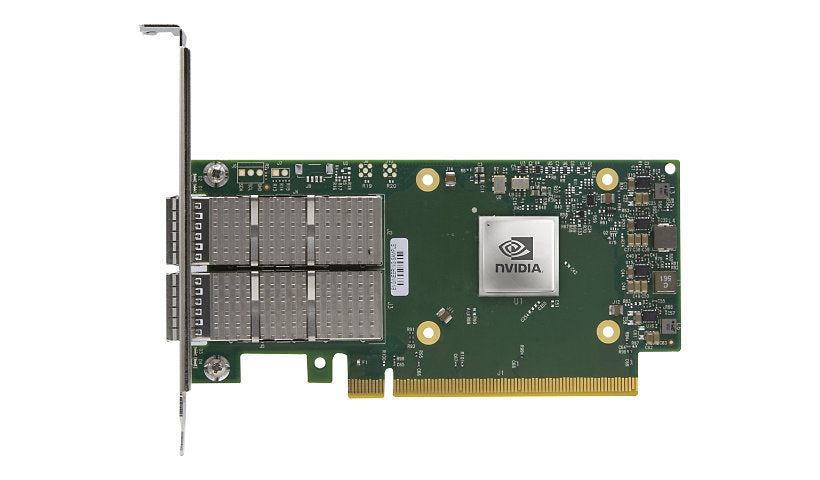

The HPE NV60100M (R8M41A) is a dual port QSFP28 storage networking adapter on a PCIe 4.0 x16 interface, with each port running at 10, 25, 40, 50 or 100 Gb Ethernet. It offloads NVMe over Fabrics and RDMA (RoCE and RoCE v2) for NVMe based storage, with SR-IOV, VirtIO, SMB Direct and tunnel offloads for SDN and NFV. Security features include hardware root of trust, secure boot, secure firmware updates and AES-GCM, AES-XTS and TLS encryption. It ships with a tall bracket and is listed for ProLiant DL345 Gen10 Plus servers.
Key Features
- 2 x 100GbE QSFP28 ports
- NVMe over Fabrics offload
- PCIe 4.0 x16
- RoCE v2 and SR-IOV
- AES and TLS encryption
- For ProLiant DL345 Gen10+
Product Information
Brand: HPE
Manufacturer: Hewlett-Packard
Product Line: HPE
Model: NV60100M
Product Type: Network adapter
Compatibility Specs: HPE ProLiant DL345 Gen10 Plus, DL345 Gen10 Plus Base, DL345 Gen10 Plus Entry
Packaged Quantity: 1
Color Category: Green, Silver
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 50 Gigabit Ethernet, RDMA over Converged Ethernet (RoCE v2), RDMA over Converged Ethernet (RoCE)
Network Standard: iSCSI, NFS
Encryption: 128-bit AES-GCM, 256-bit AES-GCM, 256-bit AES-XTS, 512-bit AES-XTS, TLS
Data Transfer Rate: 100 GBps
Operating System Required: Microsoft Windows Server 2019, Red Hat Enterprise Linux 8.4, SUSE Linux Enterprise Server 15 SP3, VMware ESXi 7.0 Update 2 or later
Features: Hardware root of trust, Network Function Virtualization (NFV), NVMe over Fabrics (NVMe-oF), RDMA support, Secure Boot, Secure firmware update, Single Root I/O Virtualization (SR-IOV), SMB Direct support, Software Defined Networking (SDN), Tunnel offload, VirtIO
Connectivity
PCI Specification Revision: PCIe 4.0
Port Quantity: 2
Interface Provided: 2 x 10Gb Ethernet/25Gb Ethernet/40Gb Ethernet/50Gb Ethernet/100Gb Ethernet - QSFP28
Network & Adapter Ports: 10Gb Ethernet / 25Gb Ethernet / 40Gb Ethernet / 50Gb Ethernet / 100Gb Ethernet QSFP28
Host Interface: PCI Express 4.0 x16
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 158 degree Fahrenheit
Operating Humidity: 5 - 85% RH (non-condensing)
Physical Characteristics
Form Factor: Plug-In Card
Dimensions and Weight
Height: 11.3 inch
Width: 8.1 inch
Depth: 11.7 inch
Weight: 4.37 ounce
Included Items
Included Accessories: Tall bracket
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - parts and labor - 1 year
