Product Information

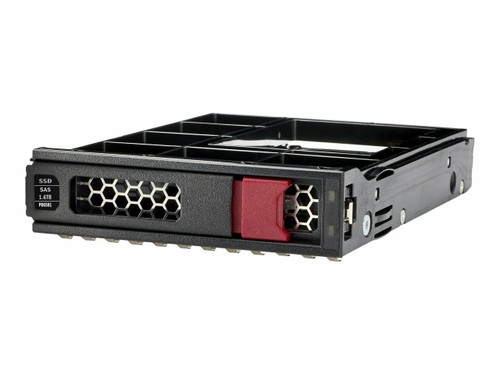

The HPE P04535-B21 gives you 1.6TB of mixed use flash storage in a 3.5 inch large form factor (LFF) SSD with a 12Gb SAS interface. The drive runs HPE digitally signed firmware. It comes in an HPE Low Profile Converter (LPC) for 3.5 inch bays. It is intended for HPE ProLiant Gen9 and Gen10 servers.
Key Features
- 1.6TB capacity
- SAS 12Gb/s interface
- 3.5 inch LFF
- Mixed Use workload
- Digitally signed firmware
- HPE Low Profile Converter (LPC)
Condition: Brand New in Factory Sealed Box
Warranty: Up to a 3-Years Manufacturer Warranty and a 30 Days Return Window through us
Specifications
Brand: HPE
MPN: P04535-B21
Option Part Number: P04535-B21
Spare Part Number: P06581-001
Model Number: MO001600JWTBT
Assembly Number: P04174-003
General
Device Type: Solid State Drive - Hot-Swap
Capacity: 1.6 TB
Form Factor: 3.5 inch LFF
Interface: SAS 12Gbps
NAND Flash Memory
Type: Triple-level cell (TLC)
Connectivity: Dual Port
Plug Type: Hot Pluggable
Carrier Type: Low Profile Converter (LPC)
Workload Type: Mixed Use
Bundled with: HPE Low Profile Converter (LPC)
Features: Digitally Signed Firmware
Platform Supported: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy
Height: 15.00 mm
Performance
30 Days Writes: 8760
Endurance DWPD (Drive Writes Per Day): 3
Drive Transfer Rate (External): 12 Gb/sec
Random Read IOPS (4KiB, Q=16): 109000
Max Random Read IOPS (4KiB): 165000@Q32
Random Write IOPS (4KiB, Q=16): 105000
Max Random Write IOPS (4KiB): 105000@Q16
MAX Seq Reads Throughput (MiB/s): 1075
Max Seq Writes Throughput (MiB/s): 1030
Random Read Avg. Latency uSec (4KiB,Q1): 135
Random Write Avg. Latency uSec (4KiB,Q1): 35
Expansion & Connectivity
Interfaces: 1 x SAS 12 Gb/s
Compatible Bay: 3.5" LFF
Power Consumption
Idle Time: 5.00 Watt
Random Read: 6.00 Watt
Random Write: 6.00 Watt
Sequential Read: 6.98 Watt
Sequential Write: 6.98 Watt
Random Read/Write: 5.43 Watt
Maximum: 8.98
Product Dimensions & Weight
Height: 5.50 inch (13.97 cm)
Width: 7.25 inch (18.41 cm)
Depth: 8.75 inch (22.23 cm)
Weight: 3.00 lbs (1.36 kg)
Compatible Systems
- HPE Apollo Series: 4200 Gen9 (3.5 inch), 4510 Gen9 (3.5 inch)
- HPE ProLiant DL Series: DL325 Gen10 (3.5 inch), DL325 Gen10 Base (3.5 inch), DL325 Gen10 Entry (3.5 inch), DL325 Gen10 Performance (3.5 inch), DL325 Gen10 Plus (3.5 inch), DL325 Gen10 SMB Solution (3.5 inch), DL325 Gen10 Solution (3.5 inch), DX380 Gen10 (3.5 inch)
- HPE ProLiant ML Series: ML110 Gen10 (3.5 inch), ML110 Gen10 Entry (3.5 inch), ML110 Gen10 Performance (3.5 inch), ML110 Gen10 Solution (3.5 inch), ML350 Gen10 (3.5 inch), ML350 Gen10 Base (3.5 inch), ML350 Gen10 Entry (3.5 inch), ML350 Gen10 High Performance (3.5 inch), ML350 Gen10 Performance (3.5 inch), ML350 Gen10 SMB (3.5 inch), ML350 Gen10 Solution (3.5 inch), ML350 Gen10 Special Server (3.5 inch), ML350 Gen10 Sub-Entry (3.5 inch)
