Product Information

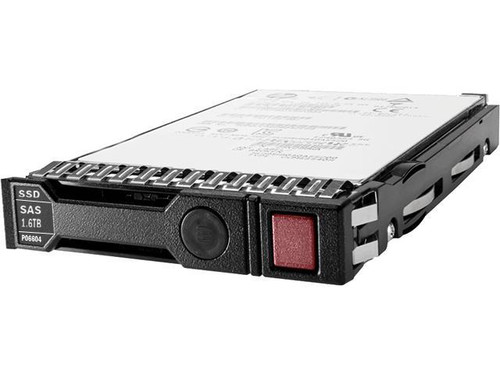

The HPE P04545-K21 is a 1.6TB write intensive solid state drive in the 2.5 inch small form factor (SFF) with a 12Gb SAS interface. The drive uses TLC NAND and runs HPE digitally signed firmware. It comes in an HPE Smart Carrier (SC). It is intended for HPE ProLiant Gen9 and Gen10 servers.
Key Features
- 1.6TB capacity
- SAS 12Gb/s interface
- 2.5 inch SFF
- Write Intensive workload
- TLC NAND
- Digitally signed firmware
- HPE Smart Carrier (SC)
Condition: Brand New in Factory Sealed Box
Warranty: Up to a 3-Years Manufacturer Warranty and a 30 Days Return Window through us
Specifications
Brand: HPE
MPN: P04545-K21
Option Part Number: P04545-K21
Spare Part Number: P06604-001
Model Number: EO001600JWTCB
Assembly Number: P04175-003
General
Device Type: Solid State Drive - Hot-Swap
Capacity: 1.6 TB
Form Factor: 2.5 inch SFF
Interface: SAS 12Gbps
NAND Flash Memory
Type: Triple-level cell (TLC)
Connectivity: Dual Port
Plug Type: Hot Pluggable
Carrier Type: Smart Carrier (SC)
Workload Type: Write Intensive
Features: Digitally Signed Firmware (DS)
Bundled With: HPE Smart Carrier (SC)
Platform Supported: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy
Height: 15 mm (0.6 inch)
Performance
Lifetime Writes: 29200
Endurance DWPD (Drive Writes Per Day): 10.00
Drive Transfer Rate: 12 Gb/sec (external)
MAX Seq. Reads Throughput (MiB/s): 1075
MAX Seq. Writes Throughput (MiB/s): 1030
Random Read Average Latency uSec (4KiB, Q1): 135
Random Write Average Latency uSec (4KiB, Q1): 35
Random Read IOPS (4KiB, Q=16): 110000
Random Write IOPS (4KiB, Q=16): 120000
MAX Random Read IOPS (4KiB): 165000@Q32
MAX Random Write IOPS (4KiB): 120000@Q1
Expansion & Connectivity
Interfaces: 1 x SAS 12Gbps
Compatible Bay: 2.5" SFF Power Consumption Idle Time: 5.00 Watt
Random Read: 6.00 Watt
Random Write: 6.00 Watt
Sequential Read: 6.98 Watt
Sequential Write: 6.98 Watt
Random Read/Write: 5.43 Watt
Maximum: 8.98 Watt
Product Dimensions & Weight
Height: 5.00 inch (12.70 cm)
Width: 7.00 inch (17.78 cm)
Depth: 9.00 inch (22.86 cm)
Weight: 1.10 lbs (0.50 kg)
Compatible Systems
- HPE Apollo Series: 4200 Gen10 (2.5 inch)
- HPE ProLiant BL Series: BL460c Gen10 (2.5 inch)
- HPE ProLiant DL Series: DL325 Gen10 (2.5 inch), DL325 Gen10 Entry (2.5 inch), DL325 Gen10 Performance (2.5 inch), DL325 Gen10 SMB Solution (2.5 inch), DL360 Gen10 (2.5 inch), DL360 Gen10 Base (2.5 inch), DL360 Gen10 Entry (2.5 inch), DL360 Gen10 High Performance (2.5 inch), DL360 Gen10 Low (2.5 inch), DL360 Gen10 Performance (2.5 inch), DL360 Gen10 Solution (2.5 inch), DL380 Gen10 (2.5 inch), DL380 Gen10 Base (2.5 inch), DL380 Gen10 Entry (2.5 inch), DL380 Gen10 High Performance (2.5 inch), DL380 Gen10 Performance (2.5 inch), DL380 Gen10 Solution (2.5 inch), DL380 Gen9 Scale-up SAP HANA Tailored Datacenter Integration Compute Block (2.5 inch), DL380 Gen9 Special (2.5 inch), DL385 Gen10 (2.5 inch), DL385 Gen10 Base (2.5 inch), DL385 Gen10 Entry (2.5 inch), DL385 Gen10 High-Perferformance (2.5 inch), DL385 Gen10 High-Performance (2.5 inch), DL385 Gen10 Performance (2.5 inch), DL385 Gen10 Solution (2.5 inch), DL560 Gen10 (2.5 inch), DL560 Gen10 Base (2.5 inch), DL560 Gen10 Entry (2.5 inch), DL560 Gen10 Performance (2.5 inch), DL580 Gen10 (2.5 inch), DL580 Gen10 Base (2.5 inch), DL580 Gen10 Entry (2.5 inch), DL580 Gen10 Performance (2.5 inch)
- HPE ProLiant ML Series: ML110 Gen10 (2.5 inch), ML110 Gen10 Entry (2.5 inch), ML110 Gen10 Performance (2.5 inch), ML110 Gen10 Solution (2.5 inch), ML350 Gen10 (2.5 inch), ML350 Gen10 Base (2.5 inch), ML350 Gen10 Entry (2.5 inch), ML350 Gen10 Performance (2.5 inch), ML350 Gen10 Solution (2.5 inch), ML350 Gen10 Sub-Entry (2.5 inch)
- HPE ProLiant XL Series: XL170r Gen10 (2.5 inch), XL190r Gen10 (2.5 inch), XL270d Gen10 (2.5 inch)
- HPE Synergy Series: 480 Gen10 Base Compute Module (2.5 inch), 480 Gen10 Compute Module (2.5 inch), 480 Gen10 Entry Compute Module (2.5 inch), 480 Gen10 Performance Compute Module (2.5 inch), 480 Gen10 Premium Backplane Compute Module (2.5 inch), 480 Gen10 Standard BackPlane Compute Module (2.5 inch), 480 Gen10 w/o Drives Compute Module (2.5 inch), 660 Gen10 Base Compute Module (2.5 inch), 660 Gen10 Compute Module (2.5 inch), 660 Gen10 Entry Compute Module (2.5 inch), 660 Gen10 Performance Compute Module (2.5 inch), 660 Gen10 Premium Compute Module (2.5 inch), 680 Gen9 4S-EX Compute Module (2.5 inch)
Not sure this drive fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
