Product Information

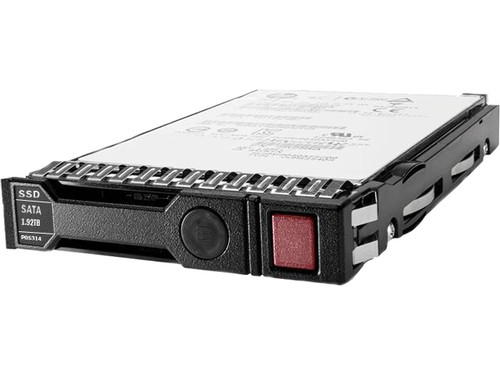

The HPE P05314-001 is a 1.92TB read intensive solid state drive in the 2.5 inch small form factor (SFF) with a 6Gb SATA interface. The drive uses TLC NAND and runs HPE digitally signed firmware. It comes in an HPE Smart Carrier (SC). It is intended for HPE ProLiant Gen9 and Gen10 servers.
Key Features
- 1.92TB capacity
- SATA 6Gb/s interface
- 2.5 inch SFF
- Read Intensive workload
- TLC NAND
- Digitally signed firmware
- HPE Smart Carrier (SC)
Condition: New Bulk Pack
Warranty: 90 Days Warranty
Specifications
Brand: HPE
MPN: P05314-001
Option Part Number: P04478-B21
Spare Part Number: P05314-001
Model Number: VK001920GWSXK
Assembly Number: P03483-003
General
Device Type: Solid State Drive - Hot-Swap
Capacity: 1.92 TB
Form Factor: 2.5 inch SFF
Interface: SATA 6Gbps
NAND Flash Memory Type: Triple-level cell (TLC)
Plug Type: Hot Pluggable
Carrier Type: Smart Carrier (SC)
Workload Type: Read Intensive
Bundled with: HPE SmartDrive Carrier
Features: Digitally Signed Firmware (DS)
Platform Supported: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy
Height: 7.00 mm (0.30 inch)
Performance
30 Days Writes: 3500
Endurance DWPD (Drive Writes Per Day): 1.0
Drive Transfer Rate: 6 Gb/ps (external)
MAX Seq. Reads Throughput (MiB/s): 520
MAX Seq. Writes Throughput (MiB/s): 495
Random Read Average Latency uSec (4KiB,Q1): 125
Random Write Average Latency uSec (4KiB,Q1): 41
Random Read IOPS (4KiB, Q=16): 60000
Random Write IOPS (4KiB, Q=16): 24000
MAX Random Read IOPS (4KiB): 62000@Q32
MAX Random Write IOPS (4KiB): 25000@Q32
Expansion & Connectivity
Interfaces: 1 x SATA 6 Gb/s
Compatible Bay: 2.5" SFF
Power Consumption
Idle Time: 1.50 Watt
Random Read: 2.30 Watt
Random Write: 2.30 Watt
Sequential Read: 4.20 Watt
Sequential Write: 6.30 Watt
Random Read/Write: 2.30 Watt
Maximum: 6.30 Watt
Product Dimensions & Weight
Height: 5.00 cm
Width: 7.00 cm
Depth: 9.00 cm
Weight: 1.1 lbs
Compatible Systems
- HPE ProLiant DL Series: DL20 Gen10 (2.5 inch), DL20 Gen10 Entry (2.5 inch), DL20 Gen10 Performance (2.5 inch), DL20 Gen10 solution (2.5 inch), DL325 Gen10 Base (2.5 inch), DL325 Gen10 Plus (2.5 inch), DL325 Gen10 Solution (2.5 inch), DL360 Gen10 Low (2.5 inch), DL360 Gen10 Network Choice (2.5 inch), DL360 Gen10 SMB (2.5 inch), DL360 Gen10 SMB Network Choice (2.5 inch), DL360 Gen10 Solution (2.5 inch), DL380 Gen10 All Flash Server for Datera (2.5 inch), DL380 Gen10 Entry SMB (2.5 inch), DL380 Gen10 for Cohesity DataPlatform (2.5 inch), DL380 Gen10 Hybrid Server for Datera (2.5 inch), DL380 Gen10 Network Choice (2.5 inch), DL380 Gen10 Network Choice for CTERA (2.5 inch), DL380 Gen10 Network Choice for SAP HANA Compute Block (2.5 inch), DL380 Gen10 SMB (2.5 inch), DL380 Gen10 SMB Networking Choice (2.5 inch), DL380 Gen10 Solution (2.5 inch), DL385 Gen10 (2.5 inch), DL385 Gen10 Base (2.5 inch), DL385 Gen10 Entry (2.5 inch), DL385 Gen10 High-Performance (2.5 inch), DL385 Gen10 Performance (2.5 inch), DL385 Gen10 Plus (2.5 inch), DL385 Gen10 Plus Entry (2.5 inch), DL385 Gen10 SMB (2.5 inch), DL385 Gen10 Solution (2.5 inch), DL388 Gen10 (2.5 inch), DL580 Gen10 (2.5 inch), DL580 Gen10 Base (2.5 inch), DL580 Gen10 Entry (2.5 inch), DL580 Gen10 Performance (2.5 inch)
- HPE ProLiant ML Series: ML110 Gen10 (2.5 inch), ML110 Gen10 Entry (2.5 inch), ML110 Gen10 Performance (2.5 inch), ML110 Gen10 Solution (2.5 inch), ML30 Gen10 (2.5 inch), ML30 Gen10 Entry (2.5 inch), ML30 Gen10 Performance (2.5 inch), ML30 Gen10 Solution (2.5 inch), ML350 Gen10 (2.5 inch), ML350 Gen10 Base (2.5 inch), ML350 Gen10 Entry (2.5 inch), ML350 Gen10 High Performance (2.5 inch), ML350 Gen10 Performance (2.5 inch), ML350 Gen10 SMB (2.5 inch), ML350 Gen10 Solution (2.5 inch), ML350 Gen10 Special Server (2.5 inch), ML350 Gen10 Sub-Entry (2.5 inch)
- HPE Synergy Series: 480 Gen10 Base Compute Module (2.5 inch), 480 Gen10 Compute Module (2.5 inch), 480 Gen10 Premium Backplane Compute Module (2.5 inch), 480 Gen10 Standard BackPlane Compute Module (2.5 inch), 480 Gen10 w/o Drives Compute Module (2.5 inch), 660 Gen10 Compute Module (2.5 inch), 660 Gen10 Premium Compute Module (2.5 inch), 680 Gen9 4S-EX Compute Module (2.5 inch)
Not sure this drive fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
