Product Information

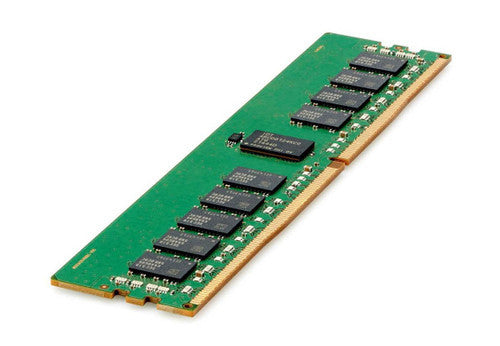

Add memory to HPE ProLiant Gen10 Plus servers with the HPE P06033-B21, a 32GB (1x32GB) DDR4 registered DIMM (RDIMM) from the HPE SmartMemory line. It has a dual rank x4 design, 3200 MHz data rate and CAS latency 22. Other details: ECC error correction and a 288-pin layout.
About HPE SmartMemory
- HPE qualifies and tests SmartMemory for its own servers, which unlocks memory performance features found only on HPE platforms
- Built from top grade DRAM from leading suppliers, which matters more as virtualization, cloud and large databases push memory needs higher
- Tuned for full server memory optimization, top throughput and low power use
Condition: Brand New in Factory Sealed Box
Warranty: Up to a 3-Years Manufacturer Warranty and a 30 Days Return Window through us
Part Numbers
Manufacturer: HPE
MPN: P06033-B21
Option Part Number: P06033-B21
Spare Part Number: P21674-001
Assembly Number: P11444-091
Memory Details
Product Type: RAM Memory
Capacity: 32 GB
Memory Type: DDR4 SDRAM - DIMM 288-pin
Upgrade Type: System Specific Memory
Type: DRAM Memory Module
Technology: DDR4 SDRAM
Form Factor: DIMM 288-pin
Features: Dual Rank, Registered
Chip Organization: 2048 x 4
Voltage: 1.2 V
Performance
Speed: 3200 MHz (PC4-25600)
CAS Timing: CL22 (22-22-22)
Error Checking: ECC
Size and Weight
Height: 0.75 (1.91 cm)
Width: 3.50 inch (8.89 cm)
Depth: 7.80 inch (19.05 cm)
Weight: 0.10 lbs (0.045 kg)
Compatible Systems
- HPE ProLiant DL Series: DL110 Gen10 Plus Front Cabled Telco, DL360 Gen10 Plus, DL360 Gen10 Plus All-NVMe Server for Software Defined Storage, DL360 Gen10 Plus for Weka Base Tracking, DL360 Gen10 Plus Network Choice, DL380 Gen10 Plus, DL380 Gen10 Plus Network Choice
- HPE Synergy 480 Gen10 Plus Base Compute Module
Not sure this memory fits your system? Send us your server model and the DatorPro team will confirm compatibility before you order.
