Product Information

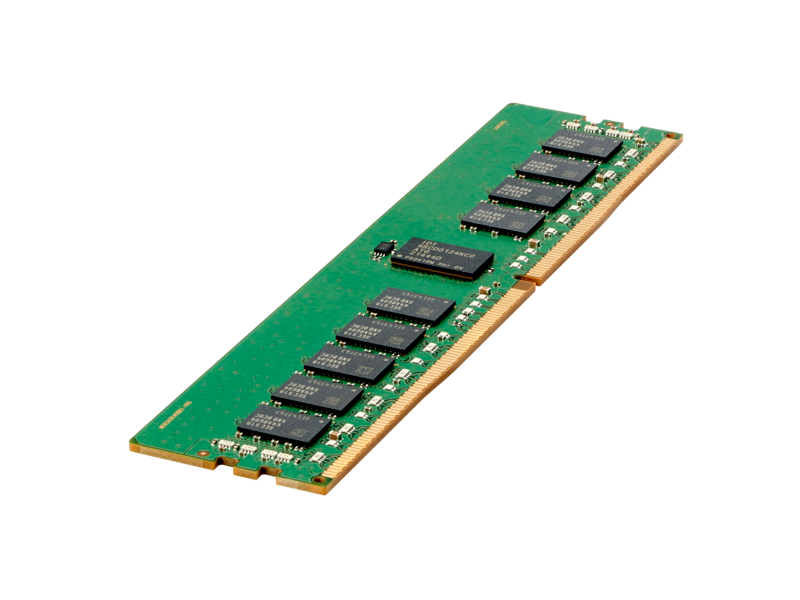

Built for HPE ProLiant Gen10 servers: the HPE P06191-001, a 128GB (1x128GB) DDR4 LRDIMM (load reduced, 3DS) from the HPE SmartMemory line. It has an octal rank x4 design, 2933 MHz data rate (PC4-23400) and CAS latency 24 (24-21-21). Other details: a 288-pin layout.
About HPE SmartMemory
- HPE qualifies and tests SmartMemory for its own servers, which unlocks memory performance features found only on HPE platforms
- Built from top grade DRAM from leading suppliers, which matters more as virtualization, cloud and large databases push memory needs higher
- Tuned for full server memory optimization, top throughput and low power use
- Advanced error detection helps avoid needless DIMM swaps and cuts downtime
- High grade materials protect signal integrity and improve reliability
- Tested and qualified across HPE server platforms for strong signal integrity
- Performs above industry standards, so servers can get faster without adding more memory
Condition: Brand New in Factory Sealed Box
Warranty: Up to a 3-Years Manufacturer Warranty and a 30 Days Return Window through us
Part Numbers
Manufacturer: HPE
MPN: P06191-001
Option Part Number: P00928-B21
Spare Part Number: P06191-001
Assembly Number: P03055-091
Memory Details
Product Type: Memory - DDR4 SDRAM
Capacity: 128 GB
Upgrade Type: System specific
Memory Type: DRAM
Technology: DDR4 SDRAM
Form Factor: LRDIMM 288-pin
Features: Octal rank, 3DS Load-Reduced
Chip Organization: X4
Voltage: 1.2 V Minimum
Performance
Speed: 2933 MHz (PC4-23400)
Error Checking: ECC
CAS Timing: CL24 (24-21-21)
Size and Weight
Height: 3.50 inch (8.89 cm)
Width: 7.80 inch (19.05 cm)
Depth: 0.75 inch (1.91 cm)
Weight: 0.10 lbs (0.045 KG)
Compatible Systems
- HPE ProLiant BL Series: BL460c Gen10
- HPE ProLiant DL Series: DL380 Gen10, DL380 Gen10 Base, DL380 Gen10 Entry, DL380 Gen10 Entry SMB, DL380 Gen10 for Cohesity DataPlatform, DL380 Gen10 High Performance, DL380 Gen10 Network Choice, DL380 Gen10 NVMe All Flash Server for Datera, DL380 Gen10 Performance, DL380 Gen10 SMB, DL380 Gen10 SMB Networking Choice, DL380 Gen10 Solution, DL388 Gen10 Network Choice, DL560 Gen10, DL560 Gen10 Base, DL560 Gen10 Entry, DL560 Gen10 Performance, DL580 Gen10, DL580 Gen10 Base, DL580 Gen10 Entry, DL580 Gen10 Performance
- HPE ProLiant DX Series: DX360 Gen10, DX380 Gen10, DX560 Gen10
- HPE ProLiant ML Series: ML350 Gen10, ML350 Gen10 Base, ML350 Gen10 Entry, ML350 Gen10 High Performance, ML350 Gen10 Performance, ML350 Gen10 Solution, ML350 Gen10 Special Server, ML350 Gen10 Sub-Entry
Not sure this memory fits your system? Send us your server model and the DatorPro team will confirm compatibility before you order.
