Product Information

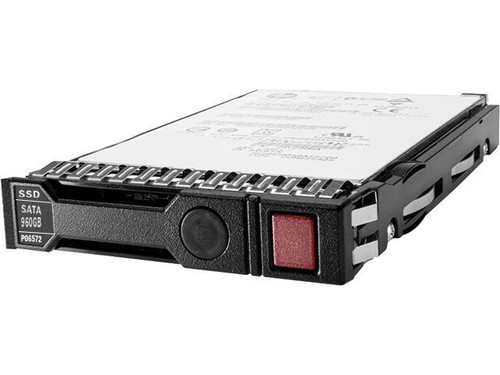

The HPE P06196-B21 gives you 960GB of read intensive flash storage in a 2.5 inch small form factor (SFF) SSD with a 6Gb SATA interface. The drive runs HPE digitally signed firmware. It comes in an HPE Smart Carrier (SC). It is intended for HPE ProLiant Gen9 and Gen10 servers.
Key Features
- 960GB capacity
- SATA 6Gb/s interface
- 2.5 inch SFF
- Read Intensive workload
- Digitally signed firmware
- HPE Smart Carrier (SC)
Condition: New Bulk Pack
Warranty: 90 Days Warranty
Specifications
Brand: HPE
MPN: P06196-B21
Option Part Number: P06196-B21
Spare Part Number: P06572-001
Model Number: VK000960GWTHB
Assembly Number: P04954-002
General
Device Type: Solid State Drive - Hot-Swap
Capacity: 960 GB
Interface Type: SATA 6Gbps
Form Factor: 2.5 inch SFF
Flash
Type: Triple-Level Cell (TLC)
Plug Type: Hot Pluggable
Workload Type: Read Intensive
Carrier Type: Smart Carrier (SC)
Features: Digitally Signed Firmware
Bundled With: HPE SmartDrive Carrier
Platform Supported: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy
Performance
30 Days Writes: 1710
Endurance DWPD: 1.00
Drive Transfer Rate: 600 MBps (external)
MAX Seq. Reads Throughput (MiB/s): 530
MAX Seq. Writes Throughput (MiB/s): 480
Random Read Average Latency uSec (4KiB,Q1): 120
Random Write Average Latency uSec (4KiB,Q1): 65
Random Read IOPS (4KiB, Q=16): 58500
Random Write IOPS (4KiB, Q=16): 36500
Max Random Read IOPS (4KiB): 58500@Q32
Max Random Write IOPS (4KiB): 38200@Q16
Expansion & Connectivity
Interfaces: 1 x SATA 6Gb/s
Compatible Bay: 2.5" SFF
Power Consumption
Idle Time: 0.78 Watt
Random Read: 1.61 Watt
Random Write: 1.61 Watt
Sequential Read: 1.69 Watt
Sequential Write: 2.35 Watt
Maximum: 2.43 Watt
Product Dimensions & Weight
Height: 5.00 (12.70 cm)
Width: 7.00 inch (17.78 cm)
Depth: 9.00 inch (22.86 cm)
Weight: 1.10 lbs (0.50 kg)
Compatible Systems
- HPE Apollo 4200 Gen10 (2.5inch)
- HPE ProLiant DL Series: DL20 Gen10 (2.5inch), DL20 Gen10 Entry (2.5inch), DL20 Gen10 Performance (2.5inch), DL20 Gen10 solution (2.5inch), DL325 Gen10 (2.5inch), DL325 Gen10 Entry (2.5inch), DL325 Gen10 Performance (2.5inch), DL325 Gen10 SMB Solution (2.5inch), DL360 Gen10 (2.5inch), DL360 Gen10 Entry (2.5inch), DL360 Gen10 High Performance (2.5inch), DL360 Gen10 Low (2.5inch), DL360 Gen10 Performance (2.5inch), DL360 Gen10 Solution (2.5inch), DL380 Gen10 (2.5inch), DL380 Gen10 Base (2.5inch), DL380 Gen10 Entry (2.5inch), DL380 Gen10 High Performance (2.5inch), DL380 Gen10 Performance (2.5inch), DL380 Gen10 Solution (2.5inch), DL385 Gen10 (2.5inch), DL385 Gen10 Base (2.5inch), DL385 Gen10 Entry (2.5inch), DL385 Gen10 High-Preperformance (2.5inch), DL385 Gen10 High-Performance (2.5inch), DL385 Gen10 Performance (2.5inch), DL385 Gen10 Solution (2.5inch), DL580 Gen10 (2.5inch), DL580 Gen10 Base (2.5inch), DL580 Gen10 Entry (2.5inch), DL580 Gen10 Performance (2.5inch), DL580 Gen9 SAP HANA Scale-out Base Configuration (2.5inch), DL580 Gen9 SAP HANA Scale-up Base Configuration (2.5inch)
- HPE ProLiant ML Series: ML30 Gen10 (2.5inch), ML30 Gen10 Entry (2.5inch), ML30 Gen10 Performance (2.5inch), ML30 Gen10 Performance (2.5inch), ML30 Gen10 Solution (2.5inch), ML30 Gen9 Entry (2.5inch), ML30 Gen9 Solution (2.5inch), ML350 Gen10 Base (2.5inch), ML350 Gen10 Entry (2.5inch), ML350 Gen10 Performance (2.5inch), ML350 Gen10 Solution (2.5inch), ML350 Gen10 Sub-Entry (2.5inch)
- HPE ProLiant XL Series: XL190r Gen10 (2.5inch), XL270d Gen10 (2.5inch)
- HPE Synergy 480 Gen10 Base Compute Module (2.5inch), 480 Gen10 Compute Module (2.5inch), 480 Gen10 Entry Compute Module (2.5inch), 480 Gen10 Performance Compute Module (2.5inch), 480 Gen10 Premium Backplane Compute Module (2.5inch), 480 Gen10 Standard BackPlane Compute Module (2.5inch), 480 Gen10 w/o Drives Compute Module (2.5inch), 660 Gen10 Base Compute Module (2.5inch), 660 Gen10 Compute Module (2.5inch), 660 Gen10 Entry Compute Module (2.5inch), 660 Gen10 Performance Compute Module (2.5inch), 660 Gen10 Premium Compute Module (2.5inch), 680 Gen9 4S-EX Compute Module (2.5inch)
Not sure this drive fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
