Product Information

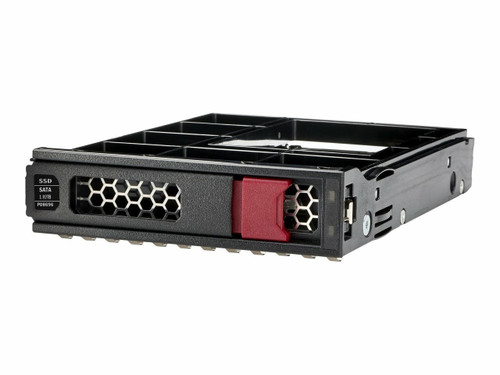

The HPE P07934-B21 gives you 1.92TB of mixed use flash storage in a 3.5 inch large form factor (LFF) SSD with a 6Gb SATA interface. The drive uses MLC NAND and runs HPE digitally signed firmware. It comes in an HPE Low Profile Converter (LPC) for 3.5 inch bays. It is intended for HPE ProLiant Gen9 and Gen10 servers.
Key Features
- 1.92TB capacity
- SATA 6Gb/s interface
- 3.5 inch LFF
- Mixed Use workload
- MLC NAND
- Digitally signed firmware
- HPE Low Profile Converter (LPC)
Condition: Brand New in Factory Sealed Box
Warranty: Up to a 3-Years Manufacturer Warranty and a 30 Days Return Window through us
Specifications
Brand: HPE
MPN: P07934-B21
Option Part Number: P07934-B21
Spare Part Number: P08696-001
Model Number: MK001920GWUGK
Assembly Number: P07444-003
General
Device Type: Solid State Drive - Hot-Swap
Capacity: 1.92 TB
NAND Flash Memory Type: Multi-Level Cell (MLC)
Form Factor: 3.5 inch LFF
Interface: SATA 6Gbps
Plug Type: Hot Pluggable
Carrier Type: Low Profile Converter (LPC)
Workload Type: Mixed Use
Features: Digitally Signed Firmware
Bundled with: HPE Low Profile Converter
Height: 7 mm (0.3 inch) Performance 30 Days Writes: 17500
Endurance DWPD (Drive Writes Per Day): 5
Drive Transfer Rate: 6 Gb/sec (external)
Random Read IOPS (4KiB, Q=16): 59000
Max Random Read IOPS (4KiB): 62000@Q32
Random Write IOPS (4KiB, Q=16): 52500
Max Random Write IOPS (4KiB): 52500@Q16
Expansion & Connectivity
Interfaces: 1 x SATA 6 Gb/s
Compatible Bay: 3.5" LFF Power Requirement Maximum
Power Consumption: 6.80 Watts
Minimum Dimensions & Weight
Height: 14.61 cm (5.75 inch)
Width: 25.40 cm (10.00 inch)
Depth: 21.92 cm (8.63 inch)
Weight: 1.36 kg (3.00 lbs)
Compatible Systems
- HPE Apollo 4200 Gen10 (3.5 inch), 4200 Gen9 (3.5 inch), 4510 Gen9 (3.5 inch)
- HPE ProLiant DL Series: DL20 Gen10 (3.5 inch), DL20 Gen10 Entry (3.5 inch), DL20 Gen10 Performance (3.5 inch), DL20 Gen10 solution (3.5 inch), DL325 Gen10 (3.5 inch), DL325 Gen10 Entry (3.5 inch), DL325 Gen10 Performance (3.5 inch), DL325 Gen10 SMB Solution (3.5 inch)
- HPE ProLiant ML Series: ML110 Gen10 (3.5 inch), ML110 Gen10 Entry (3.5 inch), ML110 Gen10 Performance (3.5 inch), ML110 Gen10 Solution (3.5 inch), ML350 Gen10 (3.5 inch), ML350 Gen10 Base (3.5 inch), ML350 Gen10 Entry (3.5 inch), ML350 Gen10 Performance (3.5 inch), ML350 Gen10 Solution (3.5 inch), ML350 Gen10 Sub-Entry (3.5 inch)
- HPE ProLiant XL Series: XL170r Gen10 (3.5 inch), XL190r Gen10 (3.5 inch)
Not sure this drive fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
