Product Information

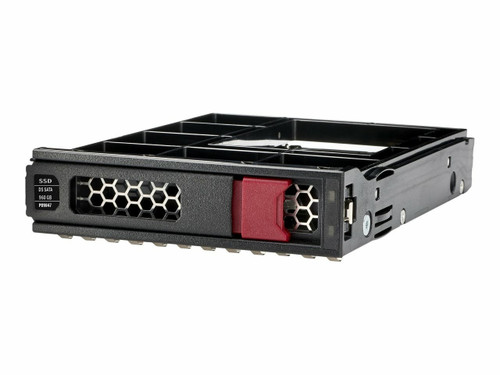

The HPE P09691-B21 gives you 960GB of read intensive flash storage in a 3.5 inch large form factor (LFF) SSD with a 6Gb SATA interface. The drive uses TLC NAND and runs HPE digitally signed firmware. It comes in an HPE Low Profile Converter (LPC) for 3.5 inch bays. It is intended for HPE ProLiant Gen9 and Gen10 servers.
Key Features
- 960GB capacity
- SATA 6Gb/s interface
- 3.5 inch LFF
- Read Intensive workload
- TLC NAND
- Digitally signed firmware
- HPE Low Profile Converter (LPC)
Condition: Brand New in Factory Sealed Box
Warranty: Up to a 3-Years Manufacturer Warranty and a 30 Days Return Window through us
Specifications
Brand: HPE
MPN: P09691-B21
Option Part Number: P09691-B21
Spare Part Number: P09847-001
Model Number: VK000960GWSRT
Assembly Number: P02760-003
General
Device Type: Solid State Drive - Hot-Swap
Capacity: 960 GB
Form Factor: 3.5 inch LFF
Interface: SATA 6Gbps
NAND Flash Memory Type: Triple-Level Cell (TLC)
Connectivity: Single Port
Plug Type: Hot Pluggable
Carrier Type: Low Profile Converter (LPC)
Workload Type: Read Intensive
Features: Digitally Signed Firmware (DS)
Bundled with: HPE Low Profile Converter (LPC)
Platform Supported: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy
Height: 7.00 mm (0.3 inch) Performance 30 Days Writes: 1400
Endurance DWPD (Drive Writes Per Day): 0.80
Drive Transfer Rate: 6 Gb/sec (external)
MAX Seq. Reads Throughput (MiB/s): 535
MAX Seq. Writes Throughput (MiB/s): 495
Random Read Average Latency uSec (4KiB,Q1): 105
Random Write Average Latency uSec (4KiB,Q1): 36
Random Read IOPS (4KiB, Q=16): 65000
Random Write IOPS (4KiB, Q=16): 29000
MAX Random Read IOPS (4KiB): 76000@Q32
MAX Random Write IOPS (4KiB): 29000@Q4
Expansion & Connectivity
Interfaces: 1 x SATA 6 Gb/s
Compatible Bay: 3.5" LFF Power Consumption Idle Time: 1.23 Watt
Random Read: 2.33 Watt
Random Write: 2.33 Watt
Sequential Read: 1.93 Watt
Sequential Write: 2.63 Watt
Random Read/Write: 2.33 Watt
Maximum: 2.63 Watt
Miscellaneous
Compliant Standards: WEEE
Product Dimensions & Weight
Height: 5.74 inch (14.58 cm)
Width: 8.63 inch (21.92 cm)
Depth: 10.00 inch (25.40 cm)
Weight: 3.00 lbs (1.36 kg)
Compatible Systems
- HPE Apollo Series: 4200 Gen9 (3.5 inch)
- HPE ProLiant DL Series: DL180 Gen10 (3.5 inch), DL180 Gen10 Entry (3.5 inch), DL325 Gen10 (3.5 inch), DL325 Gen10 Base (3.5 inch), DL325 Gen10 Entry (3.5 inch), DL325 Gen10 Performance (3.5 inch), DL325 Gen10 SMB Solution (3.5 inch), DL325 Gen10 Solution (3.5 inch)
- HPE ProLiant ML Series: ML110 Gen10 (3.5 inch), ML110 Gen10 Entry (3.5 inch), ML110 Gen10 Performance (3.5 inch), ML110 Gen10 Solution (3.5 inch), ML30 Gen10 (3.5 inch), ML30 Gen10 Entry (3.5 inch), ML30 Gen10 Performance (3.5 inch), ML30 Gen10 Solution (3.5 inch), ML350 Gen10 (3.5 inch), ML350 Gen10 Base (3.5 inch), ML350 Gen10 Entry (3.5 inch), ML350 Gen10 High Performance (3.5 inch), ML350 Gen10 Performance (3.5 inch), ML350 Gen10 SMB (3.5 inch), ML350 Gen10 Solution (3.5 inch), ML350 Gen10 Special Server (3.5 inch), ML350 Gen10 Sub-Entry (3.5 inch)
Not sure this drive fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
