Product Information

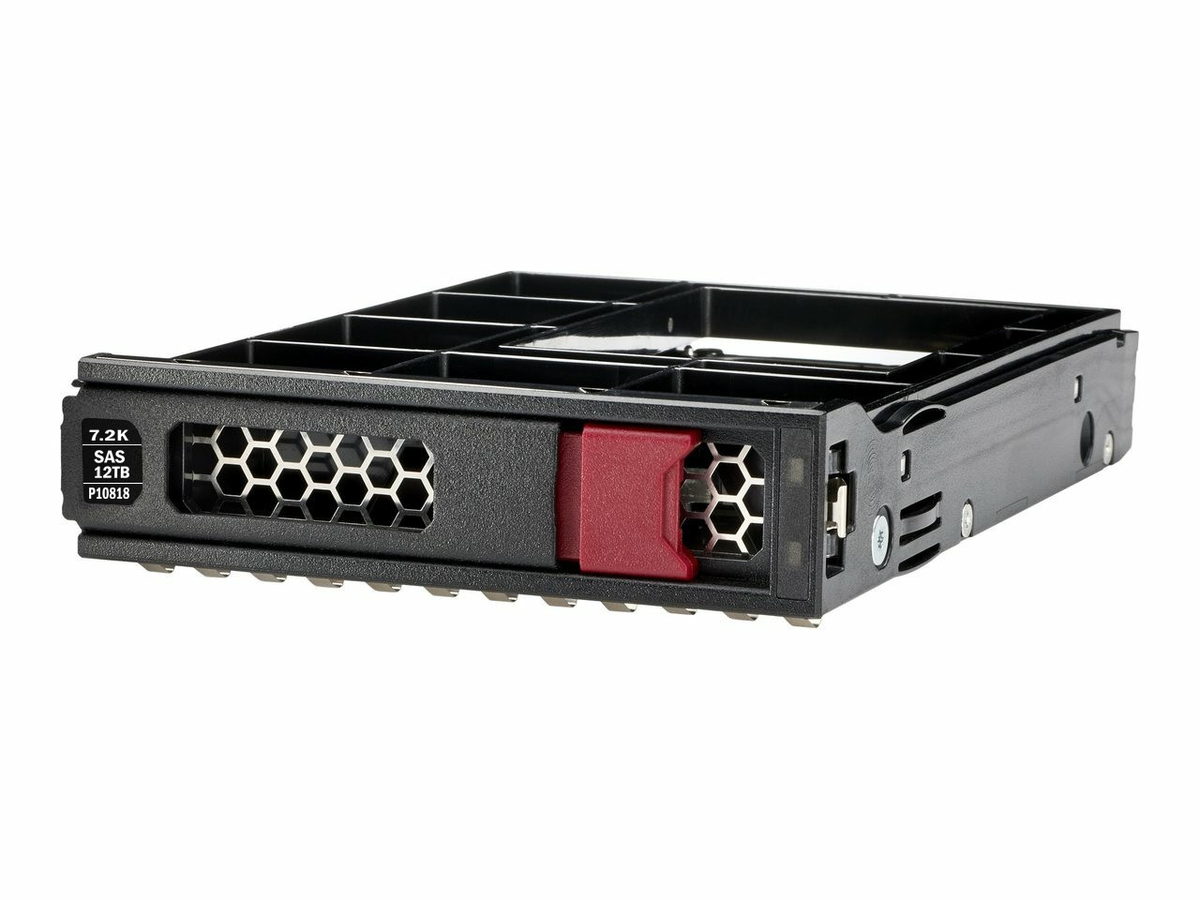

The HPE P10520-K21 is a 12TB midline hard drive that spins at 7,200 RPM. It uses the 3.5 inch large form factor (LFF) with a 12Gb SAS interface and 512e sector format. The drive comes with a low profile carrier. It is intended for HPE ProLiant Gen10 servers.
Key Features
- 12TB capacity at 7.2K RPM
- SAS 12Gb/s interface
- 3.5 inch LFF
- 512e sector format
- Low Profile carrier
- Midline class
Condition: Brand New in Factory Sealed Box
Warranty: Up to a 3-Years Manufacturer Warranty and a 30 Days Return Window through us
Specifications
Brand: HPE
MPN: P10520-K21
Option Part Number: P10520-K21
Spare Part Number: P10818-001
HPE GPN: 877030-001
General
Device Type: Hard Drive - Hot-Swap
Capacity: 12 TB
Interface: SAS 12Gbps
Form Factor: 3.5 inch LFF
Bytes per Sector: 512
Plug Type: Hot Pluggable
Format Type: 512e
Carrier Type: Low Profile (LP)
Workload Type: Midline
Features: Advanced Format 512e
Bundled with: HPE Low Profile Carrier
Platform Supported: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy
Performance
Drive Transfer Rate: 12 Gb/sec (external)
Drive Rotation Speed (RPM): 7200 RPM
Expansion & Connectivity
Compatible Bay: 3.5" LFF
Interfaces: 1 x SAS 12 Gb/s
Environmental Parameters
Min Operating Temperature: 50° F (10°C)
Max Operating Temperature: 95° F (35°C) Minimum Dimensions
Height: 1.00 inch (2.61 cm)
Width: 4.40 inch (10.55 cm)
Depth: 7.40 inch (15.66 cm)
Compatible Systems
- HPE ProLiant DL Series: DL20 Gen10 (3.5 inch), DL20 Gen10 Entry (3.5 inch), DL20 Gen10 Performance (3.5 inch), DL20 Gen10 Solution (3.5 inch)
- HPE ProLiant ML Series: ML110 Gen10 (3.5 inch), ML110 Gen10 Entry (3.5 inch), ML110 Gen10 Performance (3.5 inch), ML110 Gen10 Solution (3.5 inch), ML30 Gen10 (3.5 inch), ML30 Gen10 Entry (3.5 inch), ML30 Gen10 Performance (3.5 inch), ML30 Gen10 Solution (3.5 inch)
Not sure this drive fits your system? Send us your server or storage array model and the DatorPro team will confirm compatibility before you order.
