Product Information

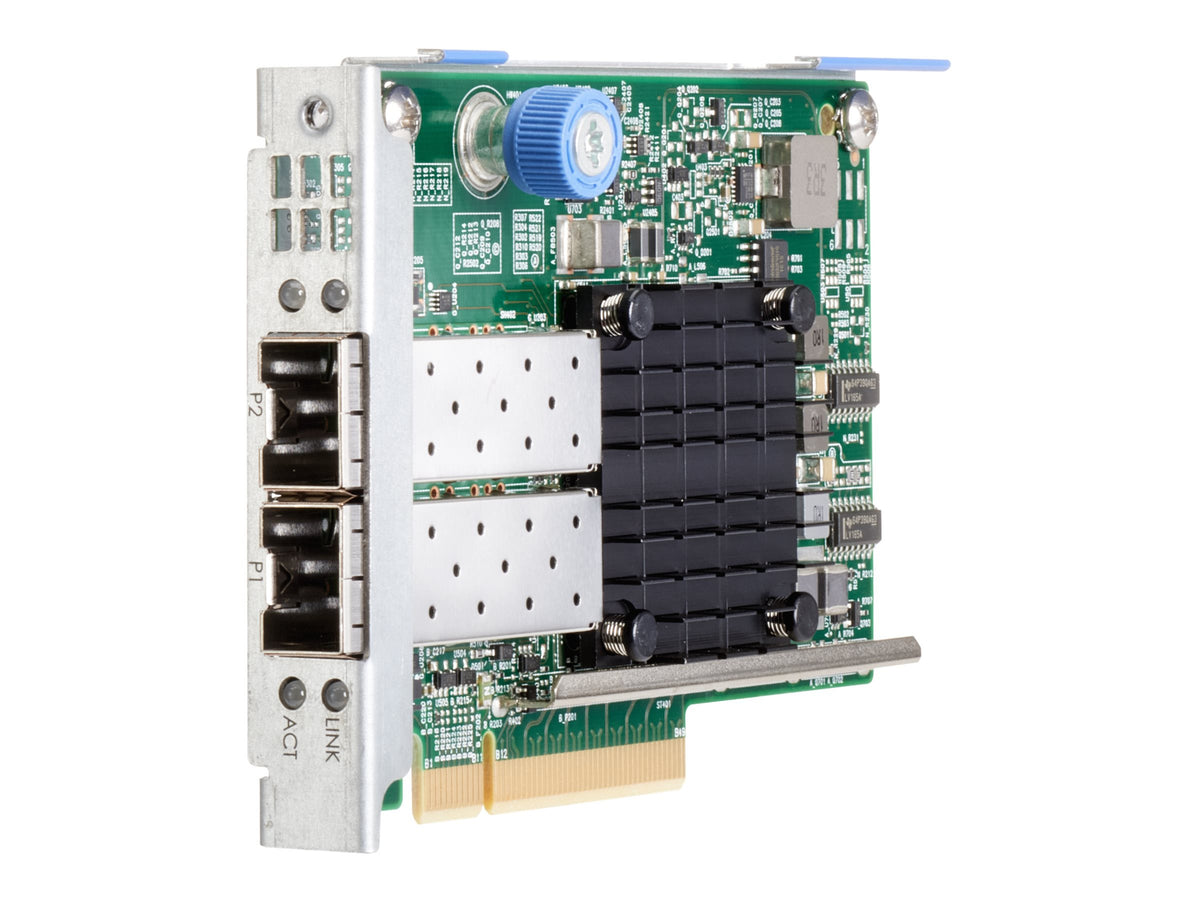

The HPE P12925-001 is a BCM57414 based Ethernet SFP+ adapter with two 10Gb ports, built as a FlexibleLOM card on PCIe 3.0 x8 for density optimized and rack mount HPE ProLiant Gen10 servers.
Key Features
- Single chip 10GbE design that keeps power draw low for two ports
- Good fit for HPC, virtualization, security and server consolidation
- 20Gb total aggregate throughput
- Latest SDN features on a low power PCIe 3.0 x8 card
Condition: New Bulk Pack
Warranty: 90 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: P12925-001
Option Part Number: P08440-B21
Spare Part Number: P12925-001
General
Product Type: Network Adapter
Form Factor: Plug-in card
Platform Supported: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy
Adapter Details
Bus Type: PCI Express 3.0 x8
Connectivity: Wired
Data Link Protocol: 10 Gigabit Ethernet
Transfer Rate: 10 Gbps
IEEE Standards: 802.3, 802.3ae, 802.3x, 802.2x, 802.3ad, 802.1Qaz, 802.1Qau, 802.1Qbb,802.1Qbg, 802.1ax, 1588
Processor: Broadcom
Connections
Supported Cables: 10 Gb - Active Optical Cable (AOC), 10 Gb - Direct Attach Copper Cable (DAC)
Ports: 10 Gigabit SFP+ x 2, 2 x 10Gb Ethernet - SFP+
Software and Compatibility
Supported Operating Systems: Microsoft Windows Server 2012 R2 All editions, Microsoft Semi-Annual Channel Release, Microsoft Windows Server 2016 All editions (LTSC Release), Microsoft Windows Server 2019 (LTSC Release), RHEL 8.0,8.1, 7.6, 7.7, SLES 12 SP3, SP4, SP5, SLES SP1, VMware vSphere 6.5 U2, U3, VMware vSphere 6.7 U2, U3, VMware vSphere 7.0
Size and Weight
Height: 2.43 inch (6.17 cm)
Width: 8.44 inch (21.44 cm)
Depth: 9.72 inch (24.69 cm)
Weight: 0.553 lbs (0.25 kg)
Power and Environment
Compliance: OCP 3.0
Power Draw (typical): 9.08 Watt
Power Draw (max): 14.00 Watt
Compatible Systems
- HPE ProLiant DL Series: DL380 Gen10 All Flash Server for Datera, DL380 Gen10 Hybrid Server for Datera, DL380 Gen10 Network Choice for CTERA
Not sure this adapter fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
