Product Information

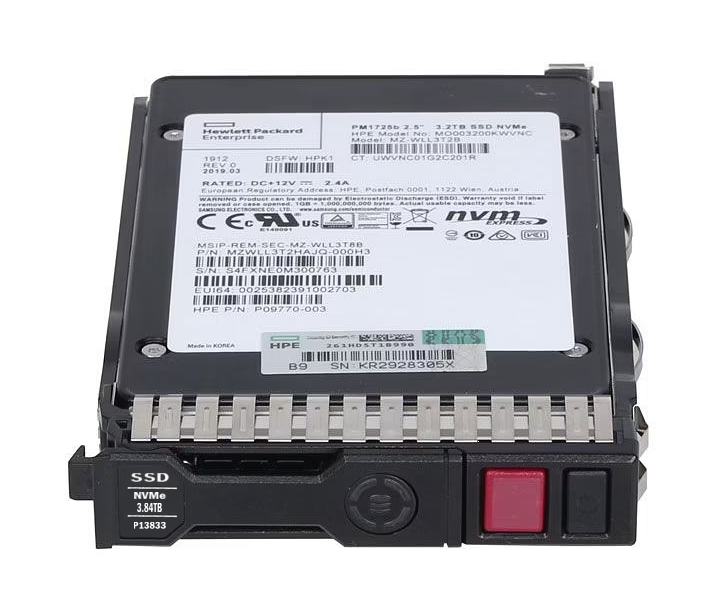

The HPE P13680-B21 gives you 3.84TB of read intensive flash storage in a 2.5 inch small form factor (SFF) NVMe U.2 PCIe x4 SSD. The drive sits in the HPE Mainstream Performance class and runs HPE digitally signed firmware. It ships in an HPE Smart Carrier NVMe (SCN). It is intended for HPE ProLiant Gen10 servers.
Key Features
- 3.84TB capacity
- NVMe U.2 PCIe x4
- 2.5 inch SFF
- Read Intensive workload
- Mainstream Performance
- Digitally signed firmware
- Smart Carrier NVMe (SCN)
Condition: New Bulk Pack
Warranty: 90 Days Warranty
Specifications
Brand: HPE
MPN: P13680-B21
Option Part Number: P13680-B21
Spare Part Number: P13833-001
General
Device Type: Solid State Drive - Hot-Swap
Capacity: 3.84TB
Form Factor: 2.5 inch SFF
NAND Flash Memory
Type: Triple-level cell (TLC)
Connectivity: Single Port
Interface: PCI Express x4 (NVMe)
Plug Type: Hot Pluggable
Carrier Type: Smart Carrier NVMe (SCN)
Workload Type: Read Intensive
Bundled with: HPE Smart Carrier NVMe (SCN)
Features: Digitally Signed Firmware (DS)
Platform Supported: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy
Height: 15.00 mm (0.60 inch) Performance 30 Days Writes: 9461
Endurance DWPD (Drive Writes Per Day): 1.35
MAX Seq. Reads Throughput (MiB/s): 3300
MAX Seq. Writes Throughput (MiB/s): 2350
Random Read Average Latency uSec (4KiB,Q1): 100
Random Write Average Latency uSec (4KiB,Q1): 28
Random Read IOPS (4KiB, Q=16): 155000
Random Write IOPS (4KiB, Q=16): 72000
MAX Random Read IOPS (4KiB): 650000@Q256
MAX Random Write IOPS (4KiB): 83000@Q16
Expansion & Connectivity
Interfaces: 1 x PCIe x4 NVMe
Compatible Bay: 2.5" SFF Power Consumption Idle Time: 3.35 Watt
Random Read: 8.64 Watt
Random Write: 8.64 Watt
Sequential Read: 8.18 Watt
Sequential Write: 11.41 Watt
Random Read/Write: 8.64 Watt
Maximum: 11.41 Watt
Product Dimensions & Weight
Height: 5.00 inch (12.70 cm)
Width: 7.00 inch (17.78 cm)
Depth: 9.00 inch (22.86 cm)
Weight: 1.10 lbs (0.50 kg)
Compatible Systems
- HPE ProLiant DL Series: DL325 Gen10 Base (2.5inch), DL325 Gen10 Solution (2.5inch), DL360 Gen10 All Flash Server for Datera (2.5inch), DL360 Gen10 Entry (2.5inch), DL360 Gen10 High Performance (2.5inch), DL360 Gen10 Low (2.5inch), DL360 Gen10 Network Choice (2.5inch), DL360 Gen10 Performance (2.5inch), DL360 Gen10 Premium (2.5inch), DL360 Gen10 Remote Office Branch Office Server for Cohesity DataPlatform (2.5inch), DL360 Gen10 SMB (2.5inch), DL360 Gen10 SMB Network Choice (2.5inch), DL360 Gen10 Solution (2.5inch), DL380 Gen10 All Flash Server for Datera (2.5inch), DL380 Gen10 Entry (2.5inch), DL380 Gen10 Entry SMB (2.5inch), DL380 Gen10 for Cohesity DataPlatform (2.5inch), DL380 Gen10 High Performance (2.5inch), DL380 Gen10 Hybrid Server for Datera (2.5inch), DL380 Gen10 Network Choice (2.5inch), DL380 Gen10 Network Choice for CTERA (2.5inch), DL380 Gen10 Network Choice for SAP HANA Compute Block (2.5inch), DL380 Gen10 NVMe All Flash Server for Datera (2.5inch), DL380 Gen10 Performance (2.5inch), DL380 Gen10 SMB (2.5inch), DL380 Gen10 SMB Networking Choice (2.5inch), DL380 Gen10 Solution (2.5inch), DL385 Gen10 (2.5inch), DL385 Gen10 Base (2.5inch), DL385 Gen10 Entry (2.5inch), DL385 Gen10 High-Performance (2.5inch), DL385 Gen10 Performance (2.5inch), DL385 Gen10 SMB (2.5inch), DL385 Gen10 Solution (2.5inch), DL388 Gen10 (2.5inch), DL560 Gen10 Base (2.5inch), DL560 Gen10 Performance (2.5inch), DL580 Gen10 (2.5inch), DL580 Gen10 Base (2.5inch), DL580 Gen10 Entry (2.5inch), DL580 Gen10 Performance (2.5inch)
- HPE Synergy Series: 480 Gen10 Base Compute Module (2.5inch), 480 Gen10 Compute Module (2.5inch), 480 Gen10 Entry Compute Module (2.5inch), 480 Gen10 Performance Compute Module (2.5inch), 480 Gen10 Premium Backplane Compute Module (2.5inch), 480 Gen10 Standard BackPlane Compute Module (2.5inch), 480 Gen10 w/o Drives Compute Module (2.5inch), 660 Gen10 Base Compute Module (2.5inch), 660 Gen10 Compute Block (2.5inch), 660 Gen10 Compute Module (2.5inch), 660 Gen10 Entry Compute Module (2.5inch), 660 Gen10 Performance Compute Module (2.5inch), 660 Gen10 Premium Compute Module (2.5inch)
Not sure this SSD fits your server? Send us your server model and the DatorPro team will confirm compatibility before you order.
