Product Information

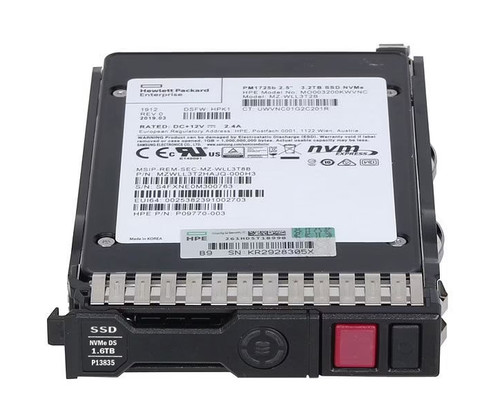

The HPE P13699-H21 gives you 1.6TB of mixed use flash storage in a 2.5 inch small form factor (SFF) NVMe U.2 PCIe x4 SSD. The drive sits in the HPE High Performance class and runs HPE digitally signed firmware. It ships in an HPE Smart Carrier NVMe (SCN). It is intended for HPE ProLiant Gen10 servers.
Key Features
- 1.6TB capacity
- NVMe U.2 PCIe x4
- 2.5 inch SFF
- Mixed Use workload
- High Performance
- Digitally signed firmware
- Smart Carrier NVMe (SCN)
Condition: New Sealed Spare
Warranty: Up to a 1-Year Manufacturer Warranty and a 30 Days Return Window through us
Specifications
Brand: HPE
MPN: P13699-H21
Option Part Number: P13699-H21
Spare Part Number: P13835-001
General
Device Type: Solid State Drive - Hot-Swap
Capacity: 1.6 TB
Form Factor: 2.5 inch SFF
Interface: PCI Express x4 (NVMe)
Plug Type: Hot Pluggable
Carrier Type: Smart Carrier NVMe (SCN)
Workload Type: Mixed Use
NAND Flash Memory
Type: Triple-Level Cell (TLC)
Connectivity: Single Port
Bundled with: HPE Smart Carrier NVMe (SCN)
Features: Digitally Signed Firmware (DS)
Platform Supported: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy
Height: 15.00 mm (0.60 inch)
Performance
30 Days Writes: 12250
Endurance DWPD (Drive Writes Per Day): 4.10
MAX Seq Reads Throughput (MiB/s): 3200
Max Seq Writes Throughput (MiB/s): 1500
Random Read Avg. Latency uSec (4KiB,Q1): 83
Random Write Avg. Latency uSec (4KiB,Q1): 18
Random Read IOPS (4KiB, Q=16): 165000
Random Write IOPS (4KiB, Q=16): 200000
Max Random Read IOPS (4KiB): 660000@Q256
Max Random Write IOPS (4KiB): 205000@Q32
Expansion & Connectivity
Interfaces: 1 x PCI Express x4 (NVMe)
Compatible Bay: 2.5" SFF
Power Consumption
Idle Time: 4.38 Watt
Random Read: 10.49 Watt
Random Write: 10.49 Watt
Sequential Read: 10.49 Watt
Sequential Write: 8.90 Watt
Random Read/Write: 11.83 Watt
Maximum: 11.83 Watt
Product Dimensions & Weight
Height: 5.00 (12.70 cm)
Width: 7.00 inch (17.78 cm)
Depth: 9.00 inch (22.86 cm)
Weight: 1.10 lbs (0.50 kg)
Compatible Systems
- HPE Nimble Storage dHCI Large Solution with HPE ProLiant DL380 Gen10 (2.5inch), Medium Solution with HPE ProLiant DL360 Gen10 (2.5inch), Small Solution with HPE ProLiant DL360 Gen10 (2.5inch)
- HPE ProLiant DL Series: DL325 Gen10 (2.5inch), DL325 Gen10 Entry (2.5inch), DL325 Gen10 Performance (2.5inch), DL325 Gen10 Plus (2.5inch), DL325 Gen10 Plus All-NVMe Flash Node for Qumulo (2.5inch), DL325 Gen10 Plus for Weka BAse Tracking (2.5inch), DL325 Gen10 Plus for Weka Expansion Tracking (2.5inch), DL325 Gen10 SMB Solution (2.5inch), DL360 Gen10 All Flash Server for Datera (2.5inch), DL360 Gen10 All Flash Server for Weka (2.5inch), DL360 Gen10 Compute Server for Cohesity DataPlatform (2.5inch), DL360 Gen10 Low (2.5inch), DL360 Gen10 Network Choice (2.5inch), DL360 Gen10 Performance for Cohesity DataPlatform (2.5inch), DL360 Gen10 SMB (2.5inch), DL360 Gen10 SMB Network Choice (2.5inch), DL360 Gen10 Solution (2.5inch), DL380 Gen10 All Flash Server for Datera (2.5inch), DL380 Gen10 Entry SMB (2.5inch), DL380 Gen10 for Cohesity DataPlatform (2.5inch), DL380 Gen10 for SAP HANA Compute Block (2.5inch), DL380 Gen10 Hybrid Server for Datera (2.5inch), DL380 Gen10 Network Choice (2.5inch), DL380 Gen10 Network Choice for CTERA (2.5inch), DL380 Gen10 Network Choice for SAP HANA Compute Block (2.5inch), DL380 Gen10 Server for CTERA (2.5inch), DL380 Gen10 SMB (2.5inch), DL380 Gen10 SMB Networking Choice (2.5inch), DL380 Gen10 Solution (2.5inch), DL385 Gen10 (2.5inch), DL385 Gen10 Base (2.5inch), DL385 Gen10 Entry (2.5inch), DL385 Gen10 High-Performance (2.5inch), DL385 Gen10 Performance (2.5inch), DL385 Gen10 SMB (2.5inch), DL385 Gen10 Solution (2.5inch), DL388 Gen10 (2.5inch), DL560 Gen10 for SAP HANA Compute Block (2.5inch), DL580 Gen10 (2.5inch), DL580 Gen10 Base (2.5inch), DL580 Gen10 Entry (2.5inch), DL580 Gen10 Performance (2.5inch), DX360 Gen10 (2.5inch)
- HPE ProLiant ML Series: ML350 Gen10 Base (2.5inch), ML350 Gen10 High Performance (2.5inch), ML350 Gen10 Performance (2.5inch), ML350 Gen10 SMB (2.5inch), ML350 Gen10 Solution (2.5inch), ML350 Gen10 Special Server (2.5inch), ML350 Gen10 Sub-Entry (2.5inch)
Not sure this SSD fits your server? Send us your server model and the DatorPro team will confirm compatibility before you order.
