Product Information

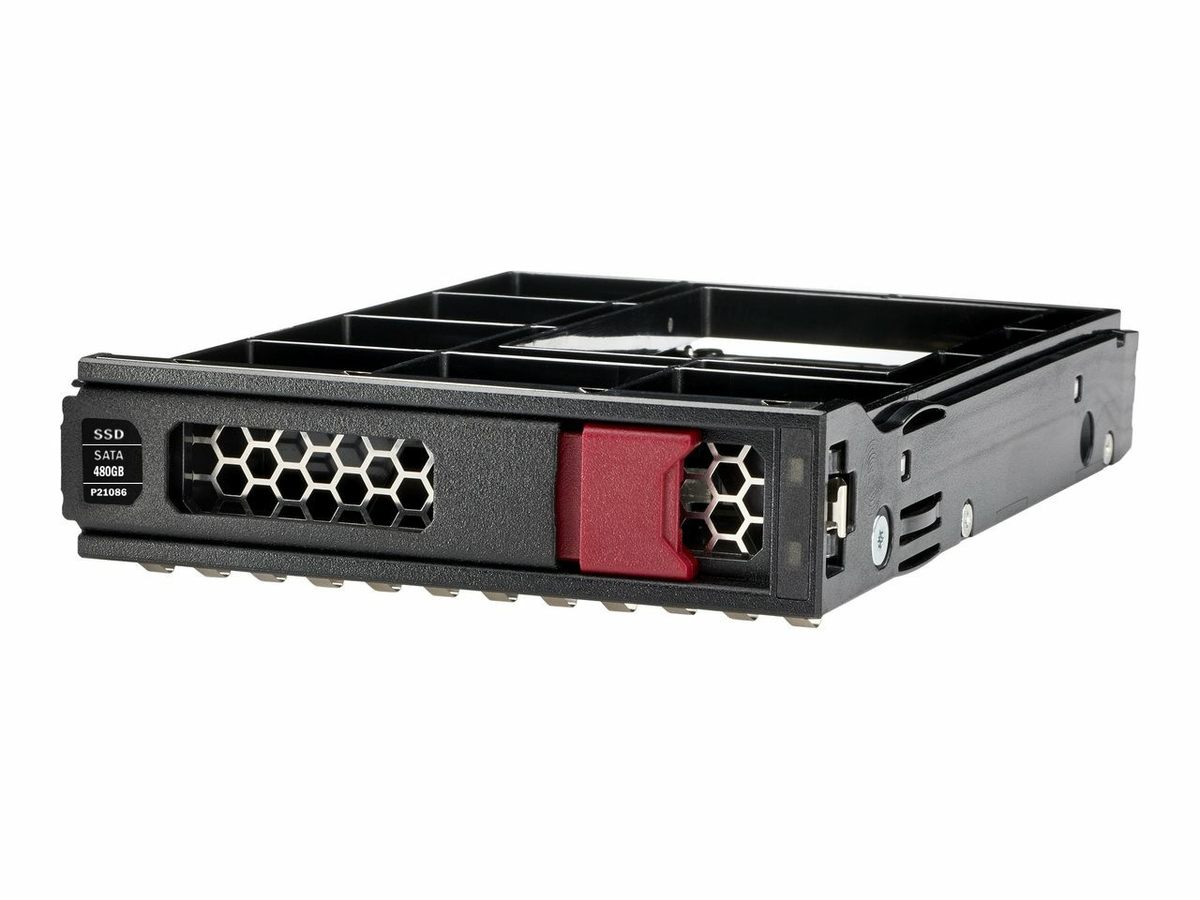

The HPE P19974-B21 is a 480GB read intensive solid state drive in the 3.5 inch large form factor (LFF) with a 6Gb SATA interface. The drive runs HPE digitally signed firmware. It comes in an HPE Low Profile Converter (LPC) for 3.5 inch bays. It is intended for HPE ProLiant Gen10 servers.
Key Features
- 480GB capacity
- SATA 6Gb/s interface
- 3.5 inch LFF
- Read Intensive workload
- Digitally signed firmware
- HPE Low Profile Converter (LPC)
Condition: New Bulk Pack
Warranty: 90 Days Warranty
Specifications
Brand: HPE
MPN: P19974-B21
Option Part Number: P19974-B21
Spare Part Number: P21086-001
General
Device Type: Solid State Drive - Hot-Swap
Capacity: 480 GB
Form Factor: 3.5 inch LFF
Interface: SATA 6Gbps
NAND Flash Memory Type: Triple-level cell (TLC)
Plug Type: Hot Pluggable
Connectivity: Single Port
Carrier Type: Low Profile Converter (LPC)
Workload Type: Read Intensive
Bundled with: HPE Low Profile Converter (LPC)
Features: Digitally Signed Firmware (DS)
Platform Supported: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy
Height: 7 mm Performance 30 Days Writes: 1324
Endurance DWPD (Drive Writes Per Day): 1.50
Drive Transfer Rate: 6 Gbps (external)
MAX Seq. Reads Throughput (MiB/s): 510
MAX Seq. Writes Throughput (MiB/s): 395
Random Read Average Latency uSec (4KiB,Q1): 125
Random Write Average Latency uSec (4KiB,Q1): 38
Random Read IOPS (4KiB, Q=16): 65000
Random Write IOPS (4KiB, Q=16): 38500
MAX Random Read IOPS (4KiB): 75000@Q256
MAX Random Write IOPS (4KiB): 40000@Q4
Expansion & Connectivity
Interfaces: 1 x SATA 6 Gb/s
Compatible Bay: 3.5" LFF Power Consumption Idle Time: 1.16 Watt
Random Read: 1.45 Watt
Random Write: 1.45 Watt
Sequential Read: 1.91 Watt
Sequential Write: 2.61 Watt
Random Read/Write: 1.45 Watt
MAX: 2.61 Watt
Product Dimensions & Weight
Height: 5.50 (13.97 cm)
Width: 5.75 inch (14.61 cm)
Depth: 8.75 inch (22.23 cm)
Weight: 3.00 lbs (1.36 kg)
Compatible Systems
- HPE Nimble Storage dHCI Medium Solution with HPE ProLiant DL325 Gen10 Plus (3.5inch)
- HPE ProLiant DL Series: DL160 Gen10 (3.5inch), DL160 Gen10 Base (3.5inch), DL160 Gen10 Entry (3.5inch), DL160 Gen10 SMB (3.5inch), DL180 Gen10 (3.5inch), DL180 Gen10 Base (3.5inch), DL180 Gen10 Entry (3.5inch), DL180 Gen10 SMB (3.5inch), DL20 Gen10 (3.5inch), DL20 Gen10 Entry (3.5inch), DL20 Gen10 Performance (3.5inch), DL20 Gen10 solution (3.5inch), DL325 Gen10 (3.5inch), DL325 Gen10 Base (3.5inch), DL325 Gen10 Entry (3.5inch), DL325 Gen10 Performance (3.5inch), DL325 Gen10 Plus (3.5inch), DL325 Gen10 Plus All-NVMe Flash Node for Qumulo (3.5inch), DL325 Gen10 Plus for Weka Expansion Tracking (3.5inch), DL325 Gen10 Plus V2 (3.5inch), DL325 Gen10 Plus V2 Base (3.5inch), DL325 Gen10 SMB Solution (3.5inch), DL325 Gen10 Solution (3.5inch), DL345 Gen10 Plus (3.5inch), DL345 Gen10 Plus Base (3.5inch), DL345 Gen10 Plus Entry (3.5inch), DL360 Gen10 Plus (3.5inch), DL380 Gen10 Plus Network Choice (3.5inch), DL385 Gen10 Plus (3.5inch), DL385 Gen10 Plus Entry (3.5inch), DL385 Gen10 Plus V2 (3.5inch)
- HPE ProLiant ML Series: ML110 Gen10 (3.5inch), ML110 Gen10 Entry (3.5inch), ML110 Gen10 Performance (3.5inch), ML110 Gen10 Solution (3.5inch), ML30 Gen10 (3.5inch), ML30 Gen10 Entry (3.5inch), ML30 Gen10 Performance (3.5inch), ML30 Gen10 Solution (3.5inch), ML350 Gen10 (3.5inch), ML350 Gen10 Base (3.5inch), ML350 Gen10 Entry (3.5inch), ML350 Gen10 High Performance (3.5inch), ML350 Gen10 Performance (3.5inch), ML350 Gen10 SMB (3.5inch), ML350 Gen10 Solution (3.5inch), ML350 Gen10 Special Server (3.5inch), ML350 Gen10 Sub-Entry (3.5inch)
Not sure this drive fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
