Product Information

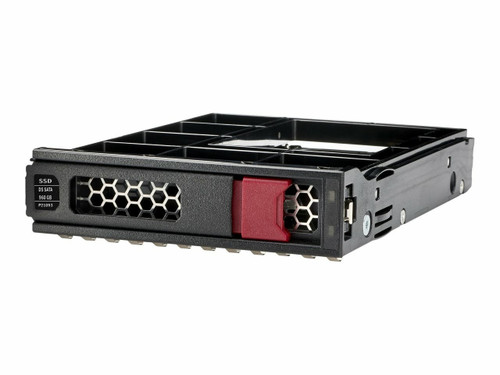

The HPE P19980-B21 is a 960GB mixed use solid state drive in the 3.5 inch large form factor (LFF) with a 6Gb SATA interface. The drive uses TLC NAND and runs HPE digitally signed firmware. It comes in an HPE Low Profile Converter (LPC) for 3.5 inch bays. It is intended for HPE ProLiant Gen10 servers.
Key Features
- 960GB capacity
- SATA 6Gb/s interface
- 3.5 inch LFF
- Mixed Use workload
- TLC NAND
- Digitally signed firmware
- HPE Low Profile Converter (LPC)
Condition: New Bulk Pack
Warranty: 90 Days Warranty
Specifications
Brand: HPE
MPN: P19980-B21
Option Part Number: P19980-B21
Spare Part Number: P21093-001
General
Device Type: Solid State Drive - Hot-Swap
Capacity: 960GB
Form Factor: 3.5 inch LFF
Interface: SATA 6Gbps
NAND Flash Memory Type: Triple-level cell (TLC)
Connectivity: Single Port
Plug Type: Hot Pluggable
Carrier Type: Low Profile Converter (LPC)
Workload Type: Mixed Use
Bundled with: HPE Low Profile Converter (LPC)
Features: Digitally Signed Firmware (DS)
Platform Supported: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy
Height: 7.00 mm (0.3 inch)
Performance
30 Days Writes: 8760
Endurance DWPD (Drive Writes Per Day): 5
Drive Transfer Rate (External): 6 Gb/sec
Random Read IOPS (4KiB, Q=16): 67000
Max Random Read IOPS (4KiB): 75000@Q256
Random Write IOPS (4KiB, Q=16): 52000
Max Random Write IOPS (4KiB): 52000@Q4
MAX Seq Reads Throughput (MiB/s): 520
Max Seq Writes Throughput (MiB/s): 490
Random Read Avg. Latency uSec (4KiB,Q1): 125
Random Write Avg. Latency uSec (4KiB,Q1): 37
Expansion & Connectivity
Interfaces: 1 x SAS 6 Gb/s
Compatible Bay: 3.5" LFF
Power Consumption
Idle Time: 1.17 Watt
Random Read: 1.47 Watt
Random Write: 1.47 Watt
Sequential Read: 2.29 Watt
Sequential Write: 2.97 Watt
Random Read/Write: 1.47 Watt
Maximum: 2.97
Product Dimensions & Weight
Height: 5.50 inch (13.97 cm)
Width: 5.75 inch (14.61 cm)
Depth: 8.75 inch (22.23 cm)
Weight: 3.00 lbs (1.36 kg)
Compatible Systems
- HPE ProLiant DL Series: DL160 Gen10 (3.5 inch), DL160 Gen10 Base (3.5 inch), DL160 Gen10 Entry (3.5 inch), DL180 Gen10 (3.5 inch), DL180 Gen10 Base (3.5 inch), DL180 Gen10 SMB (3.5 inch), DL20 Gen10 (3.5 inch), DL20 Gen10 Entry (3.5 inch), DL20 Gen10 Performance (3.5 inch), DL20 Gen10 solution (3.5 inch), DL325 Gen10 (3.5 inch), DL325 Gen10 Base (3.5 inch), DL325 Gen10 Entry (3.5 inch), DL325 Gen10 Performance (3.5 inch), DL325 Gen10 Plus (3.5 inch), DL325 Gen10 SMB Solution (3.5 inch), DL325 Gen10 Solution (3.5 inch), DL385 Gen10 Plus (3.5 inch), DL385 Gen10 Plus Entry (3.5 inch)
- HPE ProLiant ML Series: ML30 Gen10 (3.5 inch), ML30 Gen10 Entry (3.5 inch), ML30 Gen10 Performance (3.5 inch), ML30 Gen10 Solution (3.5 inch), ML350 Gen10 (3.5 inch), ML350 Gen10 Base (3.5 inch), ML350 Gen10 Entry (3.5 inch), ML350 Gen10 High Performance (3.5 inch), ML350 Gen10 Performance (3.5 inch), ML350 Gen10 SMB (3.5 inch), ML350 Gen10 Solution (3.5 inch), ML350 Gen10 Special Server (3.5 inch), ML350 Gen10 Sub-Entry (3.5 inch)
Not sure this drive fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
