Product Information

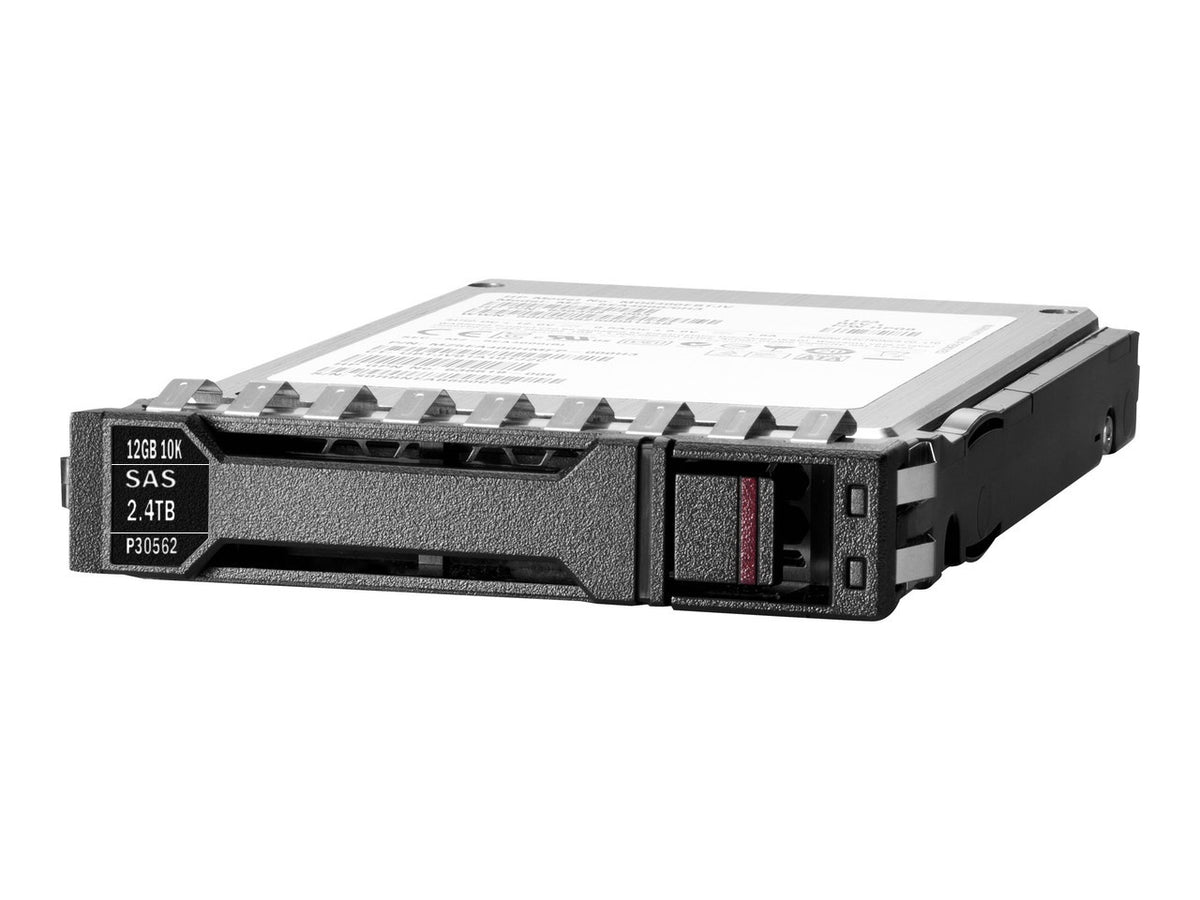

The HPE P30562-001 is a 2.4TB, 10,000 RPM Mission Critical multi vendor hard drive. It uses the 2.5 inch small form factor (SFF) with a 12Gb SAS interface. The drive comes with an HPE Basic Carrier. It is intended for HPE ProLiant Gen10 Plus servers.
Key Features
- 2.4TB capacity at 10K RPM
- SAS 12Gb/s interface
- 2.5 inch SFF
- Basic Carrier
- Mission Critical multi vendor class
Condition: Brand New in Factory Sealed Box
Warranty: Up to a 3-Years Manufacturer Warranty and a 30 Days Return Window through us
Specifications
Brand: HPE
MPN: P30562-001
Option Part Number: P28352-B21
Spare Part Number: P30562-001
General
Device Type: Hard Drive - Hot-Swap
Capacity: 2.4 TB
Form Factor: 2.5 inch SFF
Interface: SAS 12Gbps
Bytes per Sector: 512
Drive Technology (Fill): Air
Plug Type: Hot Plug
Format Type: 512e
Carrier Type: Basic Carrier (BC)
Workload: Mission Critical
Features: Advanced format 512e
Bundled with: HPE Basic Carrier
Performance
Drive Transfer Rate: 12 Gbps (external)
Spindle Speed: 10000 RPM
OD Media Rate, Max Sequential Throughput (MiB/s): 255
128Kib Random Rd (IOPs): 160
128Kib Random 70% RD/ 30% WT (IOPs): 180
128Kib Random 50% RD/ 50% WT (IOPs): 190
Expansion & Connectivity
Interfaces: 1 x SAS 12 Gb/s
Compatible Bay: 2.5" SFF
Environmental Parameters
Min Operating Temperature: 50° F (10°C)
Max Operating Temperature: 95° F (35°C)
Power Requirement
Idle Time: 4.80 Watt
Random R/W: 6.00 Watt
Sequential Read: 7.80 Watt
Sequential Write: 6.60 Watt
Product Dimensions & Weight
Height: 5.75 (14.61 cm)
Width: 8.63 inch (21.92 cm)
Depth: 9.00 inch (22.86 cm)
Weight: 1.10 lbs (0.50 kg)
Compatible Systems
- HPE ProLiant DL Series: DL325 Gen10 Plus V2 (2.5inch), DL325 Gen10 Plus V2 Base (2.5inch), DL345 Gen10 Plus (2.5inch), DL345 Gen10 Plus Base (2.5inch), DL345 Gen10 Plus Entry (2.5inch), DL360 Gen10 Plus (2.5inch), DL360 Gen10 Plus Network Choice (2.5inch), DL365 Gen10 Plus (2.5inch), DL380 Gen10 Plus Network Choice (2.5inch)
Not sure this drive fits your system? Send us your server or storage array model and the DatorPro team will confirm compatibility before you order.
