Product Information

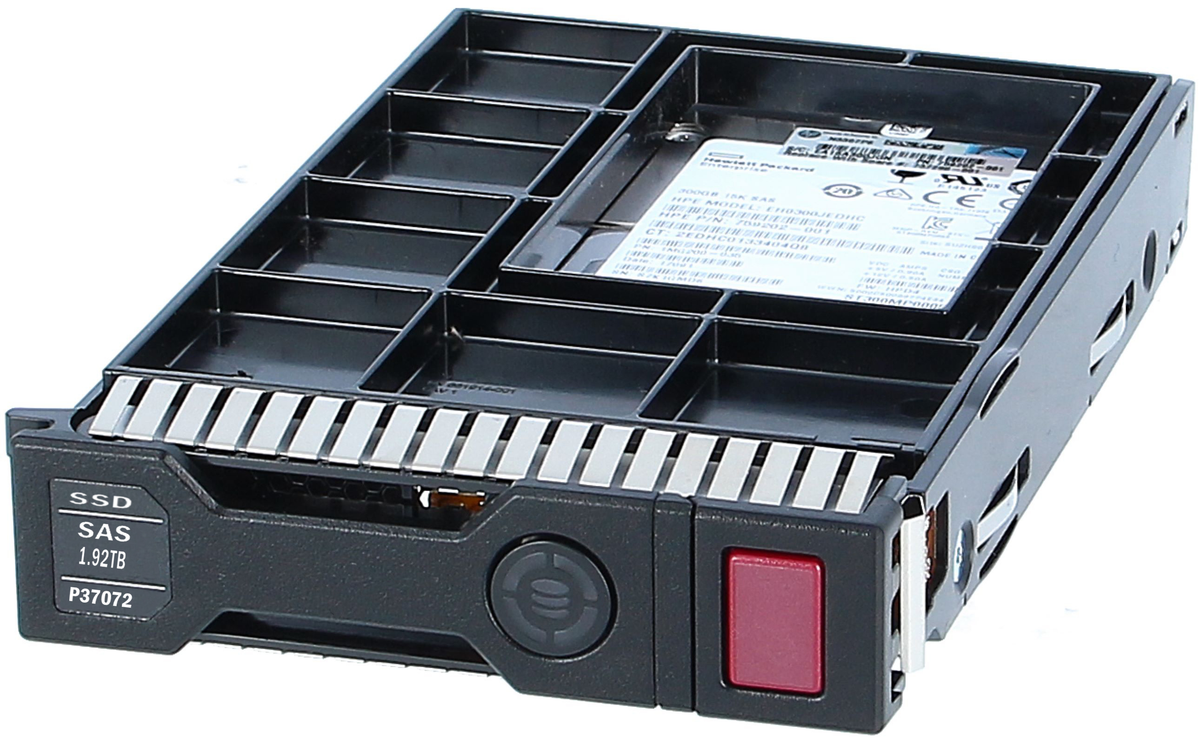

The HPE P37013-K21 gives you 1.92TB of mixed use flash storage in a 3.5 inch large form factor (LFF) SSD with a 12Gb SAS interface. The drive belongs to the HPE Value SAS line as a multi vendor part and runs HPE digitally signed firmware. It comes in an HPE Smart Carrier Converter (SCC) for 3.5 inch bays. It is intended for HPE ProLiant Gen10 servers.
Key Features
- 1.92TB capacity
- SAS 12Gb/s interface
- 3.5 inch LFF
- Mixed Use workload
- Value SAS, multi vendor
- Digitally signed firmware
- HPE Smart Carrier Converter (SCC)
Condition: Brand New in Factory Sealed Box
Warranty: Up to a 3-Years Manufacturer Warranty and a 30 Days Return Window through us
Specifications
Brand: HPE
MPN: P37013-K21
Option Part Number: P37013-K21
Spare Part Number: P37072-001
General
Device Type: Solid State Drive - Hot-Swap
Capacity: 1.92 TB
Form Factor: 3.5 inch LFF
Interface: SAS 12Gbps
NAND Flash Memory
Type: Triple-Level Cell (TLC)
Plug Type: Hot Pluggable
Connectivity: Single Port
Carrier Type: Smart Carrier Converter (SCC)
Workload Type: Mixed Use
Features: Digitally Signed Firmware, HPE Value SAS
Bundled with: HPE Smart Carrier Converter
Platform Supported: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy
Height: 15.00 mm (0.60 inch) Performance 30 Days Writes: 10500
Endurance DWPD (Drive Writes Per Day): 3
Drive Transfer Rate (external): 12 Gb/sec
MAX Seq. Reads Throughput (MiB/s): 810
MAX Seq. Writes Throughput (MiB/s): 635
Random Read Average Latency uSec (4KiB,Q1): 140
Random Write Average Latency uSec (4KiB,Q1): 38
Random Read IOPS (4KiB, Q=16): 96000
Random Write IOPS (4KiB, Q=16): 51000
Max Random Read IOPS (4KiB): 155000@Q2
Max Random Write IOPS (4KiB): 52000@Q4
Expansion & Connectivity
Compatible Bay: 3.5" LFF
Interfaces: 1 x SAS 12 Gb/s Power Consumption Idle Time: 4.67 Watt
Random Read: 5.35 Watt
Random Write: 5.35 Watt
Sequential Read: 7.11 Watt
Sequential Write: 6.25 Watt
Random Read/Write: 5.35 Watt
Maximum: 7.11 Watt
Product Dimensions & Weight
Height: 5.75 (14.61 cm)
Width: 8.63 inch (21.92 cm)
Depth: 9.00 inch (22.86 cm)
Weight: 1.10 lbs (0.50 kg)
Compatible Systems
- HPE ProLiant DL Series: DL60 (Gen10) DL80 (Gen10) DL160 (Gen10) DL360 (Gen10) DL380 (Gen10) DL385 (Gen10) DL388 (Gen10) DL560 (Gen10) DL20 (Gen9) DL60 (Gen9) DL80 (Gen9) DL120 (Gen8 Gen9) DL160 (Gen8 Gen9) DL180 (Gen8 Gen9) DL320e (Gen8 Gen9) DL360e (Gen8 Gen9) DL360p (Gen8 Gen9) DL380e (Gen8 Gen9) DL380p (Gen8 Gen9) DL388 (Gen8 Gen9) DL560 (Gen8 Gen9)
- HPE ProLiant ML Series: ML350 (Gen10) ML110 (Gen8 Gen9) ML150 (Gen8 Gen9) ML310e (Gen8 Gen9) ML350 (Gen8 Gen9) ML350e (Gen8 Gen9)
- HPE ProLiant BL Series: BL420c (Gen8 Gen9) BL460c (Gen8 Gen9) BL465c (Gen8 Gen9)
- HPE ProLiant SL Series: SL200t (Gen8 Gen9) SL230s (Gen8 Gen9) SL250s (Gen8 Gen9) SL2500 SL4550 (Gen8 Gen9) SL4545 (Gen8 Gen9) SL454x
- HPE Storage Arrays: D3600 D3700
- HPE StoreEasy: 1430 1440 1530 1540 1630 1640
Not sure this drive fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
