Product Information

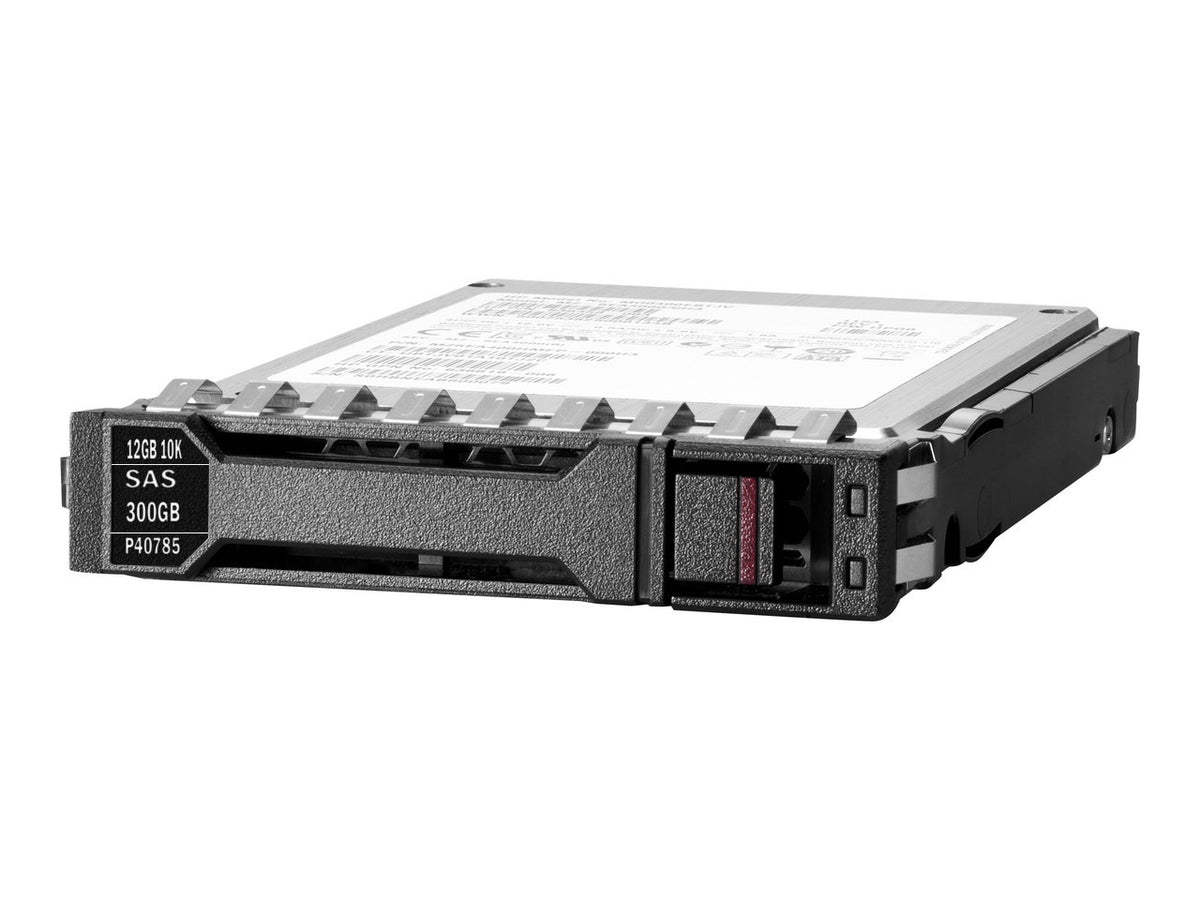

The HPE P40430-X21 is a 300GB, 10,000 RPM Mission Critical multi vendor hard drive. It uses the 2.5 inch small form factor (SFF) with a 12Gb SAS interface and 512n sector format. The drive comes with an HPE Basic Carrier. It is intended for HPE ProLiant Gen10 Plus servers.
Key Features
- 300GB capacity at 10K RPM
- SAS 12Gb/s interface
- 2.5 inch SFF
- 512n sector format
- Basic Carrier
- Mission Critical multi vendor class
Condition: Brand New in Factory Sealed Box
Warranty: Up to a 3-Years Manufacturer Warranty and a 30 Days Return Window through us
Specifications
Brand: HPE
MPN: P40430-X21
Option Part Number: P40430-X21
Spare Part Number: P40785-001
General
Device Type: Hard Drive - Hot-Swap
Capacity: 300 GB
Form Factor: 2.5 inch SFF
Interface: SAS 12Gbps
Bytes per Sector: 512
Drive Technology (Fill): Air
Plug Type: Hot Plug
Format Type: 512n
Carrier Type: Basic Carrier (BC)
Workload: Mission Critical
Features: Advanced format 512n
Bundled with: HPE Basic Carrier
Performance
Drive Transfer Rate: 12 Gbps (external)
Spindle Speed: 10000 RPM
OD Media Rate, Max Sequential Throughput (MiB/s): 195
128Kib Random Rd (IOPs): 180
128Kib Random 70% RD/ 30% WT (IOPs): 180
128Kib Random 50% RD/ 50% WT (IOPs): 180
Expansion & Connectivity
Interfaces: 1 x SAS 12 Gb/s
Compatible Bay: 2.5" SFF
Power Requirement
Idle Time: 3.80 Watt
Random R/W: 6.90 Watt
Sequential Read: 6.10 Watt
Sequential Write: 5.30 Watt
Product Dimensions & Weight
Height: 5.75 inch (14.61 cm)
Width: 8.63 inch (21.92 cm)
Depth: 9.00 inch (22.86 cm)
Weight: 1.10 lbs (0.50 kg)
Environmental Parameters
Min Operating Temperature: 50 °F
Max Operating Temperature: 95 °F
Compatible Systems
- HPE ProLiant DL Series: DL20 Gen10 Plus (2.5inch), DL20 Gen10 Plus Base (2.5inch), DL20 Gen10 Plus Entry (2.5inch), DL20 Gen10 Plus High Performance (2.5inch), DL20 Gen10 Plus Performance (2.5inch), DL325 Gen10 Plus V2 (2.5inch), DL325 Gen10 Plus V2 Base (2.5inch), DL325 Gen10 Plus V2 for Weka Base Tracking (2.5inch), DL325 Gen10 Plus V2 Performance (2.5inch), DL345 Gen10 Plus (2.5inch), DL345 Gen10 Plus Base (2.5inch), DL345 Gen10 Plus Entry (2.5inch), DL360 Gen10 Plus (2.5inch), DL360 Gen10 Plus All-NVMe Server for Software Defined Storage (2.5inch), DL360 Gen10 Plus for Weka Base Tracking (2.5inch), DL360 Gen10 Plus Network Choice (2.5inch), DL365 Gen10 Plus (2.5inch), DL380 Gen10 Plus (2.5inch), DL380 Gen10 Plus Network Choice (2.5inch)
- HPE ProLiant ML Series: ML30 Gen10 Plus (2.5inch), ML30 Gen10 Plus Entry (2.5inch), ML30 Gen10 Plus Performance (2.5inch)
- HPE SimpliVity 325 Gen10 Plus V2 Node (2.5inch)
Not sure this drive fits your system? Send us your server or storage array model and the DatorPro team will confirm compatibility before you order.
