Product Information

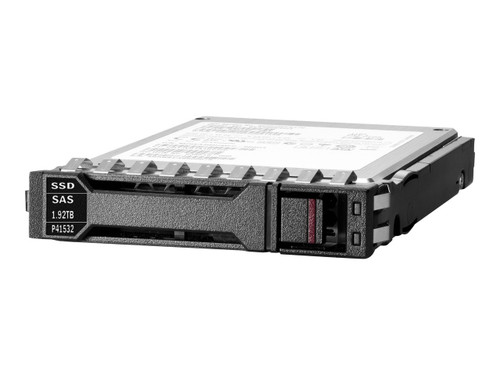

The HPE P40507-K21 is a 1.92TB read intensive solid state drive in the 2.5 inch small form factor (SFF) with a 12Gb SAS interface. The drive belongs to the HPE Value SAS line as a multi vendor part and runs HPE digitally signed firmware. It comes in an HPE Basic Carrier (BC). It is intended for HPE ProLiant Gen10 Plus servers.
Key Features
- 1.92TB capacity
- SAS 12Gb/s interface
- 2.5 inch SFF
- Read Intensive workload
- Value SAS, multi vendor
- Digitally signed firmware
- HPE Basic Carrier (BC)
Condition: New Bulk Pack
Warranty: 90 Days Warranty
Specifications
Brand: HPE
MPN: P40507-K21
Option Part Number: P40507-K21
Spare Part Number: P41532-001
General
Device Type: Solid State Drive - Hot-Swap
Capacity: 1.92 TB
Form Factor: 2.5 inch SFF
Interface: SAS 12Gbps
NAND Flash Memory
Type: Triple-level cell (TLC)
Plug Type: Hot Pluggable
Connectivity
Type: Single Port
Carrier Type: Basic Carrier (BC)
Workload Type: Read Intensive
Bundled with: HPE Basic Carrier (BC)
Features: Digitally Signed Firmware (DS)
Platform Supported: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy
Height: 15.00 mm (0.60 inch)
Performance
30 Days Writes (TB): 3500
Endurance DWPD (Drive Writes Per Day): 1
Drive Transfer Rate: 12 Gbps (external)
MAX Seq. Reads Throughput (MiB/s): 810
MAX Seq. Writes Throughput (MiB/s): 620
Random Read Average Latency uSec (4KiB,Q1): 140
Random Write Average Latency uSec (4KiB,Q1): 35
Random Read IOPS (4KiB, Q=16): 97000
Random Write IOPS (4KiB, Q=16): 36000
MAX Random Read IOPS (4KiB): 15500@Q32
MAX Random Write IOPS (4KiB): 36000@Q4
Expansion & Connectivity
Interfaces: 1 x SAS 12 Gb/s
Compatible Bay: 2.5" SFF
Power Consumption
Idle Time: 4.06 Watt
Random Read: 4.60 Watt
Random Write: 4.60 Watt
Sequential Read: 6.37 Watt
Sequential Write: 5.18 Watt
Random Read/Write: 4.60 Watt
MAX: 6.37 Watt
Product Dimensions & Weight
Height: 5.75 (14.61 cm)
Width: 8.63 inch (21.92 cm)
Depth: 9.00 inch (22.86 cm)
Weight: 1.10 lbs (0.50 kg)
Compatible Systems
- HPE ProLiant DL Series: DL345 (Gen10+) DL360 (Gen10+) DL365 (Gen10+) DL380 (Gen10+) DL385 (Gen10+)
Not sure this drive fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
