Product Information

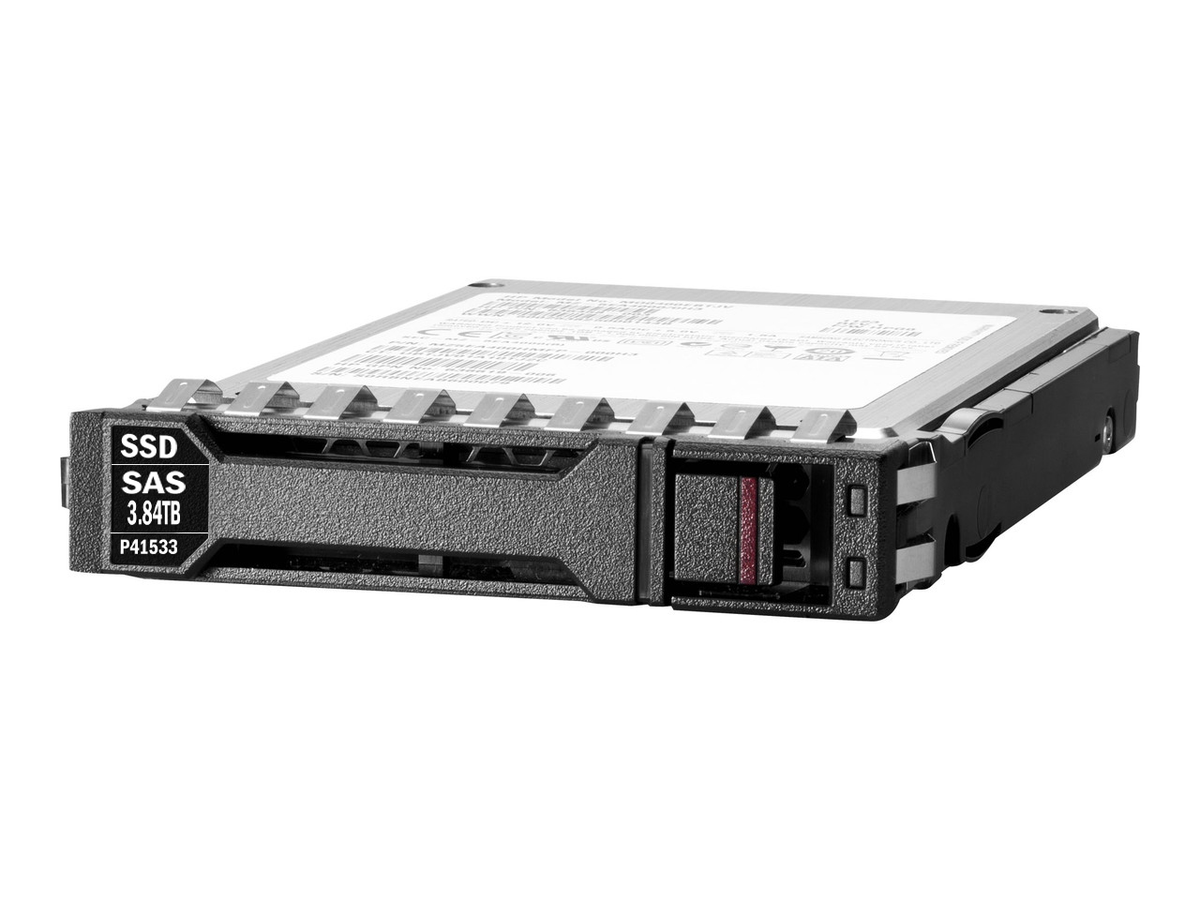

The HPE P40508-H21 gives you 3.84TB of read intensive flash storage in a 2.5 inch small form factor (SFF) SSD with a 12Gb SAS interface. The drive belongs to the HPE Value SAS line as a multi vendor part and runs HPE digitally signed firmware. It comes in an HPE Basic Carrier (BC). It is intended for HPE ProLiant Gen10 Plus servers.
Key Features
- 3.84TB capacity
- SAS 12Gb/s interface
- 2.5 inch SFF
- Read Intensive workload
- Value SAS, multi vendor
- Digitally signed firmware
- HPE Basic Carrier (BC)
Condition: New Bulk Pack
Warranty: 90 Days Warranty
Specifications
Brand: HPE
MPN: P40508-H21
Option Part Number: P40508-H21
Spare Part Number: P41533-001
General
Device Type: Solid State Drive - Hot-Swap
Capacity: 3.84 TB
Form Factor: 2.5 inch SFF
Interface: SAS 12Gbps
NAND Flash Memory
Type: Triple-level cell (TLC)
Plug Type: Hot Pluggable
Connectivity
Type: Single
Carrier Type: Basic Carrier (BC)
Workload Type: Read Intensive
Bundled with: HPE Basic Carrier (BC)
Features: Digitally Signed Firmware (DS)
Platform Supported: HPE ProLiant Rack
Height: 15.00 mm
Performance
Lifetime Writes (TB): 7000
Endurance DWPD (Drive Writes Per Day): 1
Drive Transfer Rate: 12 Gbps (external)
MAX Seq. Reads Throughput (MiB/s): 810
MAX Seq. Writes Throughput (MiB/s): 635
Random Read Average Latency uSec (4KiB,Q1): 140
Random Write Average Latency uSec (4KiB,Q1): 35
Random Read IOPS (4KiB, Q=16): 100000
Random Write IOPS (4KiB, Q=16): 37000
MAX Random Read IOPS (4KiB): 155000@Q32
MAX Random Write IOPS (4KiB): 37000@Q4
Expansion & Connectivity
Interfaces: 1 x SAS 12 Gb/s
Compatible Bay: 2.5" SFF Power Consumption Idle Time: 4.99 Watt
Random Read: 5.79 Watt
Random Write: 5.79 Watt
Sequential Read: 7.82 Watt
Sequential Write: 6.57 Watt
Random Read/Write: 5.79 Watt
MAX: 7.82 Watt
Product Dimensions & Weight
Height: 5.75 (14.61 cm)
Width: 8.63 inch (21.92 cm)
Depth: 9.00 inch (22.86 cm)
Weight: 1.10 lbs (0.50 kg)
Compatible Systems
- HPE ProLiant DL Series: DL345 (Gen10+) DL360 (Gen10+) DL365 (Gen10+) DL380 (Gen10+) DL385 (Gen10+)
Not sure this drive fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
