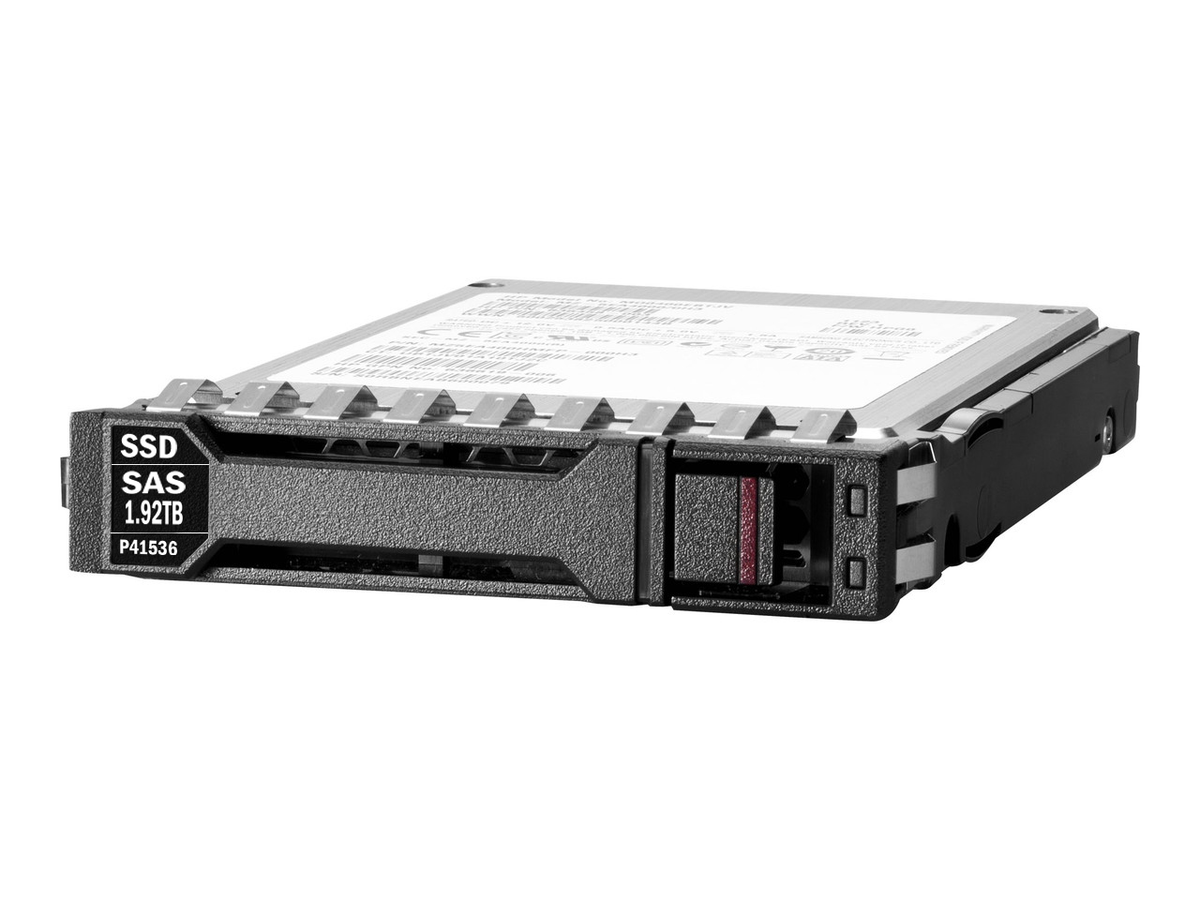

Product Information
The HPE P40511-H21 gives you 1.92TB of mixed use flash storage in a 2.5 inch small form factor (SFF) SSD with a 12Gb SAS interface. The drive belongs to the HPE Value SAS line as a multi vendor part and runs HPE digitally signed firmware. It comes in an HPE Basic Carrier (BC). It is intended for HPE ProLiant Gen10 Plus servers.
Key Features
- 1.92TB capacity
- SAS 12Gb/s interface
- 2.5 inch SFF
- Mixed Use workload
- Value SAS, multi vendor
- Digitally signed firmware
- HPE Basic Carrier (BC)
Condition: New Bulk Pack
Warranty: 90 Days Warranty
Specifications
Brand: HPE
MPN: P40511-H21
Option Part Number: P40511-H21
Spare Part Number: P41536-001
General
Device Type: Solid State Drive - Hot-Swap
Capacity: 1.92 TB
Form Factor: 2.5 inch SFF
Interface: SAS 12Gbps
NAND Flash Memory
Type: Triple-level cell (TLC)
Plug Type: Hot Pluggable
Connectivity
Type: Single
Carrier Type: Basic Carrier (BC)
Workload Type: Mixed Use
Bundled with: HPE Basic Carrier (BC)
Features: Digitally Signed Firmware (DS)
Platform Supported: HPE ProLiant Rack
Height: 15.00 mm
Performance
Lifetime Writes (TB): 10500
Endurance DWPD (Drive Writes Per Day): 3
Drive Transfer Rate: 12 Gbps (external)
MAX Seq. Reads Throughput (MiB/s): 810
MAX Seq. Writes Throughput (MiB/s): 635
Random Read Average Latency uSec (4KiB,Q1): 140
Random Write Average Latency uSec (4KiB,Q1): 38
Random Read IOPS (4KiB, Q=16): 96000
Random Write IOPS (4KiB, Q=16): 51000
MAX Random Read IOPS (4KiB): 155000@Q32
MAX Random Write IOPS (4KiB): 52000@Q4
Expansion & Connectivity
Interfaces: 1 x SAS 12 Gb/s
Compatible Bay: 2.5" SFF
Power Consumption
Idle Time: 4.67 Watt
Random Read: 5.35 Watt
Random Write: 5.35 Watt
Sequential Read: 7.11 Watt
Sequential Write: 6.25 Watt
Random Read/Write: 5.35 Watt
MAX: 7.11 Watt
Product Dimensions & Weight
Height: 5.75 (14.61 cm)
Width: 8.63 inch (21.92 cm)
Depth: 9.00 inch (22.86 cm)
Weight: 1.10 lbs (0.50 kg)
Compatible Systems
- HPE ProLiant DL Series: DL20 Gen10 Plus (2.5inch), DL20 Gen10 Plus Base (2.5inch), DL20 Gen10 Plus Entry (2.5inch), DL20 Gen10 Plus High Performance (2.5inch), DL20 Gen10 Plus Performance (2.5inch), DL325 Gen10 Plus V2 (2.5inch), DL325 Gen10 Plus V2 Base (2.5inch), DL325 Gen10 Plus V2 for Weka Base Tracking (2.5inch), DL325 Gen10 Plus V2 Performance (2.5inch), DL345 Gen10 Plus (2.5inch), DL345 Gen10 Plus Base (2.5inch), DL345 Gen10 Plus Entry (2.5inch), DL360 Gen10 Plus (2.5inch), DL360 Gen10 Plus All-NVMe Server for Software Defined Storage (2.5inch), DL360 Gen10 Plus for Weka Base Tracking (2.5inch), DL360 Gen10 Plus Network Choice (2.5inch), DL365 Gen10 Plus (2.5inch), DL380 Gen10 Plus (2.5inch), DL380 Gen10 Plus Network Choice (2.5inch)
- HPE SimpliVity 325 Gen10 Plus V2 Node (2.5inch)
Not sure this drive fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
