Product Information

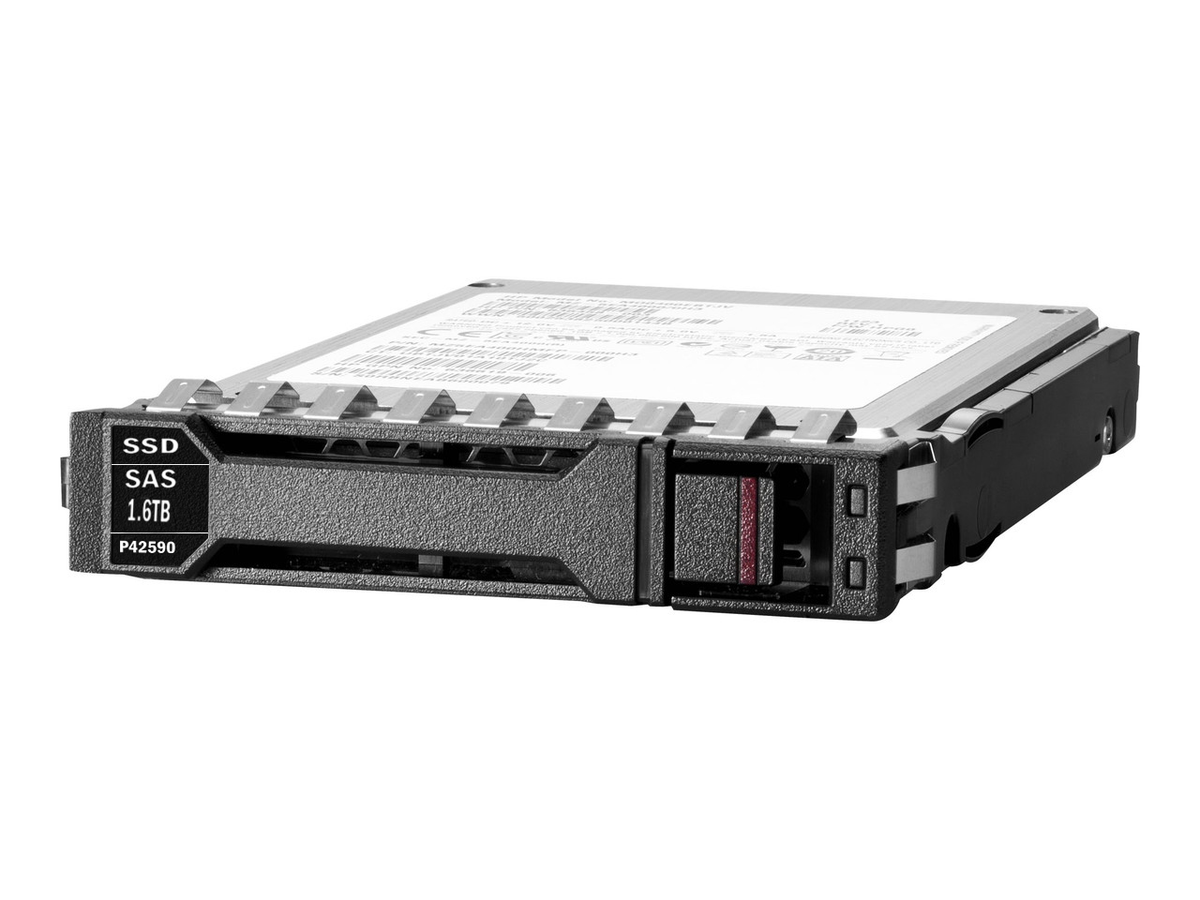

The HPE P41401-K21 gives you 1.6TB of mixed use flash storage in a 2.5 inch small form factor (SFF) SSD with a 24Gb SAS interface. The drive is a self encrypting drive (SED) with FIPS encryption and runs HPE digitally signed firmware. It comes in an HPE Basic Carrier (BC). It is intended for HPE ProLiant Gen10 Plus servers.
Key Features
- 1.6TB capacity
- SAS 24Gb/s interface
- 2.5 inch SFF
- Mixed Use workload
- Self encrypting drive (SED), FIPS encryption
- Digitally signed firmware
- HPE Basic Carrier (BC)
Condition: New Bulk Pack
Warranty: 90 Days Warranty
Specifications
Brand: HPE
MPN: P41401-K21
Option Part Number: P41401-K21
Spare Part Number: P42590-001
General
Device Type: Solid State Drive - Hot-Swap
Capacity: 1.6 TB
Form Factor: 2.5 inch SFF
Interface: SAS 24Gbps
NAND Flash Memory Type: Triple-level cell (TLC)
Plug Type: Hot Pluggable
Connectivity
Type: Dual
Encryption Algorithm: FIPS
Carrier Type: Basic Carrier (BC)
Workload Type: Mixed Use
Bundled with: HPE Basic Carrier (BC)
Features: Digitally Signed Firmware (DS)
Platform Supported: HPE ProLiant Rack
Height: 15.00 mm
Performance
30 Days Writes (TB): 8760
Endurance DWPD (Drive Writes Per Day): 3
Drive Transfer Rate: 24 Gbps (external)
MAX Seq. Reads Throughput (MiB/s): 1080
MAX Seq. Writes Throughput (MiB/s): 1035
Random Read Average Latency uSec (4KiB,Q1): 95
Random Write Average Latency uSec (4KiB,Q1): 32
Random Read IOPS (4KiB, Q=16): 145000
Random Write IOPS (4KiB, Q=16): 125000
MAX Random Read IOPS (4KiB): 173000@Q64
MAX Random Write IOPS (4KiB): 130000@Q16
Expansion & Connectivity
Interfaces: 1 x SAS 24 Gb/s
Compatible Bay: 2.5" SFF
Power Consumption
Idle Time: 3.07 Watt
Random Read: 6.92 Watt
Random Write: 6.92 Watt
Sequential Read: 8.84 Watt
Sequential Write: 12.50 Watt
Random Read/Write: 6.92 Watt
MAX: 12.50 Watt
Product Dimensions & Weight
Height: 5.75 (14.61 cm)
Width: 8.63 inch (21.92 cm)
Depth: 9.00 inch (22.86 cm)
Weight: 1.10 lbs (0.50 kg)
Compatible Systems
- HPE ProLiant DL Series: DL325 Gen10 Plus V2 (2.5inch), DL325 Gen10 Plus V2 Base (2.5inch), DL325 Gen10 Plus V2 for Weka Base Tracking (2.5inch), DL325 Gen10 Plus V2 Performance (2.5inch), DL360 Gen10 Plus (2.5inch), DL360 Gen10 Plus All-NVMe Server for Software Defined Storage (2.5inch), DL360 Gen10 Plus for Weka Base Tracking (2.5inch), DL360 Gen10 Plus Network Choice (2.5inch), DL365 Gen10 Plus (2.5inch), DL385 Gen10 Plus V2 (2.5inch), DL385 Gen10 Plus V2 Base (2.5inch), DL385 Gen10 Plus V2 Entry (2.5inch)
- HPE SimpliVity 325 Gen10 Plus V2 Node (2.5inch)
Not sure this drive fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
