Product Information

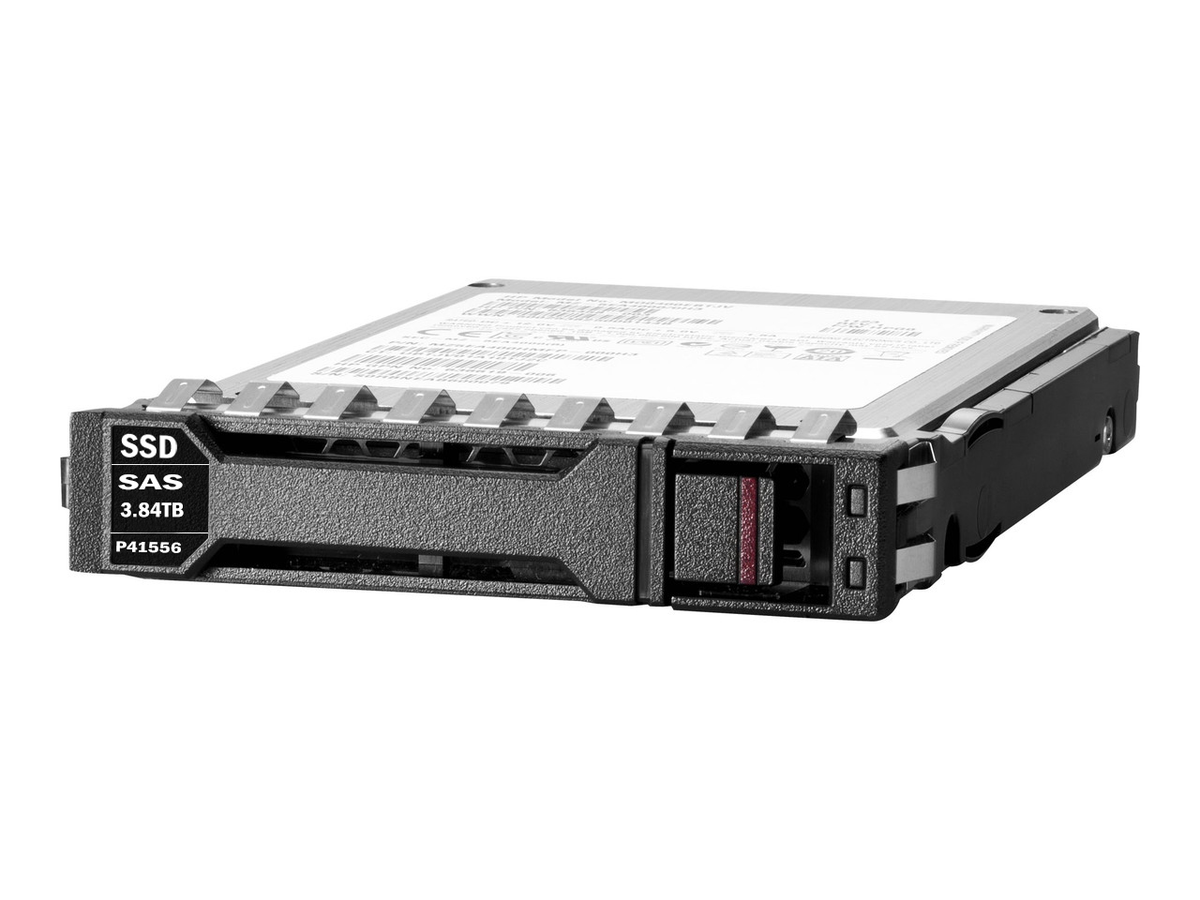

The HPE P41556-001 is a 3.84TB read intensive solid state drive in the 2.5 inch small form factor (SFF) with a 12Gb SAS interface. The drive runs HPE digitally signed firmware. It comes in an HPE Basic Carrier (BC). It is intended for HPE ProLiant Gen10 Plus servers.
Key Features
- 3.84TB capacity
- SAS 12Gb/s interface
- 2.5 inch SFF
- Read Intensive workload
- Digitally signed firmware
- HPE Basic Carrier (BC)
Condition: New Bulk Pack
Warranty: 90 Days Warranty
Specifications
Brand: HPE
MPN: P41556-001
Option Part Number: P40558-B21
Spare Part Number: P41556-001
General
Device Type: Solid State Drive - Hot-Swap
Capacity: 3.84 TB
Form Factor: 2.5 inch SFF
Interface: SAS 12Gbps
NAND Flash Memory Type: Triple-level cell (TLC)
Plug Type: Hot Pluggable
Connectivity
Type: Dual Port
Carrier Type: Basic Carrier (BC)
Workload Type: Read Intensive
Bundled with: HPE Basic Carrier (BC)
Features: Digitally Signed Firmware (DS)
Height: 15.00 mm
Performance
Lifetime Writes (TB): 6848
Endurance DWPD (Drive Writes Per Day): 1
Drive Transfer Rate: 12 Gbps (external)
MAX Seq. Reads Throughput (MiB/s): 1080
MAX Seq. Writes Throughput (MiB/s): 1030
Random Read Average Latency uSec (4KiB,Q1): 175
Random Write Average Latency uSec (4KiB,Q1): 95
Random Read IOPS (4KiB, Q=16): 110000
Random Write IOPS (4KiB, Q=16): 92000
MAX Random Read IOPS (4KiB): 175000@Q128
MAX Random Write IOPS (4KiB): 92000@Q16
Expansion & Connectivity
Interfaces: 1 x SAS 12 Gb/s
Compatible Bay: 2.5" SFF
Power Consumption
Idle Time: 3.42 Watt
Random Read: 5.56 Watt
Random Write: 5.56 Watt
Sequential Read: 6.44 Watt
Sequential Write: 9.19 Watt
Random Read/Write: 5.56 Watt
MAX: 9.19 Watt
Compatible Systems
- HPE ProLiant DL Series: DL345 (Gen10+) DL360 (Gen10+) DL365 (Gen10+) DL380 (Gen10+) DL385 (Gen10+)
