Product Information

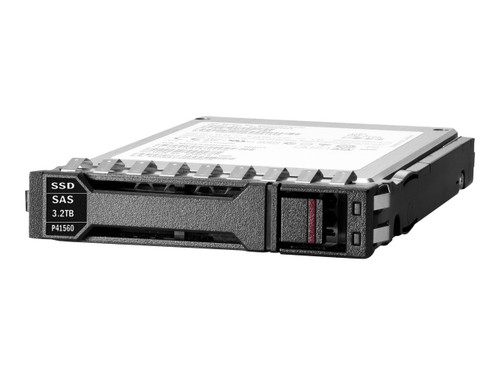

The HPE P41560-001 is a 3.2TB mixed use solid state drive in the 2.5 inch small form factor (SFF) with a 12Gb SAS interface. The drive runs HPE digitally signed firmware. It comes in an HPE Basic Carrier (BC). It is intended for HPE ProLiant Gen10 Plus servers.
Key Features
- 3.2TB capacity
- SAS 12Gb/s interface
- 2.5 inch SFF
- Mixed Use workload
- Digitally signed firmware
- HPE Basic Carrier (BC)
Condition: New Bulk Pack
Warranty: 90 Days Warranty
Specifications
Brand: HPE
MPN: P41560-001
Option Part Number: P40562-B21
Spare Part Number: P41560-001
General
Device Type: Solid State Drive - Hot-Swap
Capacity: 3.2 TB
Workload Type: Mixed Use
Interface Type: SAS 12Gbps
Form Factor: 2.5 inch SFF
Plug Type: Hot Plug
Carrier Type: Basic Carrier
NAND Flash Memory Type: Triple-Level Cell (TLC)
Features: Dual Port, Digitally Signed Firmware (DS)
Bundled with: HPE Basic Carrier
Platform Supported: HPE ProLiant Rack
Height: 15 mm Performance 30 Days Writes: 17121
Endurance DWPD (Drive Writes Per Day): 3
Drive Transfer Rate: 12 Gb/sec (external)
Random Read IOPS (4KiB, Q=16): 110000
Random Writes IOPS (4KiB, Q=16): 125000
MAX Random Read IOPS (4KiB): 175000@Q256
MAX Random Write IOPS (4KiB): 125000@Q32
Expansion & Connectivity
Interfaces: 1 x SAS 12 Gb/s
Compatible Bay: 2.5" SFF Power Consumption Power Idle Time: 3.42 Watt
Power Random Read: 5.56 Watt
Power Random Write: 5.56 Watt
Power Sequential Read: 6.44 Watt
Power Sequential Write: 9.19 Watt
Power Random R/W: 5.56 Watt
Power MAX: 9.19 Watt
Product Dimensions & Weight
Height: 5.75 (14.61 cm)
Width: 8.63 inch (21.92 cm)
Depth: 9.00 inch (22.86 cm)
Weight: 1.508 lbs (0.68 kg)
Compatible Systems
- HPE ProLiant DL Series: DL325 Gen10 Plus V2 (2.5inch), DL325 Gen10 Plus V2 Base (2.5inch), DL345 Gen10 Plus (2.5inch), DL345 Gen10 Plus Base (2.5inch), DL345 Gen10 Plus Entry (2.5inch), DL360 Gen10 Plus (2.5inch), DL360 Gen10 Plus Network Choice (2.5inch), DL365 Gen10 Plus (2.5inch), DL380 Gen10 Plus Network Choice (2.5inch), DL385 Gen10 Plus V2 (2.5inch)
Not sure this drive fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
