Product Information

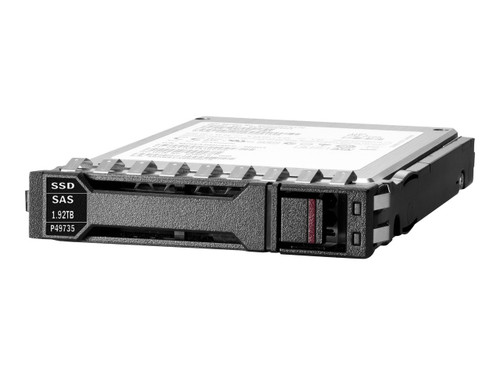

The HPE P49031-X21 gives you 1.92TB of read intensive flash storage in a 2.5 inch small form factor (SFF) SSD with a 24Gb SAS interface. The drive is an HPE multi vendor part and runs HPE digitally signed firmware. It comes in an HPE Basic Carrier (BC). It is intended for HPE ProLiant Gen10 Plus servers.
Key Features
- 1.92TB capacity
- SAS 24Gb/s interface
- 2.5 inch SFF
- Read Intensive workload
- Multi vendor
- Digitally signed firmware
- HPE Basic Carrier (BC)
Condition: Brand New in Factory Sealed Box
Warranty: Up to a 3-Years Manufacturer Warranty and a 30 Days Return Window through us
Specifications
Brand: HPE
MPN: P49031-X21
Option Part Number: P49031-X21
Spare Part Number: P49735-001
General
Device Type: Solid State Drive - Hot-Swap
Capacity: 1.92 TB
Form Factor: 2.5 inch SFF
Interface: SAS 24Gbps
NAND Flash Memory Type: Triple-level cell (TLC)
Plug Type: Hot Pluggable
Connectivity
Type: Dual Port
Carrier Type: Basic Carrier (BC)
Workload Type: Read Intensive
Bundled with: HPE Basic Carrier (BC)
Features: Digitally Signed Firmware (DS)
Platform Supported: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy
Height: 15.00 mm (0.60 inch)
Performance
30 Days Writes (TB): 3424
Endurance DWPD (Drive Writes Per Day): 1
Drive Transfer Rate: 24 Gbps (external)
MAX Seq. Reads Throughput (MiB/s): 2030
MAX Seq. Writes Throughput (MiB/s): 1950
Random Read Average Latency uSec (4KiB,Q1): 90
Random Write Average Latency uSec (4KiB,Q1): 29
Random Read IOPS (4KiB, Q=16): 150000
Random Write IOPS (4KiB, Q=16): 100000
MAX Random Read IOPS (4KiB): 15500@Q32
MAX Random Write IOPS (4KiB): 100000@Q4
Expansion & Connectivity
Interfaces: 1 x SAS 24 Gb/s
Compatible Bay: 2.5" SFF Power Consumption Idle Time: 6.17 Watt
Random Read: 7.96 Watt
Random Write: 7.96 Watt
Sequential Read: 8.64 Watt
Sequential Write: 13.66 Watt
Random Read/Write: 7.96 Watt
MAX: 13.66 Watt
Compatible Systems
- HPE ProLiant DL Series: DL20 Gen10 Plus (2.5inch), DL20 Gen10 Plus Base (2.5inch), DL20 Gen10 Plus Entry (2.5inch), DL20 Gen10 Plus High Performance (2.5inch), DL20 Gen10 Plus Performance (2.5inch), DL325 Gen10 Plus V2 (2.5inch), DL325 Gen10 Plus V2 Base (2.5inch), DL325 Gen10 Plus V2 for Weka Base Tracking (2.5inch), DL325 Gen10 Plus V2 Performance (2.5inch), DL345 Gen10 Plus (2.5inch), DL345 Gen10 Plus Base (2.5inch), DL345 Gen10 Plus Entry (2.5inch), DL360 Gen10 Plus (2.5inch), DL360 Gen10 Plus All-NVMe Server for Software Defined Storage (2.5inch), DL360 Gen10 Plus for SAP HANA Compute Block (2.5inch), DL360 Gen10 Plus for Weka Base Tracking (2.5inch), DL360 Gen10 Plus Network Choice (2.5inch), DL365 Gen10 Plus (2.5inch), DL380 Gen10 Plus (2.5inch), DL380 Gen10 Plus Network Choice (2.5inch), DL385 Gen10 Plus V2 (2.5inch), DL385 Gen10 Plus V2 Base (2.5inch), DL385 Gen10 Plus V2 Entry (2.5inch)
- HPE SimpliVity 325 Gen10 Plus V2 Node (2.5inch)
Not sure this drive fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
