Product Information

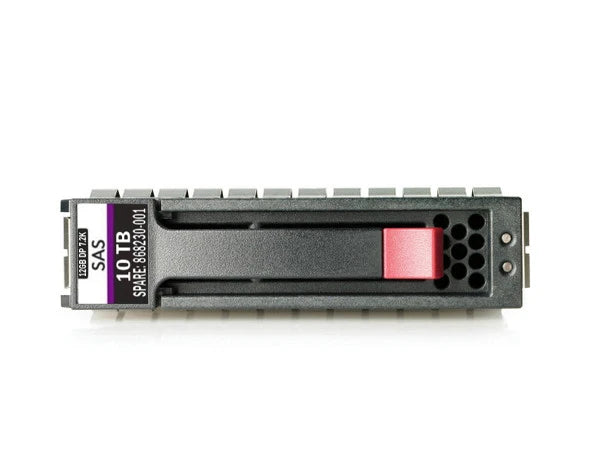

The HPE P9M82A gives you 10TB of storage in a helium filled midline hard drive running at 7,200 RPM. It uses the 3.5 inch large form factor (LFF) with a dual port 12Gb SAS interface and 512e sector format. It is intended for HPE Modular Smart Array (MSA) 1040 and 2040 LFF SAN storage.
Key Features
- 10TB capacity at 7.2K RPM
- Dual port SAS 12Gb/s interface
- 3.5 inch LFF
- 512e sector format
- Helium filled
- Midline class
Condition: Brand New in Factory Sealed Box
Warranty: Up to a 3-Years Manufacturer Warranty and a 30 Days Return Window through us
Specifications
Brand: HPE
MPN: P9M82A
Option Part Number: P9M82A
Spare Part Number: 868230-001
Model Number: HUH721010AL5204
Model Number: ST10000NM002G
Model Number: ST10000NM0528
Assembly Number: 868151-002
HPE GPN: 867943-001
General
Device Type: Hard Drive - Hot-Swap
Capacity: 10 TB
Form Factor: 3.5 inch LFF
Interface: SAS 12Gbps
Bytes per Sector: 512
Drive Technology (Fill): Helium
Plug Type: Hot Plug
Format Type: 512e
Carrier Type: Standard MSA Carrier
Workload: Midline
Features: Dual Port, Advanced Format 512e
Bundled with: HPE Standard MSA Carrier
Performance
Rotational Speed: 7200 RPM
Transfer Rate Synchronous (Max): 12Gb/sec
Single Track Seek Time: 0.22 ms
Average Seek Time: 8.00 ms
Full Stroke Seek Time: 16.00 ms
OD Media Rate, Max Sequential Throughput (MiB/s): 235
128Kib Random Rd (IOPs): 105
128Kib Random 70% RD/ 30% WT (IOPs): 110
128Kib Random 50% RD/ 50% WT (IOPs): 115
Expansion & Connectivity
Interfaces: 1 x SAS 12 Gb/s
Compatible Bay: 3.5" LFF
Environmental Parameters
Min Operating Temperature: 50 °F (10°C)
Max Operating Temperature: 95 °F (35°C) Dimensions
Height: 1.10 inch
Width: 4.40 inch
Depth: 7.40 inch
Compatible Systems
- HPE Modular Smart Array: MSA 1040 Dual Controller LFF Storage Array, MSA 2040 LFF Chassis, MSA 2040 LFF DC-power Chassis, MSA 2040 LFF Disk Enclosure, MSA 2040 SAN Dual Controller LFF Storage Array, MSA 2040 SAS Dual Controller LFF Storage Array, MSA 2042 SAN Dual Controller LFF Storage Array, MSA 2042 SAS Dual Controller LFF Storage Array
Not sure this drive fits your system? Send us your server or storage array model and the DatorPro team will confirm compatibility before you order.
