Product Information

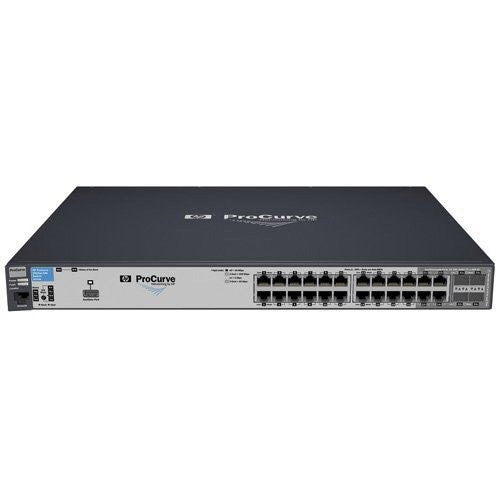

The HPE J9145A is the ProCurve 2910al-24G, a 1U managed stackable switch with 20 Gigabit RJ-45 ports (10/100/1000, auto-sensing) plus 4 dual-personality SFP ports, for campus and enterprise networks.
Key Features
- Layer 4 prioritization by TCP/UDP port plus rate limiting
- RMON, XRMON, sFlow and UDLD
- Security: DHCP protection, ACLs, port security, MAC lockout, dynamic ARP protection and RADIUS/TACACS+
- QoS, jumbo frames and Layer 2/3 support
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
Specifications
Brand: HPE
MPN: J9145A
Model: J9145A
General
Device Type: Switch - Managed - Stackable
Enclosure Type: External - 1U
Features: Flow Control, Auto-Sensing Per Device, DHCP Support, Auto-Negotiation, BOOTP Support, ARP Support, VLAN Support, Auto-Uplink (AUTO MDI/MDI-X), Port Mirroring, Manageable, IPV6 Support, Quality Of Service (QOS), JUMBO FRAMES SUPPORT
Compliant Standards: IEEE 802.3, IEEE 802.3U, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3AB, IEEE 802.1P, IEEE 802.3X, IEEE 802.3AD (LACP), IEEE 802.1W, IEEE 802.1X, IEEE 802.1S
Networking
Ports Qty: 24 X Ethernet 10BASE-T, Ethernet 100BASE-TX, Ethernet 1000BASE-T
Max Units in a Stack: 16
Data Transfer Rate: 1 Gbps
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Routing Protocol: RIP-1, RIP-2, Static IP Routing
Remote Management Protocol: SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, TELNET, SNMP 3, SNMP 2C, HTTP, SSH
Connectivity Technology: Wired
Communication Mode: Half-Duplex, Full-Duplex
Switching Protocol: Ethernet
Switching Capacity: 128 Gbps
Throughput: 95 Mpps
MAC Address Table Size: 2K Entries
Status Indicators: Link Activity, Port Transmission Speed
Processors & Memory
Processor: 2 X ARM ARM1156T2-S : 515 MHZ
RAM: 512 MB SDRAM
Flash Memory: 1 GB FLASH
Expansion & Connectivity
Expansion Slots Total (FREE): 4 ( 4 ) X SFP (MINI-GBIC)
Interfaces: 24 X Network - Ethernet 10BASE-T/100BASE-TX/1000BASE-T - RJ-45 1 X Management - Console - RJ-45
Power
Power Device: Power Supply - Internal
Voltage Required: AC 120/230 V ( 50/60 HZ )
Power Consumption Operational: 82 WATT
Not sure this fits your network? Send us your switch or enclosure model and the DatorPro team will confirm compatibility before you order.
