Product Information

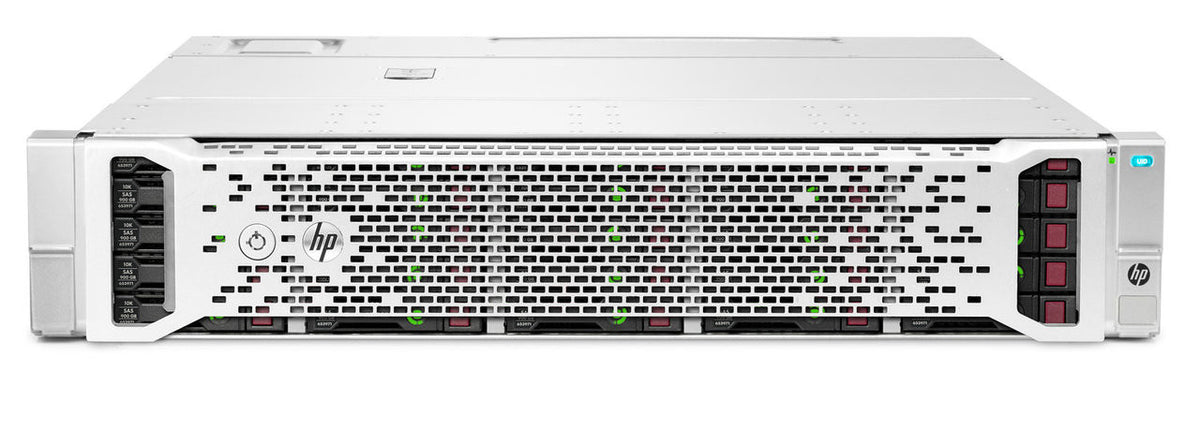

The HPE Q1J19A is a storage bundle made up of an HPE D3710 2.5 inch small form factor (SFF) disk enclosure and 25 HPE 1TB midline hard drives, for a total of 25TB. The drives spin at 7,200 RPM, use a 12Gb SAS interface and sit in HPE Smart Carriers. The enclosure is a 2U rack mount unit with 25 hot swap bays, dual hot plug power supplies and redundant fans.
Key Features
- 25 x 1TB Midline drives, 25TB total
- 7.2K RPM, SAS 12Gb/s
- HPE D3710 2.5 inch SFF enclosure, 2U rack mount
- 25 hot swap bays, all populated
- 2 x hot plug power supplies (1+1 redundancy)
- Includes 2 x mini SAS HD cables and rack mounting kit
Condition: Brand New in Factory Sealed Box
Warranty: Up to a 3-Years Manufacturer Warranty and a 30 Days Return Window through us
Specifications
Brand: HPE
MPN: Q1J19A
Model: Q1J19A
General
Device Type: Storage enclosure
Enclosure Type: Rack-mountable - 2U Chassis
Installed Devices / Modules Qty: 25
Supported Devices / Modules Qty: 25
Supported Drives: SATA-600 / SAS-3
Environmental Parameters
Min Operating Temperature: 50 °F
Max Operating Temperature: 104 °F
Humidity Range Operating: 10 - 90%
Sound Emission: 53 dBA
Expansion / Connectivity
Expansion Bays: 25 (total) / 0 (free) x hot-swap - 2.5" SFF
Hard Drive Type: HDD
Capacity: 25 x 1 TB
Interface Type: SAS 12Gb/s
Spindle Speed: 7200 rpm
Features: Midline
Miscellaneous
Features: Redundant fans, firmware upgradable, 92% efficiency power supply
Cables Included: 2 x mini SAS HD cable - 1.6 ft
Included Accessories: Rack mounting kit, 2 x PDU interconnect cords
Power
Power Device: 2 x internal power supply - hot-plug
Max Supported Qty: 2
Power Redundancy: Yes
Power Redundancy Scheme: 1+1
Voltage Required: AC 120/230 V - 50/60 Hz
Power Consumption Operational: 403 Watt
Power Provided: 460 Watt
80 PLUS Certification: 80 PLUS Gold
Not sure this bundle fits your setup? Send us your server, controller or storage model and the DatorPro team will confirm compatibility before you order.
