Product Information

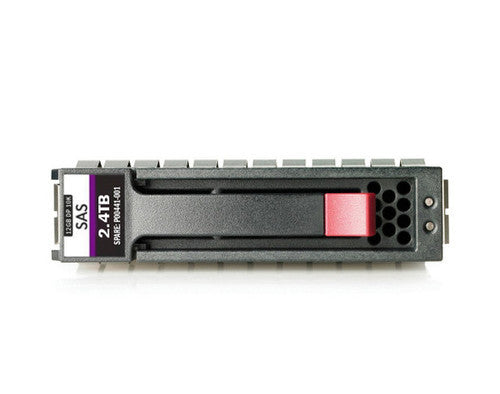

The HPE Q2R41A gives you 2.4TB of storage in an enterprise hard drive running at 10,000 RPM. It uses the 2.5 inch small form factor (SFF) with a dual port 12Gb SAS interface and 512e sector format. It is hot swappable. It is intended for HPE Modular Smart Array (MSA) 1040 and 2040 SFF SAN storage.
Key Features
- 2.4TB capacity at 10K RPM
- Dual port SAS 12Gb/s interface
- 2.5 inch SFF
- 512e sector format
- Hot swap
- Enterprise class
Condition: New Bulk Pack
Warranty: 90 Days Warranty
Specifications
Brand: HPE
MPN: Q2R41A
Option Part Number: Q2R41A
Spare Part Number: P00441-001
Model Number: EG002400JWJNN
Model Number: EG002400JWJNT
Assembly Number: 876937-002
Assembly Number: 876939-002
General
Device Type: Hard Drive - Hot-Swap
Capacity: 2.4 TB
Form Factor: 2.5 inch SFF
Interface: SAS 12Gbps
Bytes per Sector: 512
Drive Technology (Fill): Air
Plug Type: Hot Plug
Format Type: 512e
Carrier Type: Standard Carrier
Workload Type: Enterprise
Features: Dual Port, Advanced Format 512e
Bundled with: HPE Standard Carrier
Performance
Drive Rotation Speed: 10000 RPM
Transfer Rate Synchronous (Max): 12Gb/sec
Average Seek Time: 3.7 ms
Max Seek Time: 7.3 ms max
OD Media Rate, Max Sequential Throughput (MiB/s): 255
128Kib Random Rd (IOPs): 160
128Kib Random 70% RD / 30% WT (IOPs): 180
128Kib Random 50% RD / 50% WT (IOPs): 195
Expansion & Connectivity
Interfaces: 1 x SAS 12Gb/s
Compatible Bay: 2.5" SFF
Environmental Parameters
Min Operating Temperature: 50° F (10°C)
Max Operating Temperature: 95° F (35°C)
Power Requirement
Idle Time: 4.80 Watt
Random R/W: 6.00 Watt
Sequential Read: 7.80 Watt
Sequential Write: 6.60 Watt
Product Dimensions
Height: 0.63 inch
Width: 3.10 inch
Depth: 5.45 inch
Compatible Systems
- HPE Modular Smart Array: MSA 1040 SAN 2.5 inch SFF Storage, MSA 2040 SAN 2.5 inch SFF Storage, MSA 1040 Dual Controller SFF Bundle, MSA 2040 Dual Controller SFF Bundle
Not sure this drive fits your system? Send us your server or storage array model and the DatorPro team will confirm compatibility before you order.
