Product Information

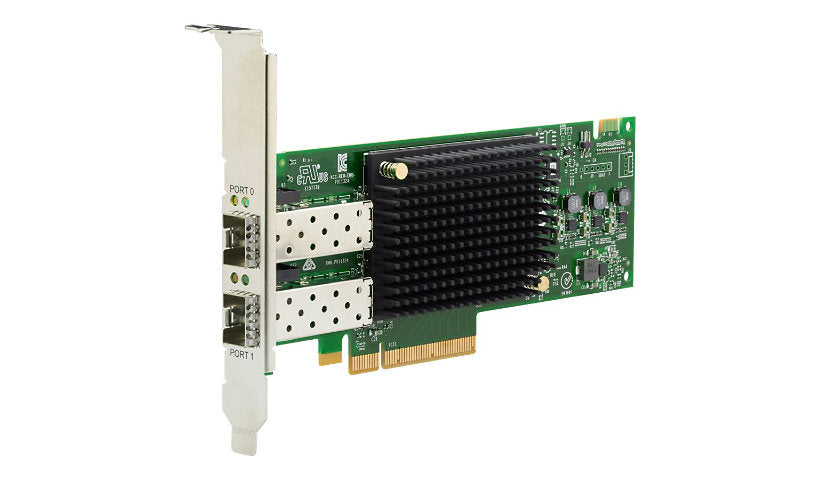

The HPE SN1700E (R7N78A) is a dual port 64Gb short wave Fibre Channel host bus adapter on a PCIe 4.0 x8 interface, shipped with two 64Gb SFP+ optics and both brackets, drawing about 11 W. It is built for demanding OLTP and database workloads on HPE ProLiant, Alletra, Cray and Superdome servers. Listed systems include ProLiant DL325, DL360, DL380, ML350 Gen11 and XL220n. The description refers to the SN1720E model, so please confirm the part you need.
Key Features
- 2 x 64Gb Fibre Channel ports
- 2 x 64Gb SFP+ included
- PCIe 4.0 x8
- About 11 W power draw
- Both brackets included
- For HPE ProLiant servers
Product Information
Brand: HPE
Manufacturer: Hewlett-Packard
Product Line: HPE
Model: SN1700E
Product Type: Host bus adapter
Packaged Quantity: 1
Color Category: Black, Green, Silver
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 64Gb Fibre Channel (Short Wave)
Cable Type: Fibre Channel
Connectivity
PCI Specification Revision: PCIe 4.0
Port Quantity: 2
Interface Provided: 2 x 64Gb Fibre Channel (Short Wave) - SFP+
Network & Adapter Ports: 64Gb Fibre Channel (Short Wave)
Host Interface: PCI Express 4.0 x8
Power
Power Consumption Operational: 11 watt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor: Plug-In Card
Dimensions and Weight
Height: 2.7 inch
Width: 4.9 inch
Depth: 6.6 inch
Weight: 4.41 ounce
Included Items
Included Accessories: 2 x 64Gb SFP+ transceivers, Low-profile bracket, Standard bracket
Certifications and Listing
Compliant Standards: OM3, OM4
Warranty
Limited Warranty: 3 Year
Service & Support Details: Limited warranty - parts - 3 years
Not sure this host bus adapter fits your system? Send us your server, storage or SAN switch model and the DatorPro team will confirm compatibility before you order.
