Product Information

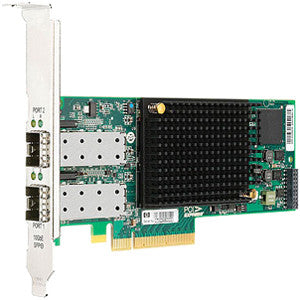

The HPE 624499-002 is the StorageWorks CN1000Q, a dual port 10Gb SFP+ converged network adapter on PCIe 2.0 x8 for HPE ProLiant Gen6 and Gen7 servers. It carries both Ethernet and Fibre Channel over 10GbE using FCoE and CEE.
Key Features
- Fewer adapters and cables, with lower power, cooling and running costs
- Keeps your existing Ethernet and Fibre Channel setup in place
- HPE tested it with ProLiant servers and its own top of rack (ToR) switches
- Ships with low profile and full height brackets
Condition: New Bulk Pack
Warranty: 90 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: 624499-002
Option Part Number: BS668A
Spare Part Number: 624499-002
General
Product Type: Network Adapter - Dual ports
Form Factor: Plug-in Card
Adapter Details
Bus Type: PCI Express 2.0 x8
PCI Spec Revision: PCIe 2.0
Connectivity: Wired
Data Link Protocol: 10 GigE
Transfer Rate: 10 Gbps
Status Indicators: Link/activity
Connections
Slot: 1 x PCI Express 2.0 x8
Expansion Slots: 2 (total) / 2 (free) x SFP+
In the Box: Low-profile bracket, full-height bracket
Software and Compatibility
Supported Operating Systems: SuSE Linux Enterprise Server 11, Microsoft Windows Server 2008 R2, SuSE Linux Enterprise Server 10, Red Hat Enterprise Linux 5, Microsoft Windows Server 2003 x64 Edition SP2, Microsoft Windows Server 2003 SP2, Microsoft Windows Server 2008 R2 x64 Edition
Power and Environment
Compliance: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae
Operating Humidity: 10 - 90% (non-condensing)
Operating Temp (Max): 55 °C
Operating Temp (Min): 0 °C
Compatible Systems
- HPE ProLiant DL Series: DL160 G6, DL160 G6 Special Server, DL165 G7, DL165 G7 Performance, DL165 G7 Special Server, DL180 G6, DL180 G6 Special Server, DL2x170h G6, DL320 G6, DL320 G6 Entry, DL320 G6 High Efficiency, DL320 G6 Performance, DL360 G6, DL360 G6 Base, DL360 G6 Efficiency, DL360 G6 Entry, DL360 G6 Performance, DL360 G7, DL360 G7 Base, DL360 G7 Central Management Server, DL360 G7 Efficiency, DL360 G7 Entry, DL360 G7 Performance, DL360 G7 Special Server, DL360e Gen8, DL360e Gen8 Entry, DL360e Gen8 Performance, DL360e Gen8 Special Server, DL360p Gen8, DL360p Gen8 Base, DL360p Gen8 CMS, DL360p Gen8 Entry, DL360p Gen8 High Performance, DL370 G6, DL370 G6 Base, DL370 G6 High Performance, DL370 G6 Performance, DL380 G6, DL380 G6 Base, DL380 G6 Entry, DL380 G6 High Efficiency, DL380 G6 Performance, DL380 G7, DL380 G7 Base, DL380 G7 Efficiency, DL380 G7 Entry, DL380 G7 Performance, DL380 G7 Special Server, DL380p Gen8, DL380p Gen8 Base, DL380p Gen8 Entry, DL380p Gen8 High Performance, DL380p Gen8 Special, DL385 G7, DL385 G7 Base, DL385 G7 Entry, DL385 G7 HE, DL385 G7 Performance, DL385p Gen8, DL385p Gen8 Dedicated Workload, DL385p Gen8 Entry, DL385p Gen8 Maximized Consolidation, DL385p Gen8 Storage, DL4x170h G6, DL580 G7, DL580 G7 Base, DL580 G7 High Performance, DL585 G6, DL585 G6 Base, DL585 G6 Performance, DL585 G7, DL585 G7 Base, DL585 G7 Performance, DL980 G7
- HPE ProLiant ML Series:ML350 G6, ML350 G6 Base, ML350 G6 Entry, ML350 G6 Performance, ML350 G6 Special Server, ML370 G6, ML370 G6 Base, ML370 G6 Entry
- HPE ProLiant SL Series:SL160s G6, SL160z G6, SL165z G7, SL170z G6, SL2x170z G6
Not sure this adapter fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
