Product Information

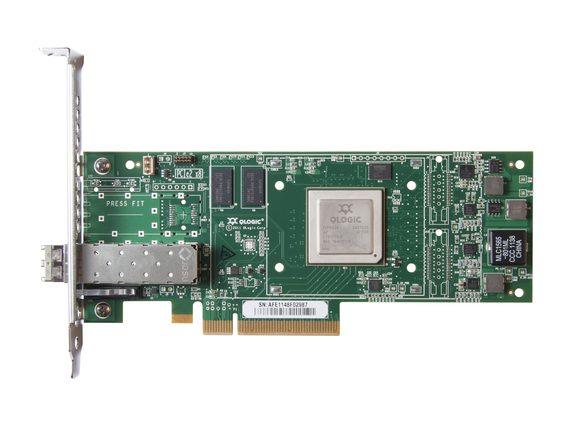

The HPE 699764-001 is a StoreFabric SN1000Q single port 16Gb Fibre Channel HBA. It is a low profile card with a PCIe 3.0 interface.
Key Features
- Double the I/O of 8Gb FC HBAs
- Works with existing 8Gb and 4Gb storage networks
- Faster storage and retrieval for backup, database transactions, virtualization, rich media and high bandwidth cloud applications
- Supports more virtual machines per server and per port, which means less cabling
- One port can take on multiple N_Port IDs, so extra physical ports are not needed
- More IOPS per watt helps lower operating costs
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: 699764-001
Option Part Number: QW971A
Spare Part Number: 699764-001
General
Product Type: Host Bus Adapter
Form Factor: Plug-in Card - Low Profile
Media: Multi-Mode Optic (SFP+)
Adapter Details
Bus Type: PCI Express 3.0 x4
Port Speed: 16 Gbps
Auto-Negotiation: 16/8/4 Gbps
Connectivity: Wired
Data Link Protocol: 16Gb Fibre Channel (Short Wave)
Transfer Rate: 16 Gb/sec
Features: Auto-Negotiation Expansion / Connectivity
Connections
Network Ports: 16Gb Fibre Channel x 1
Slot Type: PCI Express 3.0 to Fibre Channel
Connector: Short Wave laser with Lucent Connector (LC)
PCIe Connector: PCIe 3.0 x4
Cabling: Fiber Optic
Slot: 1 x PCI Express 3.0 x4
Expansion Slots: 2 (total) / 0 (free) x SFP+
Ports: 1 x 16Gb Fibre Channel (Short Wave) - LC multi-mode - x 2
In the Box: Low-Profile Bracket, Full-Height Bracket, 2 x 16Gb SFP+
Software and Compatibility
Supported Operating Systems: Microsoft Windows, Red Hat Enterprise Linux (RHEL), SUSE Linux Enterprise Server (SLES), VMware, Microsoft Windows Hyper-V
Size and Weight
Width: 4.69 inch (119.00 mm)
Depth: 6.63 inch (168.00 mm)
Height: 0.63 inch (16.00 mm)
Weight: 2.50 lbs
Power and Environment
Operating Temp: 0º to 55ºC (32º to 131ºF)
Storage Temp: -20º to 70ºC (-4º to 158ºF)
Operating Humidity: 10% to 90% at 40ºC (104ºF), non-condensing
Compatible Systems
- HPE Modular Smart Array 2040 SAS Dual Controller LFF Storage
- HPE ProLiant DL Series: DL360e Gen8, DL360e Gen8 Base, DL360e Gen8 Entry, DL360e Gen8 Performance, DL360e Gen8 Special Server, DL360p Gen8, DL360p Gen8 Base, DL360p Gen8 CMS, DL360p Gen8 Entry, DL360p Gen8 High Performance, DL380 G7, DL380 G7 Base, DL380 G7 Efficiency, DL380 G7 Entry, DL380 G7 Performance, DL380 G7 Special Server, DL380e Gen8, DL380e Gen8 Base, DL380e Gen8 Entry, DL380e Gen8 High Performance, DL380e Gen8 Storage, DL380p Gen8, DL380p Gen8 Base, DL380p Gen8 Entry, DL380p Gen8 High Performance, DL380p Gen8 Special, DL385 G7, DL385 G7 Base, DL385 G7 Entry, DL385 G7 HE, DL385 G7 Performance, DL385p Gen8, DL385p Gen8 Dedicated Workload, DL385p Gen8 Entry, DL385p Gen8 Maximized Consolidation, DL385p Gen8 Storage, DL385p Gen8 Storage Centric, DL580 G7, DL580 G7 Base, DL580 G7 High Performance
- HPE ProLiant ML Series: ML350p Gen8, ML350p Gen8 Base, ML350p Gen8 Entry, ML350p Gen8 Performance
- HPE StoreEasy 3850 Gateway Single Node Servers Supported:
- HPE ProLiant Platforms
Not sure this adapter fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
