Product Information

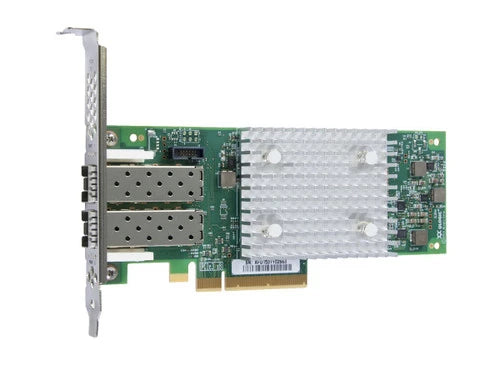

The HPE 853011-001 is a StoreFabric SN1100Q dual port 16Gb Fibre Channel HBA for select ProLiant servers. It is a low profile card with a PCIe 3.0 interface.
Key Features
- Double the I/O of 8Gb FC HBAs
- Works with existing 8Gb and 4Gb networks
- Quicker data access for cloud apps, rich media, virtualization, databases and backup/restore
- Supports more virtual machines per server and per port, which means less cabling
- QoS across the whole path through NPIV (N_Port ID virtualization) and Class-specific Control (CS_CTL)
- 16Gb/s line rate on each physical port, with more VMs supported per port
- With B-series StoreFabric FC switches from HPE, it supports FC Ping, FC Trace Route, enhanced FDMI, RDP, LCB and D-port diagnostics for faster troubleshooting
- Helps consolidate and virtualize, cutting hardware, power, cooling and staffing needs
Condition: New Bulk Pack
Warranty: 90 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: 853011-001
Option Part Number: P9D94A
Spare Part Number: 853011-001
General
Product Type: Host Bus Adapter
Form Factor: Plug-in Card - Low Profile
Adapter Details
Bus Type: PCI Express 3.0
Connectivity: Wired
Data Link Protocol: 4Gb Fibre Channel (SW), 8Gb Fibre Channel (SW), 16Gb Fibre Channel (SW)
Transfer Rate: 14.025 Gbps
Features: Auto-negotiation
Connections
Ports: 16Gb Fibre Channel x 2, 2 x 16Gb Fibre Channel (Short Wave) - LC multi-mode
Cabling: Fiber optic
Expansion Slots: 2 (total) / 0 (free) x SFP+
Software and Compatibility
Supported Operating Systems: SuSE Linux Enterprise Server, Red Hat Enterprise Linux, Microsoft Windows Server 2008 (32/64-bits), VMware ESXi, VMware ESX, Microsoft Windows Server 2008 R2 (64-bits)
Size and Weight
Height: 4.50 (11.40 cm)
Width: 8.50 inch (21.60 cm)
Depth: 12.00 inch (30.50 cm)
Weight: 1.50 lbs (0.68 kg)
Compatible Systems
- HPE Apollo Series: 4200 Gen10, 4200 Gen10 384TB 25Gb Capacity Server for Cohesity DataPlatform, 4200 Gen10 384TB Capacity Server for Cohesity DataPlatform, 4510 Gen10
- HPE Nimble Storage: dHCI Large Solution with
- HPE ProLiant DL380 Gen10
- HPE ProLiant DL Series: DL345 Gen10 Plus, DL345 Gen10 Plus Entry, DL365 Gen10 Plus, DL380 Gen10, DL380 Gen10 48TB Server for Cohesity DataPlatform, DL380 Gen10 96TB Server for Cohesity DataPlatform, DL380 Gen10 for SAP HANA Compute Block, DL380 Gen10 NVMe All Flash Server for Datera, DL380 Gen10 Server for CTERA, DL380 Gen10 SMB Networking Choice, DL385 Gen10 Plus, DL385 Gen10 Plus Entry, DL388 Gen10 Network Choice
- HPE ProLiant XL Series: XL190r Gen10, XL190r Gen10 for
- HPE Ezmeral Container Platform, XL270d Gen10, XL270d Gen10 for
- HPE Ezmeral Container Platform, XL645d Gen10 Plus
- HPE SimpliVity 325 Gen10 Node, 380 Gen10 G Node, 380 Gen10 H Node, 380 Gen10 Network Choice G Node, 380 Gen10 Network Choice H Node, 380 Gen10 Node
Not sure this adapter fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
