Product Information

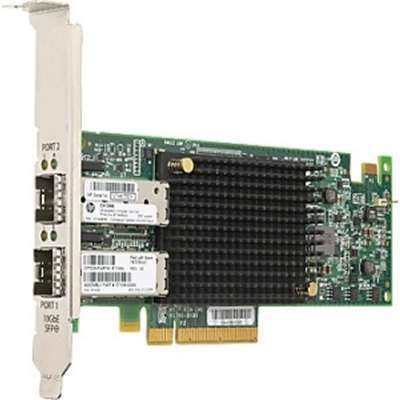

The HPE E7Y06A is the StoreFabric CN1200E dual port 10Gb converged network adapter for HPE ProLiant Gen9 and Gen10 servers. It combines NIC (Ethernet and iSCSI) and Fibre Channel HBA functions on one low profile PCIe card, using FCoE and CEE.
Key Features
- Ethernet, iSCSI and Fibre Channel over one converged adapter using FCoE and CEE
- Fewer adapters and cables, with lower power, cooling and running costs
- Keeps your existing Ethernet and Fibre Channel setup in place
- Lossless Ethernet through CEE keeps Fibre Channel data intact
- Tested by HPE with top of rack and end of row switches, and well suited to B-series and C-series FCoE switches
- Cabling choice: direct attach copper or SFP+ SR optics
- Active Health System (AHS) support
Condition: Brand New in Factory Sealed Box
Warranty: Up to a 3-Years Manufacturer Warranty and a 30 Days Return Window through us
Part Numbers
Manufacturer: HPE
MPN: E7Y06A
Option Part Number: E7Y06A
Spare Part Number: 767078-001
Product Family: StoreFabric
General
Product Type: Network adapter, 10Gbit Ethernet Card
Form Factor: Plug-in card
Type: Optical
Media: CAT6A Cables, 10Gb SFP+ Ethernet Optical Modules (SR) or SFP+ direct attach active and passive copper cable
Adapter Details
Bus Type: PCI Express
Connectivity: Wired
Port Speed: 10GbE
Protocols Supported: FCoE, Ethernet, iSCSI
Data Link Protocol: Fibre Channel, FCoE, 10Gb CEE
Transfer Rate: 10 Gbps
Network/Transport Protocol: iSCSI
Features: Converged Enhanced Ethernet (CEE)
Compliance: IEEE802.3x, IEEE802.3ad, IEEE802.1p, IEEE802.1q, IEEE802.3az, IEEE802.3ae, IEEE802.3ap, IEEE802.1qau, P802.1Qaz(ETS), P802.1Qbb(PFC), P802.1Qaz(DCBX)
Connections
Connector: RJ-45 (Two)
Wiring: CAT6A UTP or better twisted-pair
Cable Distance: Maximum distances for CAT6A unshielded cable are 30 meters (98 feet) and Maximum distances for CAT6A shielded (or better) are 100 meters (328 feet)
Channels: Dual
Ports: 10Gb CEE x 2, 2 x 10Gb Ethernet / FCoE
Slot Type: x8 PCIe 3.0 or 2.0
PCIe Connector: PCIe x8 (Gen3)
In the Box: Low-profile bracket
Software and Compatibility
Supported Operating Systems: Red Hat Linux, SuSe Linux, Microsoft Windows Server 2003, Microsoft Windows Server 2008
Size and Weight
Box Size (W x D x H): 24.0cm x 15.5cm x 4.2cm
Card Size (W x D x H): 18.2cm x 12.0cm x 2.18cm
Weight: 23.98 oz
Power and Environment
Operating Temp (Min): 32º (0º C)
Operating Temp (Max): 113º F (45º C)
Storage Temp (Min): -40º F (-40º C)
Storage Temp (Max): 158º F (70º C)
Operating Humidity (Min): 15% (relative, non-condensing)
Operating Humidity (Max): 80% (relative, non-condensing)
Compatible Systems
- HPE ProLiant DL Series: DL360 (Gen10) DL380 (Gen10) DL385 (Gen10) DL560 (Gen10) DL580 (Gen10)
- HPE ProLiant XL Series: XL170r (Gen10)
Not sure this adapter fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
