Product Information

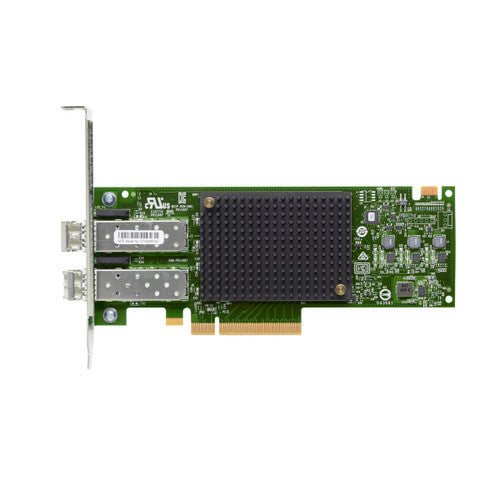

The HPE Q0L14A is a StoreFabric SN1200E dual port 16Gb Fibre Channel HBA. It is a low profile PCIe card for select ProLiant servers.
Key Features
- Double the I/O of 8Gb FC HBAs, and works with 8Gb and 4Gb FC networks
- High throughput with low latency and strong IOPS for OLTP, data warehousing, backup and restore, and OpenStack Cinder block storage
- Finishes data warehousing queries faster than 8Gb FC HBAs and keeps up with flash storage arrays
- ExpressLane gives priority to mission critical traffic on congested networks
- Twice the on-chip resources and bandwidth of earlier models for higher VM density
- Low latency features help virtual desktops (VDI) during boot storms, when many users start up at once
- OneCommand Manager plugin for VMware vCenter makes setup and management easier
- Built to support NVMe over Fibre Channel storage networks
- T10 Protection Information (T10-PI) with hardware offload protects data end to end, server to array
- Security features block unauthorized access to the HBA firmware
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: Q0L14A
Option Part Number: Q0L14A
Spare Part Number: 870002-001
General
Product Type: Host bus adapter
Form Factor: Plug-in card - low profile
Adapter Details
Bus Type: Fibre Channel
Connectivity: Wired
Data Link Protocol: 16Gb Fibre Channel
Connections
Ports: 16Gb Fibre Channel x 2, 2 x 16 Gb Fibre Channel
Cabling: Fiber optic
Software and Compatibility
Supported Operating Systems: SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Microsoft Windows Server 2008 (32/64-bits), VMware ESXi, VMware ESX, Microsoft Windows Server 2008 R2 (64-bits)
Compatible Systems
- HPE Apollo Series: 4200 Gen10, 4510 Gen10
- HPE Nimble Storage: dHCI Medium Solution with
- HPE ProLiant DL360 Gen10, Small Solution with
- HPE ProLiant DL360 Gen10
- HPE ProLiant DL Series: DL345 Gen10 Plus, DL345 Gen10 Plus Entry, DL360 Gen10, DL360 Gen10 All Flash Server for Weka, DL360 Gen10 Base, DL360 Gen10 Compute Server for Cohesity DataPlatform, DL360 Gen10 Entry, DL360 Gen10 High Performance, DL360 Gen10 Low, DL360 Gen10 Network Choice, DL360 Gen10 Performance, DL360 Gen10 Performance for Cohesity DataPlatform, DL360 Gen10 SMB, DL360 Gen10 SMB Network Choice, DL360 Gen10 Solution, DL365 Gen10 Plus, DL385 Gen10 Plus, DL385 Gen10 Plus Entry
- HPE ProLiant XL Series: XL190r Gen10, XL190r Gen10 for
- HPE Ezmeral Container Platform, XL270d Gen10, XL270d Gen10 for
- HPE Ezmeral Container Platform, XL645d Gen10 Plus
Not sure this adapter fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
