Product Information

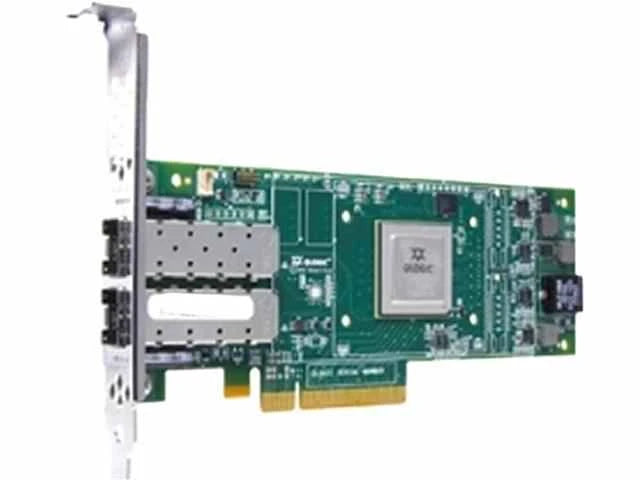

The HPE QW972A is a StoreFabric SN1000Q dual port 16Gb Fibre Channel HBA for select HPE servers. It ships with both low profile and full height brackets and has a PCIe x4 form factor.
Key Features
- Double the I/O of 8Gb FC HBAs
- Works with existing 8Gb and 4Gb storage networks
- Faster storage and retrieval for backup, database transactions, virtualization, rich media and high bandwidth cloud applications
- Supports more virtual machines per server and per port, which means less cabling
- One port can take on multiple N_Port IDs, so extra physical ports are not needed
- More IOPS per watt helps lower operating costs
- Smart SAN support lets HPE 3PAR set up zoning, settings and policies across the SAN, with Target Driven Zoning that takes minutes instead of hours
- Supports HPE ProLiant Active Health System for faster troubleshooting
- Forward error correction (FEC) at 16Gb fixes transmission errors automatically
- Class-specific Control (CS_CTL) lets administrators give priority to critical VM traffic
- Link Cable Beaconing (LCB) lights the LEDs at both ends of a link to find the right cable
- D-Port diagnostics run automated tests across adapters, servers and fabric components in one step
- FDMI and FC Ping verify SAN device links and pull device details from the switch management server
- Read Diagnostic Parameters (RDP) remotely pinpoint network and media errors such as CRC and loss of sync, from any point in the fabric
- Fabric-assigned Port WWN (FA_WWN) lets the switch port hold the WWN, so zoning can be set up before servers arrive
- Fabric-based Boot LUN (F_BLD) pulls boot LUN details straight from a Gen 5 16Gb switch for faster server rollout
Condition: New Bulk Pack
Warranty: 90 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: QW972A
Option Part Number: QW972A
Spare Part Number: 699765-001
General
Product Type: Host Bus Adapter
Form Factor: Plug-in Card - Both Brackets (Half Height and Full Height)
Media: Multi-mode Optic (SFP+)
Brackets: Shipped with both half-height and full-height brackets
Adapter Details
Bus Type: PCI Express x4
Connectivity: Wired
Data Link Protocol: 16Gb Fibre Channel (SW)
Auto-Negotiation: 16/8/4 Gbps
Features: Dual Channel Auto-negotiation
Connections
Network Ports: 2 x 16Gb Fibre Channel
Ports: 2 x 16Gb Fibre Channel (Short Wave) - LC multi-mode x 2
Slot Type: PCI Express 3.0 to Fibre Channel
Connector: Short wave laser with LC type connector
PCIe Connector: PCIe 3.0 x8
Software and Compatibility
Supported Operating Systems: Microsoft Windows, Red Hat Enterprise Linux (RHEL), SUSE Linux Enterprise Server (SLES), VMware, Microsoft Windows Hyper-V.
Size and Weight
Width: 0.63 inch
Depth: 6.63 inch
Height: 4.70 inch
Power and Environment
Operating Temp (Min): 32 °F
Operating Temp (Max): 131 °F
Operating Humidity: 10 - 90% (non-condensing)
Compatible Systems
- HPE ProLiant DL Series: DL360e Gen8, DL360e Gen8 Base, DL360e Gen8 Entry, DL360e Gen8 Performance, DL360e Gen8 Special Server, DL360p Gen8, DL360p Gen8 Base, DL360p Gen8 CMS, DL360p Gen8 Entry, DL360p Gen8 High Performance, DL380 Gen7, DL380 Gen7 Base, DL380 Gen7 Efficiency, DL380 Gen7 Entry, DL380 Gen7 Performance, DL380 Gen7 Special Server, DL380e Gen8, DL380e Gen8 Base, DL380e Gen8 Entry, DL380e Gen8 High Performance, DL380e Gen8 Storage, DL380p Gen8, DL380p Gen8 Base, DL380p Gen8 Entry, DL380p Gen8 High Performance, DL380p Gen8 Special, DL385 Gen7, DL385 Gen7 Base, DL385 Gen7 Entry, DL385 Gen7 HE, DL385 Gen7 Performance, DL385p Gen8, DL385p Gen8 Dedicated Workload, DL385p Gen8 Entry, DL385p Gen8 Maximized Consolidation, DL385p Gen8 Storage, DL385p Gen8 Storage Centric, DL580 Gen7, DL580 Gen7 Base, DL580 Gen7 High Performance Servers
- HPE ProLiant ML Series: ML350p Gen8, ML350p Gen8 Base, ML350p Gen8 Entry, ML350p Gen8 Performance Servers
- HPE Modular Smart Array 2040 SAS Dual Controller LFF Storage
- HPE StoreEasy 3850 Gateway Single Node and 3850 Gateway Storage
