Product Information

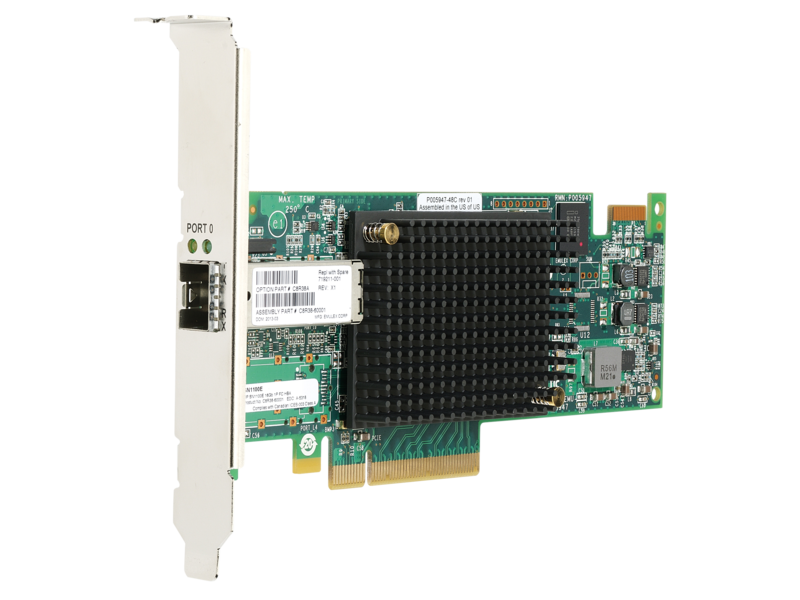

The HPE C8R38A is a StoreFabric SN1100E single port 16Gb Fibre Channel HBA for HPE ProLiant Gen8 and Gen9 servers. It is a low profile PCIe 3.0 plug-in card.
Key Features
- Double the I/O of 8Gb FC HBAs
- Works with existing 8Gb and 4Gb networks
- Quicker data access for cloud apps, rich media, virtualization, databases and backup/restore
- Supports more virtual machines per server and per port, which means less cabling
- One port can take on multiple N_Port IDs, so fewer physical ports are needed
- Better host utilization and application performance
- Helps consolidate and virtualize, cutting hardware, power, cooling and staffing needs
- Power savings help lower operating costs
- 14.025Gb/s Fibre Channel data rate
Condition: Brand New in Factory Sealed Box
Warranty: Up to a 3-Years Manufacturer Warranty and a 30 Days Return Window through us
Part Numbers
Manufacturer: HPE
MPN: C8R38A
Option Part Number: C8R38A
Spare Part Number: 719211-001
General
Product Type: Host Bus Adapter
Form Factor: Plug-in Card - Low Profile
Adapter Details
Bus Type: PCI Express 3.0 x8
Connectivity: Wired
Data Link Protocol: 16Gb Fibre Channel (SW)
Transfer Rate: 14.025 Gbps
Features: Auto-negotiation
Connections
Cabling: Fibre Optic
Ports: 16Gb Fibre Channel x 1, 1 x 16Gb Fibre Channel (Short Wave) - LC multi-mode
In the Box: Low-Profile Bracket, Full-Height Bracket, 16Gb SFP+
Expansion Slots: 1 (total) / 0 (free) x SFP+
Software and Compatibility
Supported Operating Systems: SuSE Linux Enterprise Server, Red Hat Enterprise Linux, Microsoft Windows Server 2008 (32/64-bits), VMware ESXi, VMware ESX, Microsoft Windows Server 2008 R2 (64-bits)
Size and Weight
Height: 9.00 inch
Width: 5.00 inch
Depth: 1.25 inch
Weight: 0.42 lbs
Power and Environment
Operating Humidity: 15 - 80% (non-condensing)
Operating Temp (Max): 45 °C
Operating Temp (Min): 0 °C
Compatible Systems
- HPE ProLiant DL Series: DL160 Gen8, DL160 Gen8 Base, DL160 Gen8 Entry, DL160 Gen8 Performance, DL360e Gen8, DL360e Gen8 Base, DL360e Gen8 Entry, DL360e Gen8 Performance, DL360e Gen8 Special Server, DL360p Gen8, DL360p Gen8 Base, DL360p Gen8 CMS, DL360p Gen8 Entry, DL360p Gen8 High Performance, DL360p Gen8 Performance, DL380e Gen8, DL380e Gen8 Base, DL380e Gen8 Entry, DL380e Gen8 High Performance, DL380e Gen8 Storage, DL380p Gen8, DL380p Gen8 Base, DL380p Gen8 Entry, DL380p Gen8 High Performance, DL380p Gen8 Performance, DL380p Gen8 Special, DL385p Gen8, DL385p Gen8 Dedicated Workload, DL385p Gen8 Entry, DL385p Gen8 Maximized Consolidation, DL385p Gen8 Storage, DL385p Gen8 Storage Centric, DL560 Gen8, DL560 Gen8 Base, DL560 Gen8 Entry, DL560 Gen8 Performance Servers
- HPE ProLiant ML Series: ML350p Gen8, ML350p Gen8 Base, ML350p Gen8 Entry, ML350p Gen8 Performance, ML350p Gen8 Special Server
- HPE ProLiant SL Series: SL230s Gen8 1U Left Half Width Tray, SL230s Gen8 1U Right Half Width Tray, SL230s Gen8 Base 1U Left Tray Server, SL230s Gen8 Base 1U Right Tray Server
- HPE ProLiant XL Series: XL230a Gen9 Compute Tray, XL230a Gen9 Compute Tray (12G), XL230a Gen9 Compute Tray (6G) Compatible Array Platforms:
- HPE MSA Family,
- HPE 3PAR Family,
- HPE XP Family,
- HPE Nimble Family
Not sure this adapter fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
