Product Information

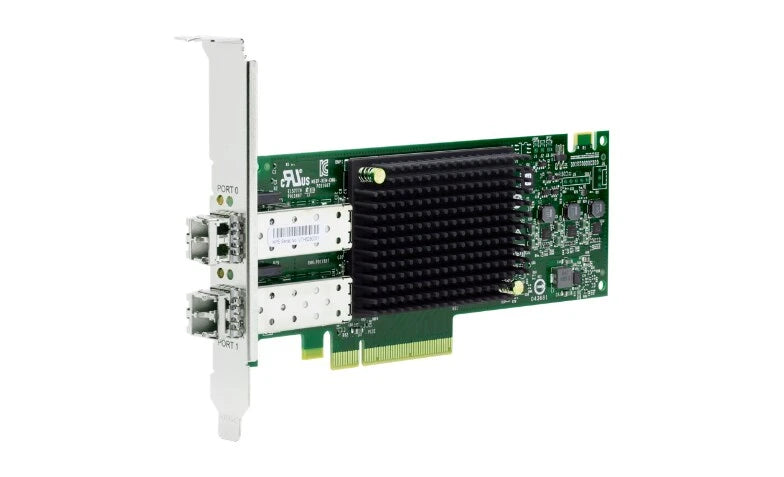

The HPE 870000-001 is a StoreFabric SN1600E dual port 32Gb Fibre Channel HBA. It is a low profile card with a PCIe 3.0 x8 interface.
Key Features
- Twice the bandwidth of 16Gb FC HBAs, and works with 16Gb and 8Gb FC networks
- Moves more data per watt, and performs better on existing servers, than Gen 5 (16Gb) FC adapters
- Completes data warehousing queries in a quarter of the time of an 8Gb FC HBA
- Up to 32Gb FC throughput to keep up with flash storage arrays
- ExpressLane gives priority to mission critical traffic on congested networks
- Twice the on-chip resources and bandwidth of Gen 5 Fibre Channel for higher VM density
- Low latency features help virtual desktops (VDI) during boot storms, when many users start up at once
- Built to support NVMe over Fibre Channel storage networks
- T10 Protection Information (T10-PI) with hardware offload protects data end to end, server to array
- Security features block unauthorized access to the HBA firmware
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: 870000-001
Option Part Number: Q0L12A
Spare Part Number: 870000-001
General
Product Type: Host Bus Adapter
Form Factor: Plug-in Card
Adapter Details
Bus Type: PCI Express 3.0 x8
Connectivity: Wired
Data Link Protocol: 32Gb Fibre Channel
Features: Auto-negotiation, firmware upgradable, Quality of Service (QoS), Forward Error Correction (FEC), Fabric-Device Management Interface (FDMI), Fabric-Assigned port WorldWide Name (FA-WWN), Link cable beacon (LCB), Class-specific Control (CS_CTL), D-Port Diagnostics, FC Ping, FC Trace, Read Diagnostic Parameters (RDP)
Connections
Network Ports: 32Gb Fibre Channel x 2
Ports: 2 x 32Gb Fibre Channel - SFP+
Software and Compatibility
Supported Operating Systems: Red Hat Enterprise Linux 7.2, Microsoft Windows Server 2012 R2 with Hyper-V (64-bit), Microsoft Windows Server 2012 with Hyper-V (64-bit)
Power and Environment
Operating Temp (Min): 32 °F
Operating Temp (Max): 113 °F
Operating Humidity: 15 - 80% (non-condensing)
Compatible Systems
- HPE Apollo 4200 Gen10, 4510 Gen10
- HPE Nimble Storage dHCI Medium Solution with
- HPE ProLiant DL360 Gen10, Small Solution with
- HPE ProLiant DL360 Gen10
- HPE ProLiant DL Series: DL325 Gen10 Plus V2 Base, DL345 Gen10 Plus, DL345 Gen10 Plus Base, DL345 Gen10 Plus Entry, DL360 Gen10, DL360 Gen10 All Flash Server for Weka, DL360 Gen10 Base, DL360 Gen10 Compute Server for Cohesity DataPlatform, DL360 Gen10 Entry, DL360 Gen10 High Performance, DL360 Gen10 Low, DL360 Gen10 Network Choice, DL360 Gen10 Performance, DL360 Gen10 Performance for Cohesity DataPlatform, DL360 Gen10 SMB, DL360 Gen10 SMB Network Choice, DL360 Gen10 Solution, DL365 Gen10 Plus, DL385 Gen10 Plus, DL385 Gen10 Plus Entry
- HPE ProLiant XL Series: XL190r Gen10, XL190r Gen10 for
- HPE Ezmeral Container Platform, XL270d Gen10, XL270d Gen10 for
- HPE Ezmeral Container Platform, XL290n Gen10 Plus, XL645d Gen10 Plus
Not sure this adapter fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
