Product Information

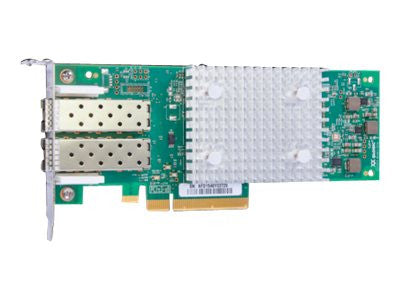

The HPE 868141-001 is a StoreFabric SN1600Q dual port 32Gb Fibre Channel HBA for HPE ProLiant Gen10 servers. It is a low profile card with a PCIe 3.0 x8 interface.
Key Features
- Twice the bandwidth of 16Gb FC HBAs
- Moves more data per watt than Gen 5 (16Gb) FC adapters, with a power to performance improvement of over 30% versus earlier FC generations
- Built to support NVMe over Fibre Channel storage networks
- HPE rates it at 5x the server investment efficiency of Ethernet based block storage
- N_Port ID virtualization (NPIV) and Class-specific Control (CS_CTL) for end to end QoS
- 32Gb/s line rate on each physical port, with more VMs supported per port
- Paired with HPE B-series FC switches, it supports FC Ping, FC Trace Route, enhanced FDMI, RDP, LCB and D-port diagnostics
- PCIe 3.0 doubles interconnect bandwidth over PCIe 2.0 and cuts encoding overhead by up to 20%
Condition: Brand New in Factory Sealed Box
Warranty: Up to a 3-Years Manufacturer Warranty and a 30 Days Return Window through us
Part Numbers
Manufacturer: HPE
MPN: 868141-001
Option Part Number: P9M76A
Spare Part Number: 868141-001
General
Product Type: Host Bus Adapter
Form Factor: Plug-in Card - Low Profile
Adapter Details
Bus Type: PCI Express 3.0 x8
Connectivity: Wired
Data Link Protocol: 4Gb Fibre Channel (Short Wave), 8Gb Fibre Channel (Short Wave), 16Gb Fibre Channel (Short Wave), 32Gb Fibre Channel (Short Wave)
Features: Auto-negotiation
Connections
Network Ports: 32Gb Fibre Channel x 2
Cabling: Fiber optic
Expansion Slots: 2 (total) / 0 (free) x SFP+
Ports: 2 x 32Gb Fibre Channel - LC multi-mode
In the Box: Low-profile bracket, full-height bracket, 2 x 32Gb SFP+
Software and Compatibility
Supported Operating Systems: SuSe Linux, Microsoft Windows Server 2012 with Hyper-V, Red Hat Enterprise Linux 7.2, Microsoft Windows Server 2012 R2 with Hyper-V (64-bit)
Power and Environment
Operating Temp (Min): 32 °F
Operating Temp (Max): 131 °F
Operating Humidity: 10 - 90% (non-condensing)
Compatible Systems
- HPE Apollo 4200 Gen10, 4510 Gen10
- HPE ProLiant DL Series: DL325 Gen10 Plus V2 Base
- HPE ProLiant XL Series: XL190r Gen10, XL190r Gen10 for
- HPE Ezmeral Container Platform, XL270d Gen10, XL270d Gen10 for
- HPE Ezmeral Container Platform
- HPE SimpliVity 325 Gen10 Node, 380 Gen10 G Node, 380 Gen10 H Node, 380 Gen10 Network Choice G Node, 380 Gen10 Network Choice H Node, 380 Gen10 Node
Not sure this adapter fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
