Product Information

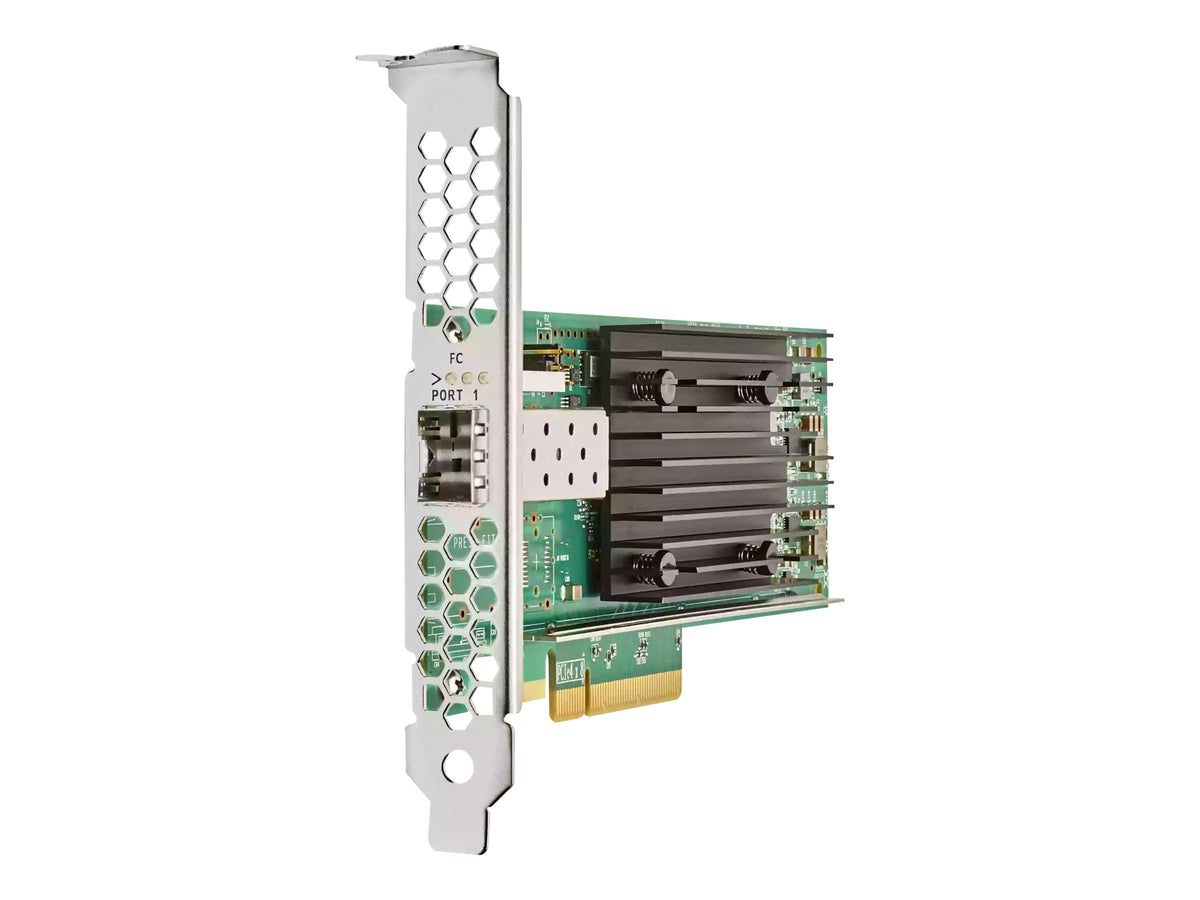

The HPE R2E08A is a StoreFabric SN1610Q single port 32Gb Fibre Channel HBA for HPE ProLiant Gen10 servers. It is a low profile card with a PCIe 4.0 x8 interface.
Key Features
- 12,800 MBps combined throughput and as many as 2 million IOPS
- Runs FCP-SCSI and FC-NVMe at the same time for an easy move from SCSI to NVMe
- Better performance and more data per watt than 16Gb FC adapters
- NPIV, VM-ID and Class-specific Control (CS_CTL) for end to end QoS
- Port isolation design gives steady, predictable performance on each port
- Hardware root of trust and secure firmware updates protect against malicious firmware
- Integrates with HPE B-Series and C-Series switch management, HPE Smart Fabric Orchestrator and HPE SmartSAN
- FA-WWN and F-BLD support for fabric pre-provisioning and simpler SAN rollout
- FC Ping, FC Trace Route, enhanced FDMI, RDP, LCB and D-port diagnostics for quick link and fabric health checks
- PCIe 4.0 gives more interconnect bandwidth than PCIe 3.0
Condition: New Bulk Pack
Warranty: 90 Days Warranty
Part Numbers
Manufacturer: HPE
MPN: R2E08A
Option Part Number: R2E08A
General
Product Type: Host Bus Adapter
Form Factor: Plug-in Card - Low Profile
Adapter Details
Bus Type: PCI Express 4.0 x8
Connectivity: Wired
Data Link Protocol: 8Gb Fibre Channel (Short Wave), 16Gb Fibre Channel (Short Wave), 32Gb Fibre Channel (Short Wave)
Features: Auto-negotiation, Quality of Service (QoS), Forward Error Correction (FEC), Fabric-Device Management Interface (FDMI), Fabric-Assigned port WorldWide Name (FA-WWN), Link cable beacon (LCB), Class-specific Control (CS_CTL), D-Port Diagnostics, FC Ping, FC Trace, Read Diagnostic Parameters (RDP), Fabric-based Boot LUN Discovery (F-BLD)
Connections
Ports: 32Gb Fibre Channel (Short Wave) x 1, 2 x 32Gb Fibre Channel - LC multi-mode
In the Box: Low-profile bracket, 32Gb SFP+ SW transceiver, standard bracket
Software and Compatibility
Supported Operating Systems: VMware ESX, Red Hat Enterprise Linux 7.x, VMware ESXi 6.5, Microsoft Windows Server 2016 with Hyper-V, VMware ESXi 6.7, Microsoft Windows Server 2019 with Hyper-V, Red Hat Enterprise Linux 8.x, SUSE Linux 12.x, SUSE Linux 15.x
Power and Environment
Operating Temp (Min): 32 °F
Operating Temp (Max): 131 °F
Operating Humidity: 10 - 90% (non-condensing)
Compatible Systems
- HPE Apollo 4200 Gen10, 4510 Gen10
- HPE ProLiant DL Series: DL325 Gen10 Plus V2 Base, DL345 Gen10 Plus, DL345 Gen10 Plus Base, DL345 Gen10 Plus Entry, DL365 Gen10 Plus, DL385 Gen10 Plus, DL385 Gen10 Plus Entry
- HPE ProLiant XL Series: XL190r Gen10, XL190r Gen10 for
- HPE Ezmeral Container Platform, XL270d Gen10, XL270d Gen10 for
- HPE Ezmeral Container Platform, XL290n Gen10 Plus, XL645d Gen10 Plus
Not sure this adapter fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
