Product Information

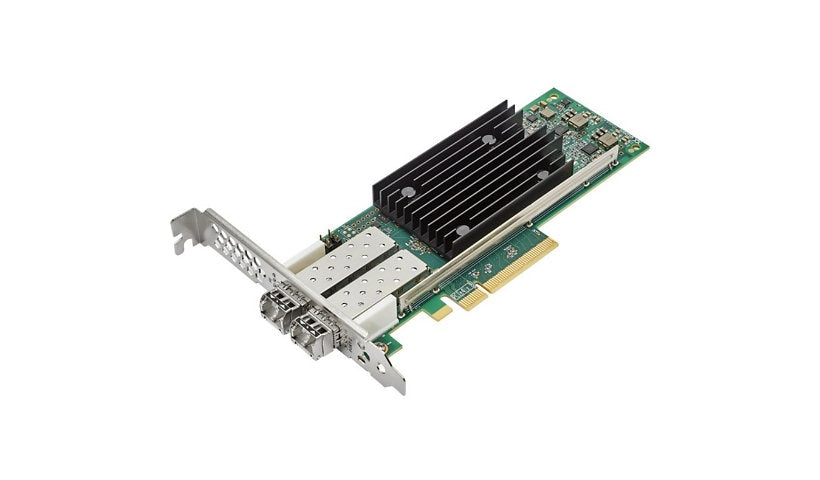

The HPE StoreFabric SN1610Q (R2E09A) is a dual port 32Gb Fibre Channel host bus adapter on a low profile PCIe 4.0 x8 interface, shipped with two 32Gb SFP+ optics and both brackets. It also runs at 16 and 8Gb, so it fits existing 16Gb SANs. It works with Windows Server 2016 and 2019, Red Hat 7 and 8, SUSE 12 and 15 and VMware ESXi. Listed systems include ProLiant DL325, DL345, DL365, DL380, ML350 Gen11 and Apollo 4200 and 4510 servers.
Key Features
- 2 x 32Gb Fibre Channel ports
- 2 x 32Gb SFP+ included
- PCIe 4.0 x8
- 8/16/32Gb speeds
- Both brackets included
- For HPE ProLiant, Apollo
Product Information
Brand: HPE
Manufacturer: Hewlett-Packard
Product Line: HPE StoreFabric
Model: SN1610Q Dual Port
Product Type: Host bus adapter
Compatibility Specs: HPE Apollo 4200 Gen10, 4200 Gen10 384TB 25Gb Capacity Server for Cohesity DataPlatform, 4200 Gen10 384TB Capacity Server for Cohesity DataPlatform, 4510 Gen10 ¦ HPE ProLiant DL325 Gen10 Plus V2 Base, DL325 Gen10 Plus V2 Performance, DL345 Gen10 Plus, DL345 Gen10 Plus Base, DL345 Gen10 Plus Entry, DL365 Gen10 Plus, DL380 Gen10 48TB Server for Cohesity DataPlatform, DL380 Gen10 96TB Server for Cohesity DataPlatform, DL385 Gen10 Plus, DL385 Gen10 Plus Entry, DX360 Gen10 Plus, ML350 Gen11 Performance 3, XL170r Gen10 Server for BlueData EPIC, XL190r Gen10, XL190r Gen10 for HPE Ezmeral Container Platform, XL220n Gen10 Plus, XL270d Gen10, XL270d Gen10 for HPE Ezmeral Container Platform, XL290n Gen10 Plus, XL645d Gen10 Plus
Packaged Quantity: 1
Color Category: Black, Green, Silver
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 16Gb Fibre Channel (Short Wave), 32Gb Fibre Channel (Short Wave), 8Gb Fibre Channel (Short Wave)
Cable Type: Fiber-optic
Operating System Required: Microsoft Windows Server 2016 with Hyper-V, Microsoft Windows Server 2019 with Hyper-V, Red Hat Enterprise Linux 7.x, Red Hat Enterprise Linux 8.x, SUSE Linux 12.x, SUSE Linux 15.x, VMware ESX, VMware ESXi 6.5, VMware ESXi 6.7
Features: Auto-negotiation
Connectivity
Port Quantity: 2
Interface Provided: 2 x 32Gb Fibre Channel - LC multi-mode
Network & Adapter Ports: 32Gb Fibre Channel
Host Interface: PCI Express 4.0 x8
Expansion Slots: 2 (total) / 0 (free) x SFP+
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor: Plug-In Card
Low Profile: Low profile
Dimensions and Weight
Height: 4.4 inch
Width: 0.5 inch
Depth: 6.6 inch
Included Items
Included Accessories: 2 x 32Gb SFP+, Low-profile bracket, Standard bracket
Warranty
Limited Warranty: 3 Year
Service & Support Details: Limited warranty - parts - 3 years
