Product Information

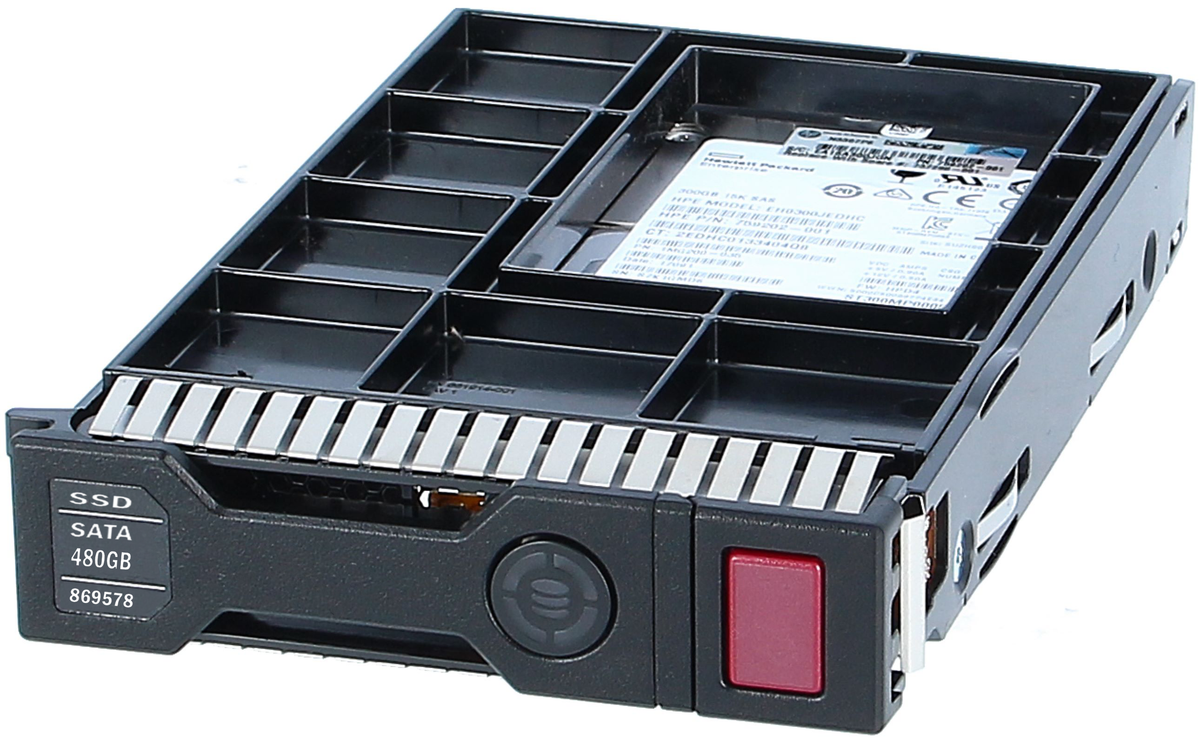

The HPE VK000480GWCNQ-SCC is a 480GB read intensive solid state drive in the 3.5 inch large form factor (LFF) with a 6Gb SATA interface. The drive runs HPE digitally signed firmware. It comes in an HPE Smart Carrier Converter (SCC) for 3.5 inch bays. It is intended for HPE ProLiant Gen9 and Gen10 servers.
Key Features
- 480GB capacity
- SATA 6Gb/s interface
- 3.5 inch LFF
- Read Intensive workload
- Digitally signed firmware
- HPE Smart Carrier Converter (SCC)
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
Specifications
Brand: HPE
MPN: VK000480GWCNQ-SCC
Option Part Number: 869380-B21
Spare Part Number: 869578-001
Model Number: VK000480GWCNQ
Assembly Number: 867213-003
General
Device Type: Solid State Drive - Hot-Swap
Capacity: 480GB
Form Factor: 3.5 inch LFF
Interface: SATA 6Gbps
NAND Flash Memory Type: Multi-level cell (MLC)
Plug Type: Hot Pluggable
Carrier Type: Smart Carrier Converter (SCC)
Workload Type: Read Intensive
Bundled with: HPE SmartDrive Carrier Converter (SCC)
Features: Digitally Signed Firmware (DS)
Platform Supported: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy
Performance
Endurance DWPD (Drive Writes Per Day): 0.5
Drive Transfer Rate: 6 Gbps (external)
MAX Seq. Reads Throughput (MiB/s): 410
MAX Seq. Writes Throughput (MiB/s): 350
Random Read Average Latency uSec (4KiB,Q1): 145
Random Write Average Latency uSec (4KiB,Q1): 75
Random Read IOPS (4KiB, Q=16): 55000
Random Write IOPS (4KiB, Q=16): 15000
MAX Random Read IOPS (4KiB): 59000@Q32
MAX Random Write IOPS (4KiB): 15000@Q4
4KiB Random 70% Read / 30% Write, Queue 32 Performance (IOPS) VI-1: 30000
4KiB Random 50% Read / 50% Write, Queue 32 Performance (IOPS) VI-2: 23500
Expansion & Connectivity
Interfaces: 1 x SATA 6 Gb/s
Compatible Bay: 3.5" LFF Power Consumption Idle Time: 0.67 Watt
Random Read: 2.44 Watt
Random Write: 2.44 Watt
Sequential Read: 2.91 Watt
Sequential Write: 3.33 Watt
Random Read/Write: 2.44 Watt
MAX: 3.33 Watt
Compatible Systems
- HPE ProLiant DL Series: DL60 (Gen10) DL80 (Gen10) DL160 (Gen10) DL360 (Gen10) DL380 (Gen10) DL385 (Gen10) DL388 (Gen10) DL560 (Gen10) DL20 (Gen9) DL60 (Gen9) DL80 (Gen9) DL120 (Gen8 Gen9) DL160 (Gen8 Gen9) DL180 (Gen8 Gen9) DL320e (Gen8 Gen9) DL360e (Gen8 Gen9) DL360p (Gen8 Gen9) DL380e (Gen8 Gen9) DL380p (Gen8 Gen9) DL388 (Gen8 Gen9) DL560 (Gen8 Gen9)
- HPE ProLiant ML Series: ML350 (Gen10) ML110 (Gen8 Gen9) ML150 (Gen8 Gen9) ML310e (Gen8 Gen9) ML350 (Gen8 Gen9) ML350e (Gen8 Gen9)
- HPE ProLiant BL Series: BL420c (Gen8 Gen9) BL460c (Gen8 Gen9) BL465c (Gen8 Gen9)
- HPE ProLiant SL Series: SL200t (Gen8 Gen9) SL230s (Gen8 Gen9) SL250s (Gen8 Gen9) SL2500 SL4550 (Gen8 Gen9) SL4545 (Gen8 Gen9) SL454x
- HPE Storage Arrays: D3600 D3700
- HPE StoreEasy: 1430 1440 1530 1540 1630 1640
Not sure this drive fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
