Product Information

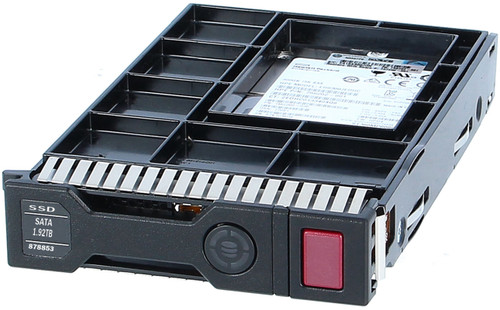

The HPE VK001920GWJPH-SCC is a 1.92TB read intensive solid state drive in the 3.5 inch large form factor (LFF) with a 6Gb SATA interface. The drive runs HPE digitally signed firmware. It comes in an HPE Smart Carrier Converter (SCC) for 3.5 inch bays. It is intended for HPE ProLiant Gen9 and Gen10 servers.
Key Features
- 1.92TB capacity
- SATA 6Gb/s interface
- 3.5 inch LFF
- Read Intensive workload
- Digitally signed firmware
- HPE Smart Carrier Converter (SCC)
Condition: New Bulk Pack
Warranty: 90 Days Warranty
Specifications
Brand: HPE
MPN: VK001920GWJPH-SCC
Option Part Number: 877760-B21
Spare Part Number: 878853-001
Model Number: VK001920GWJPH
Assembly Number: 877013-004
General
Device Type: Solid State Drive - Hot-Swap
Capacity: 1.92 TB
Form Factor: 3.5 inch LFF
Interface: SATA-6Gbps
NAND Flash Memory Type: Triple-Level Cell (TLC)
Features: Digitally Signed Firmware
Carrier Type: Smart Carrier Converter
Plug Type: Hot Plug
Workload Type: Read Intensive
Bundled With: HPE Smart Carrier Converter
Platform Supported: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy
Height: 7 mm Performance 30 Days Writes: 3270
Endurance DWPD (Drive Writes Per Day): 1
Drive Transfer Rate: 6 Gb/sec (external)
MAX Seq Reads Throughput (MiB/s): 500
Max Seq Writes Throughput (MiB/s): 445
Random Read Avg. Latency uSec (4KiB,Q1): 120
Random Write Avg. Latency uSec (4KiB,Q1): 60
Random Read IOPS (4KiB, Q=16): 57000
Random Write IOPS (4KiB, Q=16): 31000
Max Random Read IOPS (4KiB): 64000@Q32
Max Random Write IOPS (4KiB): 31000@Q16
4KiB Random 70% Read / 30% Write, Queue 32 Performance (IOPS) VI-1: 46000
4KiB Random 50% Read / 50% Write, Queue 32 Performance (IOPS) VI-1: 41000
Expansion & Connectivity
Interfaces: 1 x SATA 6Gb/s
Compatible Bay: 3.5" LFF Power Consumption Idle Time: 1.29 Watt
Random Read: 2.77 Watt
Random Write: 5.23 Watt
Sequential Read: 2.35 Watt
Sequential Write: 4.86 Watt
Random Read/Write: 4.10 Watt
Maximum: 6.00 Watt
Compatible Systems
- HPE ProLiant DL Series: DL60 (Gen10) DL80 (Gen10) DL160 (Gen10) DL360 (Gen10) DL380 (Gen10) DL385 (Gen10) DL388 (Gen10) DL560 (Gen10) DL20 (Gen9) DL60 (Gen9) DL80 (Gen9) DL120 (Gen8 Gen9) DL160 (Gen8 Gen9) DL180 (Gen8 Gen9) DL320e (Gen8 Gen9) DL360e (Gen8 Gen9) DL360p (Gen8 Gen9) (Gen8 Gen9) DL380p (Gen8 Gen9) DL388 (Gen8 Gen9) DL560 (Gen8 Gen9)
- HPE ProLiant ML Series: ML350 (Gen10) ML110 (Gen8 Gen9) ML150 (Gen8 Gen9) ML310e (Gen8 Gen9) ML350 (Gen8 Gen9) ML350e (Gen8 Gen9)
- HPE ProLiant BL Series: ProLiant BL420c (Gen8 Gen9) BL460c (Gen8 Gen9) BL465c (Gen8 Gen9)
- HPE ProLiant SL Series: SL200t (Gen8 Gen9) SL230s (Gen8 Gen9) SL250s (Gen8 Gen9) SL2500 SL4550 (Gen8 Gen9) SL4545 (Gen8 Gen9) SL454x
- HPE Storage Arrays: D3600 D3700
- HPE StoreEasy: 1430 1440 1530 1540 1630 1640 1660
Not sure this drive fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
