Product Information

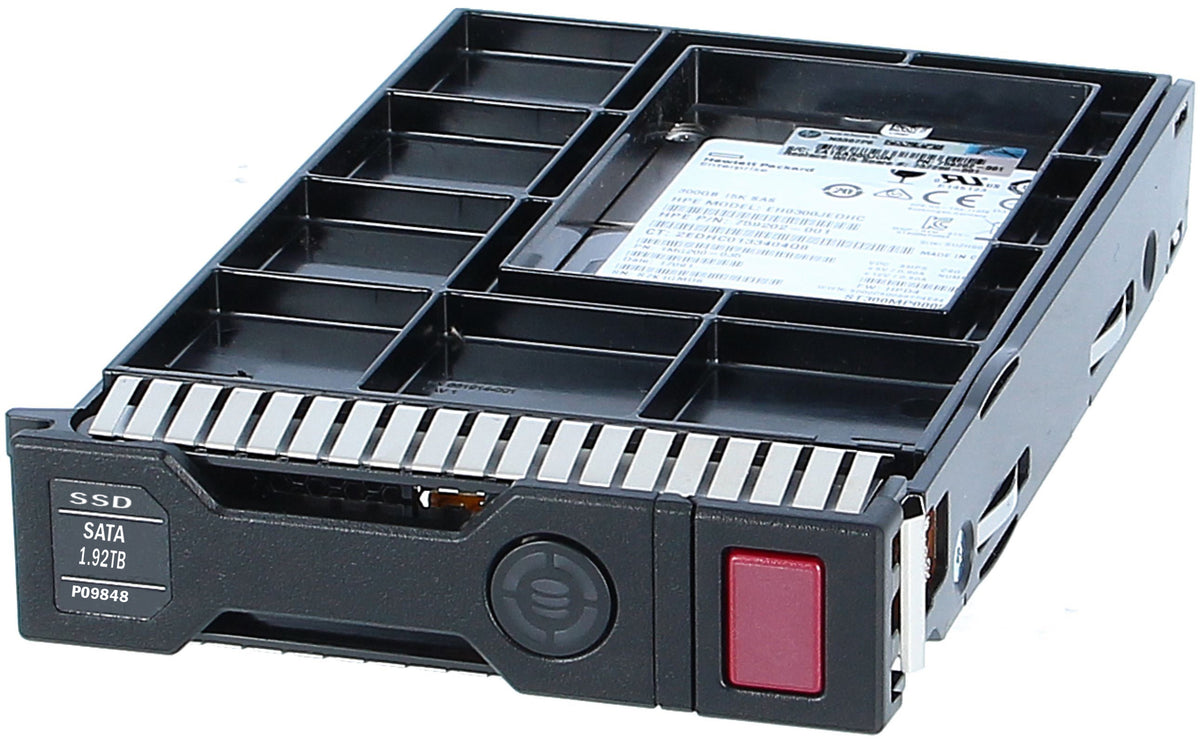

The HPE VK001920GWSRU-SCC is a 1.92TB read intensive solid state drive in the 3.5 inch large form factor (LFF) with a 6Gb SATA interface. The drive runs HPE digitally signed firmware. It comes in an HPE Smart Carrier Converter (SCC) for 3.5 inch bays. It is intended for HPE ProLiant Gen9 and Gen10 servers.
Key Features
- 1.92TB capacity
- SATA 6Gb/s interface
- 3.5 inch LFF
- Read Intensive workload
- Digitally signed firmware
- HPE Smart Carrier Converter (SCC)
Condition: New Bulk Pack
Warranty: 90 Days Warranty
Specifications
Brand: HPE
MPN: VK001920GWSRU-SCC
Option Part Number: P09693-B21
Spare Part Number: P09848-001
Model Number: VK001920GWSRU
Assembly Number: P02760-004
General
Device Type: Solid State Drive - Hot-Swap
Capacity: 1.92 TB
Form Factor: 3.5 inch LFF
Interface: SATA-6Gbps
Features: Digitally Signed Firmware
Carrier Type: Smart Carrier Converter
Plug Type: Hot Plug
Workload Type: Read Intensive
Bundled With: HPE Smart Carrier Converter
Performance
Drive Transfer Rate: 6 Gb/sec (external)
30 Days Writes(TB): 2400
Endurance DWPD: 0.8
4KB Random Read IOPS: 64000
4KB Random Write IOPS: 30000
Maximum 4KB Random Write IOPS: 30000
Maximum 4KB Random Read IOPS: 73000
Expansion & Connectivity
Interfaces: 1 x SATA 6Gb/s
Compatible Bay: 3.5" LFF Dimension and Weight
Width: 5.75 inch (14.61 cm)
Depth: 10 inch (25.4 cm)
Height: 8.63 inch (21.92 cm)
Weight: 3 lbs (1.36 kg) Power Consumption Maximum: 2.65 Watt
Random Read: 2.22 Watt
Random Write: 2.22 Watt
Sequential Read: 1.78 Watt
Sequential Write: 2.65 Watt
Compatible Systems
- HPE ProLiant DL Series:
- HPE ProLiant DL325 Gen10 (3.5inch), DL325 Gen10 Entry (3.5inch), DL325 Gen10 Performance (3.5inch), DL325 Gen10 SMB Solution (3.5inch), DL360 Gen10 (3.5inch), DL360 Gen10 Base (3.5inch), DL360 Gen10 Entry (3.5inch), DL360 Gen10 High Performance (3.5inch), DL360 Gen10 Low (3.5inch), DL360 Gen10 Performance (3.5inch), DL360 Gen10 Solution (3.5inch), DL360 Gen9 (3.5inch), DL360 Gen9 Base (3.5inch), DL360 Gen9 CMS (3.5inch), DL360 Gen9 Entry (3.5inch), DL360 Gen9 Performance (3.5inch), DL360 Gen9 Special Server (3.5inch), DL380 Gen10 (3.5inch), DL380 Gen10 Base (3.5inch), DL380 Gen10 Entry (3.5inch), DL380 Gen10 High Performance (3.5inch), DL380 Gen10 Performance (3.5inch), DL380 Gen10 Solution (3.5inch), DL380 Gen9 (3.5inch), DL380 Gen9 Base (3.5inch), DL380 Gen9 Entry (3.5inch), DL380 Gen9 High Performance (3.5inch), DL380 Gen9 Performance (3.5inch), DL380 Gen9 Scale-up SAP HANA Tailored Datacenter Integration Compute Block (3.5inch), DL380 Gen9 Special (3.5inch), DL385 Gen10 (3.5inch), DL385 Gen10 Base (3.5inch), DL385 Gen10 Entry (3.5inch), DL385 Gen10 High-Performance (3.5inch), DL385 Gen10 High-Performance (3.5inch), DL385 Gen10 Performance (3.5inch), DL385 Gen10 Solution (3.5inch)
- HPE ProLiant ML Series: ML30 Gen9 (3.5inch), ML30 Gen9 Base (3.5inch), ML30 Gen9 Entry (3.5inch), ML30 Gen9 Performance (3.5inch), ML30 Gen9 Solution (3.5inch)
Not sure this drive fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
